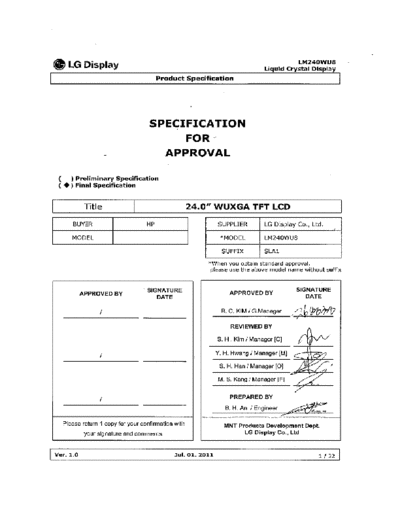

Image preview - the first page of the document

>> Download Panel_LG_Display_LM240WU8-SLA1_0_[DS] documenatation <<

Text preview - extract from the document

LM240WU8
Liquid Crystal Display
Product Specification

SPECIFICATION
FOR
APPROVAL

( ) Preliminary Specification
( ) Final Specification

Title 24.0" WUXGA TFT LCD

BUYER HP SUPPLIER LG Display Co., Ltd.

MODEL *MODEL LM240WU8

SUFFIX SLA1

*When you obtain standard approval,
please use the above model name without suffix

SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE

/ B. C. KIM / G.Manager

REVIEWED BY

S. H . Kim / Manager [C]

/ Y. H. Hwang / Manager [M]

S. H. Han / Manager [O]

M. S. Kang / Manager [P]

/ PREPARED BY
B. H. An / Engineer

Please return 1 copy for your confirmation with MNT Products Development Dept.
your signature and comments. LG Display Co., Ltd

Ver. 1.1 Jul. 20. 2011 1 / 32
LM240WU8
Liquid Crystal Display
Product Specification

Contents

No ITEM Page
COVER 1

CONTENTS 2

RECORD OF REVISIONS 3

1 GENERAL DESCRIPTION 4

2 ABSOLUTE MAXIMUM RATINGS 5

3 ELECTRICAL SPECIFICATIONS 6

1) ELECTRICAL CHARACTERISTICS 6

2) INTERFACE CONNECTIONS 8
3) LVDS characteristics 11
4) SIGNAL TIMING SPECIFICATIONS 14

5) SIGNAL TIMING WAVEFORMS 15

6) COLOR INPUT DATA REFERNECE 16

7) POWER SEQUENCE 17

8) POWER DIP CONDITION 18

4 OPTICAL SPECIFICATIONS 19

5 MECHANICAL CHARACTERISTICS 25

6 RELIABILITY 28

7 INTERNATIONAL STANDARDS 29

1) SAFETY 29
2) EMC 29
3) ENVIRONMENT 27
8 PACKING 30

1) DESIGNATION OF LOT MARK 30

2) PACKING FORM 30

9 PRECAUTIONS 31

1) MOUNTING PRECAUTIONS 31

2) OPERATING PRECAUTIONS 31

3) ELECTROSTATIC DISCHARGE CONTROL 32

4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 32

5) STROAGE 32

6) HANDLING PRECAUTIONS FOR PROTECTION FILM 32

Ver. 1.1 Jul. 20. 2011 2 / 32
LM240WU8
Liquid Crystal Display
Product Specification

Record of revisions

Revision
Revision Date Page Description
No.
0.0 Dec. 15. 2010 - Preliminary Specifications

0.1 Mar. 07. 2011 4 Updated the General Features

6 Updated the Electrical characteristics

7 Updated LED Bar Electrical characteristics

19 Updated the Optical characteristics

Updated the Surface Luminance Spec Measurement pint
0.2 Jun. 27. 2011 20
( 5 point avg center 1 point )

27 Update rear side drawing. (LCM Label Position changed)

1.0 Jul. 01. 2011 Final Specification

1.1 Jul. 20. 2011 28 Updated Altitude Specifications

Ver. 1.1 Jul. 20. 2011 3 / 32
LM240WU8
Liquid Crystal Display
Product Specification

1. General description
LM240WU8 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type
display operating in the normally white mode. It has a 24 inch diagonally measured active display area with
WUXGA resolution (1200 vertical by 1920 horizontal pixel array). Each pixel is divided into Red, Green and
Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color
is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16,7M colors
with Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method that enables low
power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage Differential
Signaling) chip. It is intended to support applications where thin thickness, wide viewing angle, low power are
critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-
pixels, the LM240WU8's characteristics provide an excellent flat panel display for office automation products
such as monitors.

RGB
FIG. 1 Block diagram
Source driver circuit
S1 S1920
LVDS G1
pair #1 Timing
LVDS controller
CN1 pair #2 TFT-LCD Panel
(30pin) (1920
