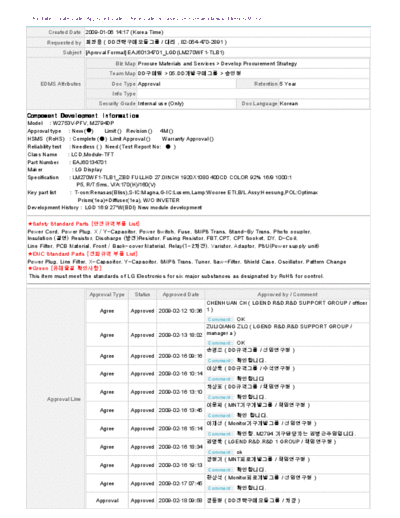

Image preview - the first page of the document
![Panel_LG_Display_LM270WF1-TLB1_1_[DS]](/pics/5eafd47e4e064.gif)
>> Download Panel_LG_Display_LM270WF1-TLB1_1_[DS] documenatation <<
Text preview - extract from the document
* The date(Create Date, Approved Date, Check Date) is based on Korean standard time(GMT+9)
Created Date 2009-01-06 14:17 (Korea Time)
Requested by ( DD / , 82-054-470-2891 )
Subject [Aproval Formal] EAJ60134701_LGD(LM270WF1-TLB1)
Biz Map Procure Materials and Services > Develop Procurement Strategy
Team Map DD > 05.DD >
EDMS Attributes Doc Type Approval Retention 5 Year
Info Type
Security Grade Internal use (Only) Doc Language Korean
Component Development Information
Model : W2753V-PFV, M2794DP
Approval type : New () Limit () Revision () 4M ()
HSMS (RoHS) : Complete () Limit Approval () Warranty Approval ()
Reliability test : Needless ( ) Need (Test Report No: )
Class Name : LCD,Module-TFT
Part Number : EAJ60134701
Maker : LG Display
Specification : LM270WF1-TLB1_ZBD FULLHD 27.0INCH 1920X1080 400CD COLOR 92% 16/9 1000:1
P5, R/T:5ms, V/A:170(H)/160(V)
Key part list : T-con:Renasas(Bliss),S-IC:Magna,G-IC:Lusem,Lamp:Wooree ETI,B/L Assy:Heesung,POL:Optimax
Prism(1ea)+Diffuser(1ea), W/O INVETER
Development History : LGD 16:9 27"W(BDI) New module development
Safety Standard Parts [ List]
Power Cord, Power Plug, X / Y-Capacitor, Power Switch, Fuse, SMPS Trans, Stand-By Trans, Photo coupler,
Insulation () Resistor, Discharge ()Resistor, Fusing Resistor, FBT,CPT, CPT Socket, DY, D-Coil,
Line Filter, PCB Material, Front / Back-cover Material, Relay(1-2), Varistor, Adaptor, PSU(Power supply unit)
EMC Standard Parts [ List]
Power Plug, Line Filter, X-Capacitor, Y-Capacitor, SMPS Trans, Tuner, Saw-Filter, Shield Case, Oscillator, Pattern Change
Green [ ]
This item must meet the standards of LG Electronics for six major substances as designated by RoHS for control.
Approval Type Status Approved Date Approved by / Comment
CHENHUAN CH ( LGEND R&D.R&D SUPPORT GROUP / officer
Agree Approved 2009-02-12 10:36 1 )
Comment : OK
ZULIQIANG ZLQ ( LGEND R&D.R&D SUPPORT GROUP /
Agree Approved 2009-02-13 18:02 manager a )
Comment : OK
( DD / )
Agree Approved 2009-02-16 09:16
Comment : .
( DD / )
Agree Approved 2009-02-16 10:14
Comment :
( DD / )
Agree Approved 2009-02-16 13:10
Approval Line Comment : .
( MNT / )
Agree Approved 2009-02-16 13:45
Comment : .
( Monitor / )
Agree Approved 2009-02-16 15:14
Comment : . M2794 .
( LGEND R&D.R&D 1 GROUP / )
Agree Approved 2009-02-16 18:34
Comment : ok
( MNT / )
Agree Approved 2009-02-16 19:13
Comment : .
( Monitor / )
Agree Approved 2009-02-17 07:45
Comment : .
Approval Approved 2009-02-18 09:58 ( DD / )
Comment : .
( BS ModuleSourcing / )
Approval Approved 2009-02-18 11:53
Comment : ok
( MNT R&D / )
( DD / )
( BS / )
( DD / )
( MNT R&D / )
( DD / )
( Display / )
( MNT R&D / )
( BS / )
( MNT R&D / )
( MNT R&D / )
( LGEND R&D.R&D 1 GROUP / )
( LGEND / )
( LGEND R&D.R&D 2 GROUP / )
CC ( Display / )
( LGEND R&D.R&D 1 GROUP / )
( DD / )
( Display / )
( Display / )
CAIYUTAO CYT ( LGEND PRODUCTION.PRODUCTION ENGINEERING GROUP / Operator2 )
LIZHENG LZ ( LGEND R&D.MECHANIC GROUP / assist manager )
ZHANGCHENGXIANG ZCX ( LGEND PRODUCTION.MANUFACTURING GROUP / Operator3 )
KANGHUI KH ( LGEND R&D.R&D 2 GROUP / assist manager )
LIJING LJ ( LGEND R&D.R&D 1 GROUP / officer 1 )
YUANSU YS ( LGEND R&D.R&D SUPPORT GROUP / officer 1 )
QINGYONG QY ( LGEND R&D.R&D SUPPORT GROUP / officer 1 )
SONGDESHOU SDS ( LGEND R&D.MECHANIC GROUP / officer 1 )
GAOXIDONG GXD ( LGEND R&D.R&D 1 GROUP / officer 1 )
CHENWEI CW ( LGEND R&D.R&D 1 GROUP / officer 1 )
( Display / )
EDMS Doc Link
EAJ60134701(LM270WF1-TLB1) LGD test Report.zip
LM270WF1-TLB1_LGE_CAS_Ver 1.2_090204.pdf
EAJ60134701(LM270WF1-TLB1) IIS Spec.pdf
Attached Local Files
EAJ60134701(LM270WF1-TLB1) TCO03 Report.pdf
EAJ60134701(LM270WF1-TLB1) Safety Document .zip
EAJ60134701(LM270WF1-TLB1) Key part, Module Comparison.zip
LM270WF1
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 27" Full HD TFT LCD
BUYER LG Electronics SUPPLIER LG. Display Co., Ltd.
MODEL *MODEL LM270WF1
SUFFIX TLB1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ H.S. Kim / G.Manager
REVIEWED BY
/ D.I. Chung / Manager
PREPARED BY
/ K.H. Lee / Engineer
Please return 1 copy for your confirmation with MNT Products Engineering Dept.
your signature and comments. LG. Display LCD Co., Ltd
Ver 1.2 Feb, 04, 2009 1 / 32
LM270WF1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 12
3-4 SIGNAL TIMING WAVEFORMS 13
3-5 COLOR INPUT DATA REFERNECE 14
3-6 POWER SEQUENCE 15
4 OPTICAL SFECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 23
6 RELIABLITY 26
7 INTERNATIONAL STANDARDS 27
7-1 SAFETY 27
7-2 EMC 27
8 PACKING 28
8-1 DESIGNATION OF LOT MARK 28
8-2 PACKING FORM 28
9 PRECAUTIONS 29
Ver 1.2 Feb, 04, 2009 2 / 32
LM270WF1
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision
Revision Date Page Description
No
0.0 Oct. 1. 2008 - First Draft(Preliminary)
0.1 Oct. 15. 2008 4,6 Power consumption is updated.
Notes 6 is added
10
"On status of MPRT is support dynamic image."
16 Signal Timing specification is changed.
Skew specification is updated.
0.2 Nov.1.2008 12
Skew : 350ps @85~90Mhz
1.0 Dec. 11. 2008 Final Specifications
Addedthe noted 5
16
5. BDI on status : Vsync opearte at 60hz
1.1 Jan.16..2009 19 T7 Timing Specification is changed from 500ms to 300ms.
1.2 Feb. 4. 2009 20 Add the Viewing angle specification at CR>5
Ver 1.2 Feb, 04, 2009 3 / 32
LM270WF1
Liquid Crystal Display
Product Specification
1. General Description
LM270WF1 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system without inverter. The matrix employs a-Si Thin Film Transistor as the active
element. It is a transmissive type display operating in the normally black mode. It has a 27 inch diagonally
measured active display area with Full HD resolution (1080 vertical by 1920 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16,7M colors with Advanced-FRC (Frame Rate Control). . It has
been designed to apply the interface method that enables low power, high speed, low EMI. FPD Link or
compatible must be used as a LVDS (Low Voltage Differential Signaling) chip. It is intended to support
applications where thin thickness, wide viewing angle, low power are critical factors and graphic displays are
important. It is intended to support displays where high brightness, super wide viewing angle,
high color saturation, and high color are important.
Source Driver Circuit
RGB, Dclk, DE Timing Control
Hsync, Vsync S1 S1920
CN1 Block
(LVDS 2 port) (30pin)
G1
Gate Driver circuit
VLCD(12.0V)
TFT-LCD Panel
Power Circuit Block (1920 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
