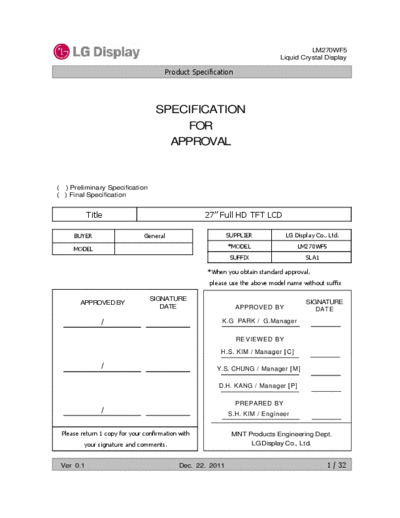

Image preview - the first page of the document
![Panel_LG_Display_LM270WF5-SLA1_0_[DS]](/pics/5eafd4e017563.gif)
>> Download Panel_LG_Display_LM270WF5-SLA1_0_[DS] documenatation <<
Text preview - extract from the document
LM270WF5
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 27" Full HD TFT LCD
BUYER General SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LM270WF5
SUFFIX SLA1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE
APPROVED BY SIGNATURE
DATE APPROVED BY DATE
/ K.G PARK / G.Manager
REVIEWED BY
H.S. KIM / Manager [C]
/ Y.S. CHUNG / Manager [M]
D.H. KANG / Manager [P]
PREPARED BY
/
S.H. KIM / Engineer
g
Please return 1 copy for your confirmation with MNT Products Engineering Dept.
your signature and comments. LG Display Co., Ltd.
Ver 0.1 Dec. 22. 2011 1 / 32
LM270WF5
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 9
3) SIGNAL TIMING SPECIFICATIONS 14
4) SIGNAL TIMING WAVEFORMS 15
5) COLOR INPUT DATA REFERNECE 16
6) POWER SEQUENCE 17
7) POWER DIP CONDITION 18
4 OPTICAL SPECIFICATIONS 19
5 MECHANICAL CHARACTERISTICS 25
6 RELIABILITY 28
7 INTERNATIONAL STANDARDS 29
1) SAFETY 29
2) EMC 29
3) Environment 29
8 PACKING 30
1) DESIGNATION OF LOT MARK 30
2) PACKING FORM 30
9 PRECAUTIONS 31
1) MOUNTING PRECAUTIONS 31
2) OPERATING PRECAUTIONS 31
3) ELECTROSTATIC DISCHARGE CONTROL 32
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 32
5) STROAGE 32
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 32
Ver 0.1 Dec. 22. 2011 2 / 32
LM270WF5
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision
Revision Date Page Description
No
0.1 Dec. 22. 2011 - First Draft(Preliminary)
Ver 0.1 Dec. 22. 2011 3 / 32
LM270WF5
Liquid Crystal Display
Product Specification
1. General Description
LM270WF5-SLA1 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (White LED)
q y p y g g g ( )
backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type
display operating in the normally white mode. It has a 27 inch diagonally measured active display area with Full
HD resolution (1080 vertical by 1920 horizontal pixel array) Each pixel is divided into Red, Green and Blue sub-
pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16,7M colors with
Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method that enables low power,
high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage Differential Signaling) chip. It
is intended to support applications where thin thickness, wide viewing angle, low power are critical factors and
graphic displays are important. It is intended to support displays where high brightness, super wide viewing angle,
high color saturation, and high color are important.
Source Driver Circuit
RGB, Dclk, DE Timing Control
Hsync, Vsync S1 S1920
CN1 Block
(LVDS 2 port) (30pin)
G1
VLCD(5.0V)
TFT-LCD Panel
Power Circuit Block (1920 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
