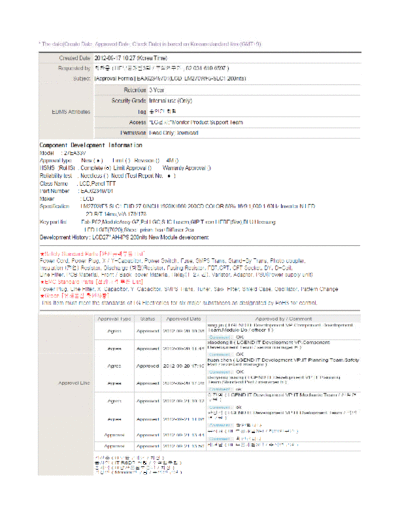

Image preview - the first page of the document
![Panel_LG_Display_LM270WF5-SLC1_0_[DS]](/pics/5eafd5262ffeb.gif)
>> Download Panel_LG_Display_LM270WF5-SLC1_0_[DS] documenatation <<
Text preview - extract from the document
LM270WF5
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
() Final Specification
Title 27" Full HD TFT LCD
BUYER LGE SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LM270WF5
SUFFIX SLC1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE APPROVED BY
APPROVED BY DATE
DATE
C.K. Lee / G.Manager
/
REVIEWED BY
D.G. Kim / Manager [C]
Y.S. Chung / Manager [M]
/
D.H. Kang / Manager [P]
J.Y. Mun / Manager [O]
PREPARED BY
/ S.Y. Kim / Engineer
Please return 1 copy for your confirmation with MNT Products Engineering Dept.
your signature and comments. LG Display Co., Ltd.
Ver 1.0 Sep. 05. 2012 1 / 34
LM270WF5
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 9
3) SIGNAL TIMING SPECIFICATIONS 14
4) SIGNAL TIMING WAVEFORMS 15
5) COLOR INPUT DATA REFERNECE 16
6) POWER SEQUENCE 17
7) POWER DIP CONDITION 18
4 OPTICAL SPECIFICATIONS 19
5 MECHANICAL CHARACTERISTICS 27
6 RELIABILITY 30
7 INTERNATIONAL STANDARDS 31
1) SAFETY 31
2) EMC 31
3) Environment 31
8 PACKING 32
1) DESIGNATION OF LOT MARK 32
2) PACKING FORM 32
9 PRECAUTIONS 33
1) MOUNTING PRECAUTIONS 33
2) OPERATING PRECAUTIONS 33
3) ELECTROSTATIC DISCHARGE CONTROL 34
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 34
5) STROAGE 34
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 34
Ver 1.0 Sep. 05. 2012 2 / 34
LM270WF5
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision
Revision Date Page Description
No
0.0 Jun. 08. 2012 - First Draft (Preliminary)
0.1 Aug. 16. 2012 19 Update Color Coordinates
1.0 Sep. 05. 2012 - Final CAS
8 Change max LED string current (130mA 125mA)
Ver 1.0 Sep. 05. 2012 3 / 34
LM270WF5
Liquid Crystal Display
Product Specification
1. General Description
LM270WF5-SLC1 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (White LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type
display operating in the normally white mode. It has a 27 inch diagonally measured active display area with Full
HD resolution (1080 vertical by 1920 horizontal pixel array) Each pixel is divided into Red, Green and Blue sub-
pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16,7M colors with
Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method that enables low power,
high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage Differential Signaling) chip. It
is intended to support applications where thin thickness, wide viewing angle, low power are critical factors and
graphic displays are important. It is intended to support displays where high brightness, super wide viewing angle,
high color saturation, and high color are important.
Source Driver Circuit
RGB, Dclk, DE Timing Control
Hsync, Vsync S1 S1920
CN1 Block
(LVDS 2 port) (30pin)
G1
VLCD(5.0V)
TFT-LCD Panel
Power Circuit Block (1920 1080 pixels)
G1080
VLED (3ch) Back light System (White LED)
Figure 1. Block diagram
General Features
Active Screen Size 27 inches(68.6cm) diagonal
Outline Dimension 630.0(H) x 368.2(V) x 11.7(D) mm(Typ.)
Pixel Pitch 0.3114 mm x 0.3114 mm
Pixel Format 1920 horiz. By 1080 vert. Pixels RGB stripes arrangement
Color Depth 16.7M colors
Luminance, White 200 cd/m2 (Center 1 point)
Viewing Angle(CR>10) View Angle Free (R/L 178(Typ.), U/D 178(Typ.))
Power Consumption Total 19.73 Watt (Typ.) (3.83 Watt @ VLCD, 15.9 Watt @200cd/)
Weight 3,215g(Typ.)
Display Operating Mode Transmissive mode, normally Black
Surface Treatment Hard coating(3H) & Anti-Glare treatment of the front polarizer
Ver 1.0 Sep. 05. 2012 4 / 34
LM270WF5
Liquid Crystal Display
Product Specification
2. Absolute maximum ratings
The following are maximum values which, if exceeded,
may cause faulty operation or damage to the unit.
Table 1. Absolute maximum ratings
Values
Parameter Symbol Units Notes
Min Max
Power Supply Input Voltage VLCD -0.3 +5.5 Vdc At 25
