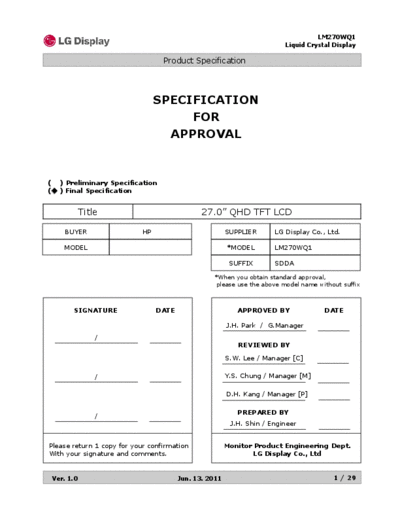

Image preview - the first page of the document
![Panel_LG_Display_LM270WQ1-SDDA_1_[DS]](/pics/5eafd5ee77c59.gif)
>> Download Panel_LG_Display_LM270WQ1-SDDA_1_[DS] documenatation <<
Text preview - extract from the document
LM270WQ1
Liquid Crystal Display
Product Specification
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 27.0" QHD TFT LCD
BUYER HP SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LM270WQ1
SUFFIX SDDA
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE DATE APPROVED BY DATE
J.H. Park / G.Manager
/
REVIEWED BY
S.W. Lee / Manager [C]
/ Y.S. Chung / Manager [M]
D.H. Kang / Manager [P]
PREPARED BY
/
J.H. Shin / Engineer
Please return 1 copy for your confirmation Monitor Product Engineering Dept.
With your signature and comments. LG Display Co., Ltd
Ver. 1.0 Jun. 13. 2011 1 / 29
LM270WQ1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 9
3-3 SIGNAL TIMING SPECIFICATIONS 11
3-4 SIGNAL TIMING WAVEFORMS 12
3-5 COLOR INPUT DATA REFERNECE 13
3-6 POWER SEQUENCE 14
4 OPTICAL SFECIFICATIONS 16
5 MECHANICAL CHARACTERISTICS 22
6 RELIABLITY 25
7 INTERNATIONAL STANDARDS 26
7-1 SAFETY 26
7-2 EMC 26
7-3 ENVIRONMENT 30
8 PACKING 27
8-1 DESIGNATION OF LOT MARK 27
8-2 PACKING FORM 27
9 PRECAUTIONS 28
9-1 MOUNTING PRECAUTIONS 28
9-2 OPERATING PRECAUTIONS 28
9-3 ELECTROSTATIC DISCHARGE CONTROL 29
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 29
9-5 STORAGE 29
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 29
Ver. 1.0 Jun. 13. 2011 2 / 29
LM270WQ1
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revisio
Revision Date Page Description
n No
0.0 Aug. 10. 2010 - First Draft(Preliminary)
0.1 Sep. 13. 2010 6 Preliminary (Updated Power content)
4,6,8,22 Updated Power Consumption & Weight
Deleted #1(DDC_SCL),#2(DDC_SDA) of module
9 pinmap(CN1)
because EDID is mounted on system
0.2 Oct. 18. 2010
Updated Mechanical Drawing
-Specified LED wire length, COF location
23,24
-Corrected numerical error and added tolerance
-Removed the case-top bottom tape
Deleted EEPROM for EDID on the block diagram
4
0.3 Dec. 06. 2010 Updated Total Power Consumption (Max.)
8 Updated LED Bar Electrical Characteristics (Min, Max Spec)
Back to original pinmap for #1(DDC_SCL),#2(DDC_SDA) of
9
0.4 Mar. 23. 2011 module pinmap(CN1)
27 Updated lot mark for year
0.5 May. 17. 2011 23 Update Front View
1.0 Jun. 13. 2011 Final Specifications.
Ver. 1.0 Jun. 13. 2011 3 / 29
LM270WQ1
Liquid Crystal Display
Product Specification
1. General Description
LM270WQHD is a Color Active Matrix Liquid Crystal Display with Light Emitting Diode ( White LED) backlight
system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 27inch diagonally measured
a cti ve di spla y a re a w ith Q H D re sol utio n ( 2 5 6 0 ve r tica l b y 1 4 4 0 hori zo n ta l pixe l a r ra y)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 10-bit gray scale signal for each dot,
thus, presenting a palette of more than 1.07B colors with FRC (Frame Rate Control).
It has been designed to apply the 10-bit 4Lane Display port interface.
It is intended to support displays where high brightness, super wide viewing angle,
high color saturation, and high color are important.
Mini-LVDS (RGB)
Flash
Source Driver Circuit
memory
SPI
S1 S2560
Main Link
4 Lane CN1 Timing
AUX CH (30pin)
Controller
HPD TFT - LCD Panel
