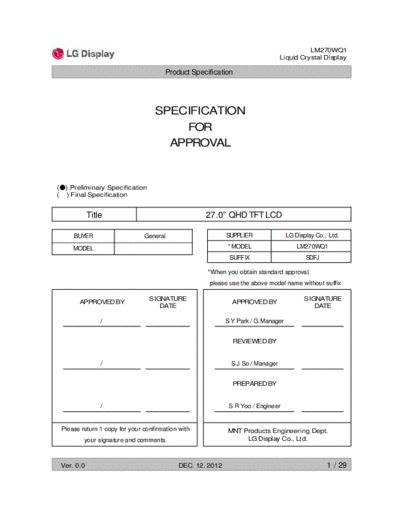

Image preview - the first page of the document
![Panel_LG_Display_LM270WQ1-SDFJ_0_[DS]](/pics/5eafd68b1f649.gif)
>> Download Panel_LG_Display_LM270WQ1-SDFJ_0_[DS] documenatation <<
Text preview - extract from the document
LM270WQ1
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
() Preliminary Specification
( ) Final Specification
Title 27.0" QHD TFT LCD
BUYER General SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LM270WQ1
SUFFIX SDFJ
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ S Y Park / G.Manager
REVIEWED BY
/ S J So / Manager
PREPARED BY
/ S R Yoo / Engineer
Please return 1 copy for your confirmation with MNT Products Engineering Dept.
your signature and comments. LG Display Co., Ltd.
Ver. 0.0 DEC. 12. 2012 1 / 29
LM270WQ1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 11
3-4 SIGNAL TIMING WAVEFORMS 12
3-5 COLOR INPUT DATA REFERNECE 13
3-6 POWER SEQUENCE 14
4 OPTICAL SFECIFICATIONS 16
5 MECHANICAL CHARACTERISTICS 22
6 RELIABLITY 25
7 INTERNATIONAL STANDARDS 26
7-1 SAFETY 26
7-2 EMC 26
7-3 ENVIRONMENT 26
8 PACKING 27
8-1 DESIGNATION OF LOT MARK 27
8-2 PACKING FORM 27
9 PRECAUTIONS 28
9-1 MOUNTING PRECAUTIONS 28
9-2 OPERATING PRECAUTIONS 28
9-3 ELECTROSTATIC DISCHARGE CONTROL 29
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 29
9-5 STORAGE 29
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 29
Ver. 0.0 DEC. 12. 2012 2 / 29
LM270WQ1
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision
Revision Date Page Description
No
0.0 Dec. 17. 2012 - First Draft (Preliminary)
Ver. 0.0 DEC. 12. 2012 3 / 29
LM270WQ1
Liquid Crystal Display
Product Specification
1. General Description
LM270WQ1 is a Color Active Matrix Liquid Crystal Display with Light Emitting Diode ( White LED) backlight
system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 27inch diagonally measured
a c t i ve dis pla y a re a w i t h Q H D r e s o l u t io n ( 2 5 6 0 v e r t i ca l b y 1 4 4 0 h o ri zo n t a l pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 10-bit gray scale signal for each dot,
thus, presenting a palette of more than 1.07B colors with FRC (Frame Rate Control).
It has been designed to apply the 10-bit 4Lane Display port interface.
It is intended to support displays where high brightness, super wide viewing angle,
high color saturation, and high color are important.
Mini-LVDS (RGB)
Flash EEPROM
Source Driver Circuit
memory (EDID)
SPI I2C
S1 S2560
G1
Main Link
4 Lane CN1 Timing
Gate Driver Circuit
AUX CH (40pin)
Controller
HPD TFT - LCD Panel
Logic Power
