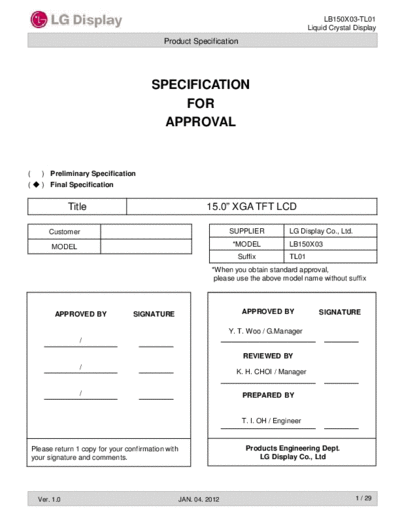

Image preview - the first page of the document

>> Download Panel_LG_Display_LB150X03-TL01_1_[DS] documenatation <<

Text preview - extract from the document

LB150X03-TL01
Liquid Crystal Display
Product Specification

SPECIFICATION
FOR
APPROVAL

( ) Preliminary Specification
( ) Final Specification

Title 15.0" XGA TFT LCD

Customer SUPPLIER LG Display Co., Ltd.

MODEL *MODEL LB150X03
Suffix TL01
*When you obtain standard approval,
please use the above model name without suffix

APPROVED BY SIGNATURE APPROVED BY SIGNATURE

Y. T. Woo / G.Manager
/

REVIEWED BY
/
K. H. CHOI / Manager

/ PREPARED BY

T. I. OH / Engineer

Please return 1 copy for your confirmation with Products Engineering Dept.
your signature and comments. LG Display Co., Ltd

Ver. 1.0 JAN. 04. 2012 1 / 29
LB150X03-TL01
Liquid Crystal Display
Product Specification

Contents

No ITEM Page
COVER 1

CONTENTS 2

RECORD OF REVISIONS 3

1 GENERAL DESCRIPTION 4

2 ABSOLUTE MAXIMUM RATINGS 5

3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTREISTICS 6

3-2 INTERFACE CONNECTIONS 7

3-3 CONNECTION BETWEEN HOST SYSTEM AND LVDS RECEIVER 8

3-4 LVDS SIGNAL TIMING SPECIFICATIONS 11

3-5 SIGNAL TIMING SPECIFICATION 12

3-6 POWER SEQUENCE 16

4 OPTICAL SFECIFICATIONS 18

5 MECHANICAL CHARACTERISTICS 22

6 RELIABLITY 25

7 INTERNATIONAL STANDARDS

7-1 SAFETY 26

7-2 ENVIRONMENTAL 26

7-3 EMC 26

8 PACKING

8-1 DESIGNATION OF LOT MARK 27

8-2 PACKING FORM 27

9 PRECAUTIONS 28

Ver. 1.0 JAN. 04. 2012 2 / 29
LB150X03-TL01
Liquid Crystal Display
Product Specification

RECORD OF REVISIONS

Revision No Revision Date Page Description Note
1.0 JAN. 03. 2012 - First draft

Ver. 1.0 JAN. 04. 2012 3 / 29
LB150X03-TL01
Liquid Crystal Display
Product Specification

1. General Description
The LB150X03-TL01 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system.
The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display
operating in the normally white mode. This TFT-LCD has 15.0 inches diagonally measured active display
area with XVGA resolution(1024 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green
and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-
pixel color is determined with a 8-bit(or 6-bit) gray scale signal for each dot, thus, presenting a palette of
more than 16,777,216(or 262,144) colors.
The LB150X03-TL01 has been designed to apply the interface method that enables low power, high speed,
low EMI.
The LB150X03-TL01 is intended to support applications where thin thickness, low power are critical factors
and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LB150X03-TL01 characteristics provide an excellent flat display for office automation products such as PC
or etc.

LVDS-Rx Column Driver Circuit
&
Timing
Control
Block
Row Driver Circuit

GMA
Reference TFT LCD
(1024 x 768)
CN1

Block

Power
Block

LED Driver LED Backlight Ass'y
Block

: GMA : Power : Control & Data

General Features
Active Screen Size 15.0 inches(30.75cm) diagonal
Outline Dimension 326.5(H) 253.5(V) 12.0(D) mm (Typ.)
Pixel Pitch 0.297 mm 0.296 mm
Pixel Format 1024 horiz. By 768 vert. Pixels RGB strip arrangement
16.7M colors (FRC) @ 8-bit input
Color Depth
262,144 colors @ 6-bit input
Luminance, White 400 cd/m2(Typ.)
Power Consumption Total 13.1 Watt(Typ.) @ LCM circuit 1.6 Watt(Typ.), B/L input 11.5 Watt(Typ.)
Weight 930g (Max.)
Display Operating Mode Transmissive mode, normally white
Surface Treatment Anti-glare
RoHS Comply Yes

Ver. 1.0 JAN. 04. 2012 4 / 29
LB150X03-TL01
Liquid Crystal Display
Product Specification

2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Table 1. ABSOLUTE MAXIMUM RATINGS

Values
Parameter Symbol Units Notes
Min Max
LCD circuit VCC -0.3 3.6 Vdc
Power Input Voltage
LED circuit VLED -0.3 12.6 Vdc

LCD circuit VBIT_SEL -0.3 4 Vdc at 25 5 C

Driver Control Voltage VPWM -0.3 5 Vdc
LED circuit
VLED_EN -0.3 12.6 Vdc

Operating Temperature
TOP -20 70 C 1
(Surface of panel)
Storage Temperature TST -30 80 C 1

Operating Ambient Humidity HOP 10 90 %RH 1

Storage Humidity HST 10 90 %RH 1

Note : 1. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 44 C Max, and no condensation of water.

Ver. 1.0 JAN. 04. 2012 5 / 29
LB150X03-TL01
Liquid Crystal Display
Product Specification

3. Electrical Specifications
3-1. Electrical Characteristics
The LB150X03-TL01 requires two power inputs. One is employed to power the LCD electronics and to drive
the TFT array and liquid crystal. The second input which powers the LED Backlight.
Table 2. ELECTRICAL CHARACTERISTICS

Values
Parameter Symbol Unit Notes
Min Typ Max
MODULE :
Power Supply Input Voltage VCC 3 3.3 3.6 VDC
Power Supply Input Current ICC - 480 624 mA 1
ICC - 595 773 mA 2
Power Consumption Pc - 1.6 2.0 Watt 1
LED Backlight ( With LED Driver ) :
LED Power Input Voltage VLED 11 12 12.5 V 3

LED Power Input Current ILED - 955 1240 mA 4
LED Power Consumption PLED - 11.5 14.8 Watt 4
PWM Duty Ratio 10 100 % 5
PWM Frequency FPWM - 15 - KHz 6
PWM High Level Voltage VPWM_H 3 3.3 5 V
PWM Low Level Voltage VPWM_L 0 0.5 V
LED_EN High Voltage VLED_EN_H 3 3.3 VLED V
LED_EN Low Voltage VLED_EN_L 0 0.5 V
Life Time 50,000 - - Hrs 7

Note)
1. The specified current and power consumption are under the Vcc = 3.3V , 25 , fv = 60Hz condition
whereas Mosaic pattern(8x6) is displayed and fv is the frame frequency.

2. The current is specified at the maximum current pattern
3. The measuring position is the connector of LCM and the test conditions are under 25 .
4. The current and power consumption with LED Driver are under the VLED = 12.0V , 25 , Dimming of
max luminance whereas white pattern is displayed.
5. The operation of LED Driver below minimum dimming ratio may cause flickering or reliability issue.
6. This Spec. is not effective at 100% dimming ratio as an exception because it has DC level equivalent
to 0Hz. In spite of acceptable range as defined, the PWM frequency should be fixed and stable for
more consistent brightness control at any specific level desired.
7. The life time is determined as the time at which brightness of LED is 50% compare to that of initial value
at the typical LED current.

Ver. 1.0 JAN. 04. 2012 6 / 29
LB150X03-TL01
Liquid Crystal Display
Product Specification

3-2. Interface Connections
The electronics interface connector is a model FI-X30SSL-HF manufactured by JAE.

Table 3. MODULE CONNECTOR PIN CONFIGURATION (CN1)

Pin Symbol Description Notes
1 VCC Power Supply for module, 3.3V Typ.
2 VCC Power Supply for module, 3.3V Typ. 1, Interface chips
3 GND Ground 1.1 LCD : Thine, KE5M6U2654(LCD Controller)
including LVDS Receiver
4 Bit_SEL Bit Selection, High : 6 Bit, Low : 8 Bit
1.2 System : THC63LVDM83R or Equivalent
5 GND Ground
6 GND Ground 2. Connector
7 RDP Positive LVDS differential data input 2.1 LCD : FI-X30SSL-HF
2.2 Mating :
8 RDM Negative LVDS differential data input FI-X30SSL (Manufactured by JAE) or Equivalent
9 GND Ground
10 RCLKP Positive LVDS differential clock input
11 RCLKM Negative LVDS differential clock input Rear view of LCM
12 GND Ground
30 1
13 RCP Positive LVDS differential data input
14 RCM Negative LVDS differential data input
15 GND Ground 1
30
16 RBP Positive LVDS differential data input
17 RBM Negative LVDS differential data input Backlight
18 GND Ground
19 RAP Positive LVDS differential data input
20 RAM Negative LVDS differential data input
21 GND Ground
22 NC Used only LGD internal test. Please treat it as NC
23 NC Used only LGD internal test. Please treat it as NC
24 PWM PWM input for dimming control
High(Typ.3.3V): Backlight On,
25 LED_EN
Low(0V): Backlight Off
26 GND GND

27 NC Used only LGD internal test. Please treat it as NC
28 VLED Power Supply, 12V Typ.
29 VLED Power Supply, 12V Typ.
30 VLED Power Supply, 12V Typ.

Notes : 1. All GND(ground) pins should be connected together and the LCD's metal frame.
2. All VCC(power input) pins should be connected together.

Ver. 1.0 JAN. 04. 2012 7 / 29
LB150X03-TL01
Liquid Crystal Display
Product Specification

3-3. Connection between Host system and LVDS receiver
Connection between Host system and LVDS receiver should be different by input signal condition(8bit or 6bit).
Please refer to 3.3.1 and 3.3.2.
3.3.1 Input data signal : 8bit
If input data is 8bit, connect MSB 2bit of R,G,B to TD0~TD5 pin of LVDS Tx. Refer to FIG 1 and Table 5 for
more detail.
Fig 1. REQUIRED SIGNAL ASSIGNMENT FOR LVDS TRANSMITTER(THC63LVDM83R)
