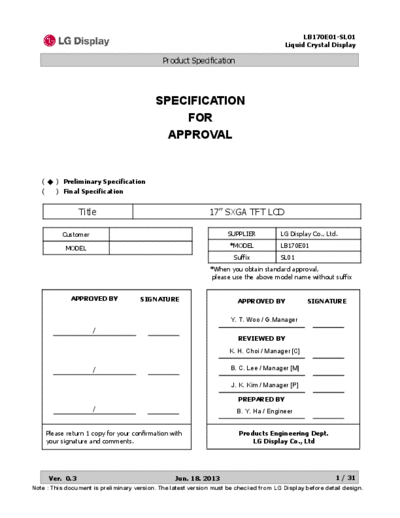

Image preview - the first page of the document
![Panel_LG_Display_LB170E01-SL01_0_[DS]](/pics/5eaf6cb941d13.gif)
>> Download Panel_LG_Display_LB170E01-SL01_0_[DS] documenatation <<
Text preview - extract from the document
LB170E01-SL01
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 17" SXGA TFT LCD
Customer SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LB170E01
Suffix SL01
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
Y. T. Woo / G.Manager
/
REVIEWED BY
K. H. Choi / Manager [C]
/ B. C. Lee / Manager [M]
J. K. Kim / Manager [P]
PREPARED BY
/ B. Y. Ha / Engineer
Please return 1 copy for your confirmation with Products Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver. 0.3 Jun. 18. 2013 1 / 31
Note : This document is preliminary version. The latest version must be checked from LG Display before detail design.
LB170E01-SL01
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 13
3-4 SIGNAL TIMING WAVEFORMS 14
3-5 COLOR INPUT DATA REFERNECE 15
3-6 POWER SEQUENCE 16
3-7 VLCD Power Dip Condition 17
4 OPTICAL SFECIFICATIONS 18
5 MECHANICAL CHARACTERISTICS 24
6 RELIABLITY 27
7 INTERNATIONAL STANDARDS 28
7-1 SAFETY 28
7-2 EMC 28
7-3 ENVIRONMENT 28
8 PACKING 29
8-1 DESIGNATION OF LOT MARK 30
8-2 PACKING FORM 29
9 PRECAUTIONS 30
Ver. 0.3 Jun. 18. 2013 2 / 31
Note : This document is preliminary version. The latest version must be checked from LG Display before detail design.
LB170E01-SL01
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision Revision
Page Description
No Date
0.0 Mar. 13. 2013 - First Draft, Preliminary Specifications
0.1 May. 01. 2013 4 Change General Features
6 Change Electrical Characteristics
9 Change Mating Connector
24 Change Weight
0.2 Jun. 10. 2013 4 Change General Features
5 Change ABSOLUTE MAXIMUM RATINGS
6 Change LCD Module ELECTRICAL CHARACTERISTICS
13 Change Timing Table
18 Change OPTICAL CHARACTERISTICS
27 Change Reliability
0.3 Jun. 18. 2013 10 Change Flat Link (THINE:THC63LVD823) Transmitter
Ver. 0.3 Jun. 18. 2013 3 / 31
Note : This document is preliminary version. The latest version must be checked from LG Display before detail design.
LB170E01-SL01
Liquid Crystal Display
Product Specification
1. General Description
LB170E01 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (White LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 17.0 inch diagonally
measured active display area with SXGA resolution (1024 vertical by 1280 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16,7M colors
It has been designed to apply the 8Bit 2 port LVDS interface.
It is intended to support displays where high brightness, super wide viewing angle,
high color saturation, and high color are important.
EPI (RGB)
RGB Source Driver Circuit
S1 S1280
LVDS
2port Gate Driver Circuit G1
CN1 Timing
(30pin)
Controller
+5.0V
TFT - LCD Panel
