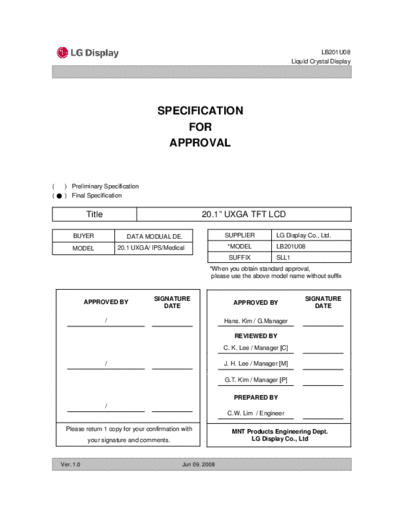

Image preview - the first page of the document
![Panel_LG_Display_LB201U08-SLL1_0_[DS]](/pics/5eaf6d4d31377.gif)
>> Download Panel_LG_Display_LB201U08-SLL1_0_[DS] documenatation <<
Text preview - extract from the document
LB201U08
LB201U08
Liquid Crystal Display
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 20.1" UXGA TFT LCD
BUYER DATA MODUAL. DE.
MODUAL SUPPLIER LG Display Co., Ltd.
MODEL DATA MODUAL.
20.1 UXGA/ IPS/Medical *MODEL LB201U08
20.1 UXGA/ IPS/Medical SUFFIX SLL1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ Hans. Kim / G.Manager
REVIEWED BY
C. K. Lee / Manager [C]
/ J. H. Lee / Manager [M]
G.T. Kim / Manager [P]
PREPARED BY
/
C.W. Lim / Engineer
Please return 1 copy for your confirmation with MNT Products Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver. 1.0 Jun 09. 2008
LB201U08
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 9
3-3 SIGNAL TIMING SPECIFICATIONS 16
3-4 SIGNAL TIMING WAVEFORMS 17
3-5 COLOR INPUT DATA REFERNECE 18
3-6 POWER SEQUENCE 19
4 OPTICAL SFECIFICATIONS 20
5 MECHANICAL CHARACTERISTICS 25
6 RELIABILITY 28
7 INTERNATIONAL STANDARDS 29
7-1 SAFETY 29
7-2 EMC 29
7-3 ENVIRONMENT 29
8 PACKING 30
8-1 DESIGNATION OF LOT MARK 30
8-2 PACKING FORM 30
9 PRECAUTIONS 31
Ver. 1.0 Jun 09. 2008 2 / 33
LB201U08
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision No Revision Date Page DESCRIPTION
0.0 Feb. 15. 2008 - Preliminary Specification
1.0 Jun. 09. 2008 - Final specification
15 Correction of the Lamp CNT No.
29 Changed the RoHS sentence
30 Updated the Packing form
Ver. 1.0 Jun 09. 2008 3 / 33
LB201U08
Liquid Crystal Display
Product Specification
1. General Description
LB201U08 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 20.1 inch diagonally measured
acti ve d isplay area with UXGA resolution (1200 vertical by 1600 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16,7M(True) colors.
It has been designed to apply the 8Bit 2 port LVDS interface.
It is intended to support displays where high brightness, super wide viewing angle,
high color saturation, and high color are important, e.x. medical display &work station display.
Source Driver Circuit
RGB, Dclk, DE Timing Control
Hsync, Vsync CN1 S1 S1600
Block
(LVDS 2 port) (30pin)
G1
VLCD(+20V) Gate Driver circuit
TFT-LCD Panel
