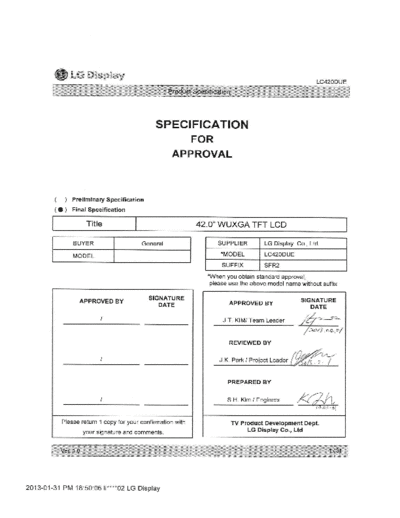

Image preview - the first page of the document
![Panel_LG_Display_LC420DUE-SFR2_0_[DS]](/pics/5eaf79b866703.gif)
>> Download Panel_LG_Display_LC420DUE-SFR2_0_[DS] documenatation <<
Text preview - extract from the document
LC420DUE
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 42.0" WUXGA TFT LCD
BUYER General SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LC420DUE
SUFFIX SFR2
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J.T. KIM/ Team Leader
REVIEWED BY
/ J.K. Park / Project Leader
PREPARED BY
/ S.H. Kim / Engineer
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG Display Co., Ltd
Ver. 1.0 1 / 34
LC420DUE
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 10
3-4 SIGNAL TIMING WAVEFORMS 11-13
3-5 COLOR DATA REFERENCE 14
3-6 POWER SEQUENCE 15
4 OPTICAL SPECIFICATIONS 16-19
5 MECHANICAL CHARACTERISTICS 20-22
6 RELIABILITY 23
7 INTERNATIONAL STANDARDS
7-1 SAFETY 24
7-2 EMC 24
7-3 ENVIRONMENT 24
8 PACKING
8-1 DESIGNATION OF LOT MARK 25
8-2 PACKING FORM 25
9 PRECAUTIONS
9-1 MOUNTING PRECAUTIONS 26
9-2 OPERATING PRECAUTIONS 26
9-3 ELECTROSTATIC DISCHARGE CONTROL 27
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 27
9-5 STORAGE 27
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 27
Ver. 1.0 2 / 34
LC420DUE
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
1.0 Jan, 28, 2013 Final Specification.
Ver. 1.0 3 / 34
LC420DUE
Product Specification
1. General Description
The LC420DUE is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
b ac k l i g ht s ys t em . T he m a t r i x em p l o ys a - S i T h i n F i lm T r an s is t or a s t he a c t i v e e l em en t .
It is a transmissive display type which is operating in the normally black mode. It has a 42.02 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Million colors.
It has been designed to apply the 8-bit 2-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
EPI(RGB)
EEPROM
Source Driver Circuit
SCL SDA S1 S1920
G1
LVDS
LVDS 1,2 Timing Controller
2Port
LVDS Rx + DGA
LVDS Option Integrated Control TFT - LCD Panel
Select signal Signals (1920 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
