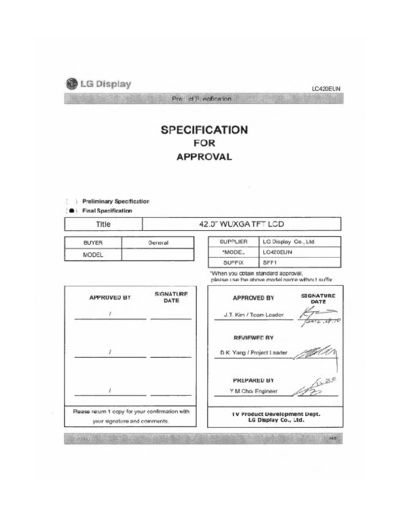

Image preview - the first page of the document
![Panel_LG_Display_LC420EUN-SFF1_0_[DS]](/pics/5eaf7eea9ca34.gif)
>> Download Panel_LG_Display_LC420EUN-SFF1_0_[DS] documenatation <<
Text preview - extract from the document
LC420EUN
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 42.0" WUXGA TFT LCD
BUYER General SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LC420EUN
SUFFIX SFF1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J.T. Kim / Team Leader
REVIEWED BY
/ D.K. Yang / Project Leader
PREPARED BY
/ Y.M.Cho/ Engineer
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG Display Co., Ltd.
Ver. 1.0 1 /40
LC420EUN
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 11
3-4 SIGNAL TIMING WAVEFORMS 12
3-5 COLOR DATA REFERENCE 15
3-6 POWER SEQUENCE 16
4 OPTICAL SPECIFICATIONS 18
5 MECHANICAL CHARACTERISTICS 24
6 RELIABILITY 27
7 INTERNATIONAL STANDARDS 28
7-1 SAFETY 28
7-2 EMC 28
7-3 ENVIRONMENT 28
8 PACKING 29
8-1 DESIGNATION OF LOT MARK 29
8-2 PACKING FORM 29
9 PRECAUTIONS 30
9-1 MOUNTING PRECAUTIONS 30
9-2 OPERATING PRECAUTIONS 30
9-3 ELECTROSTATIC DISCHARGE CONTROL 31
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 31
9-5 STORAGE 31
9-7 OPERATING GONDITION GUIDE 31
Ver. 1.0 2 /40
LC420EUN
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.1 Apr, 24, 2012 - Preliminary Specification(First Draft)
0.2 May, 31, 2012 4 Updated the General Features
6,7 Updated the Electrical Characteristics
0.3 Jul, 23, 2012 4 Updated the General Features
6,7 Updated the Table 2
15 Updated the Table 8 & notes
17 Updated the Table 10
40 Updated the Current status
1.0 Aug,08,2012 24,25 Updated 3D drawings
26 Updated Table 12
Final Specification
Ver. 1.0 3 /40
LC420EUN
Product Specification
1. General Description
The LC420EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 41.92 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Milion colors.
It has been designed to apply the 8-bit 2-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
EPI(RGB)
LVDS EEPROM
Source Driver Circuit
2Port
SCL SDA S1 S1920
LVDS
Select LVDS 1,2 G1
Timing Controller
OPC
Enable
Option
signal
LVDS Rx + OPC + DGA TFT - LCD Panel
