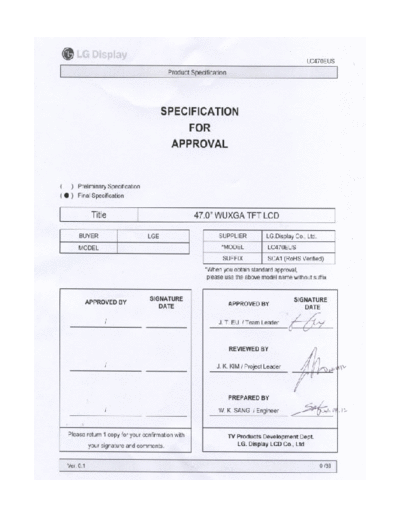

Image preview - the first page of the document
![Panel_LG_Display_LC470EUS-SCA1_0_[DS]](/pics/5eaf8537745aa.gif)
>> Download Panel_LG_Display_LC470EUS-SCA1_0_[DS] documenatation <<
Text preview - extract from the document
LC470EUS
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 47.0" WUXGA TFT LCD
BUYER LGE SUPPLIER LG.Display Co., Ltd.
MODEL *MODEL LC470EUS
SUFFIX SCA1 (RoHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J. T. EU / Team Leader
REVIEWED BY
/ J. K. KIM / Project Leader
PREPARED BY
/ W. K SANG / Engineer
Please return 1 copy for your confirmation with TV Products Development Dept.
your signature and comments. LG. Display LCD Co., Ltd
Ver. 0.1 0 /39
LC470EUS
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 11
3-3 SIGNAL TIMING SPECIFICATIONS 14
3-4 DATA MAPPING AND TIMING 17
3-5 PANEL PIXEL STRUCTURE 18
3-6 POWER SEQUENCE 19
4 OPTICAL SPECIFICATIONS 20
5 MECHANICAL CHARACTERISTICS 24
6 RELIABILITY 27
7 INTERNATIONAL STANDARDS 28
7-1 SAFETY 28
7-2 ENVIRONMENT 28
8 PACKING 29
8-1 INFORMATION OF LCM LABEL 29
8-2 PACKING FORM 29
9 PRECAUTIONS 30
9-1 MOUNTING PRECAUTIONS 30
9-2 OPERATING PRECAUTIONS 30
9-3 ELECTROSTATIC DISCHARGE CONTROL 31
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 31
9-5 STORAGE 31
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 31
Ver. 0.1 1 /39
LC470EUS
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.0 Feb, 09, 2010 - Preliminary Specification(First Draft)
0.1 Mar, 09, 2010 3 Power consumption
18 Optical spec.
23~24 Mechanical Dimension
0.2 Mar, 29, 2010 7 Vf Min / Max, Power, Life Time Update.
18 Response Time, Color Coordinates Update.
26 International Standards(Safety)
0.3 April, 1, 2010 5 Table2. Min/Max
7 Table Burst Dimming Min Duty 10 1
24 2D Rear View Wire Tape Quantity(2ea 1ea)
1.0 April, 1, 2010 Final Cas.
Ver. 0.1 2 /39
LC470EUS
Product Specification
1. General Description
The LC470EUS is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
bac k li ght s ys tem . T he m atr ix em p lo ys a- S i T hin F i lm T r ans is to r as the ac t i ve elem ent.
It is a transmissive type display operating in the normally black mode. It has a 42.02 inch diagonally measured
active dis pla y area wi th W UXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7M(true) colors.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Power (VCC,HVDD,VDD,VGH,VGL)
Source Control Signal Source Driver Circuit
Gate Control Signal CN1 S1 S1920
(80pin)
Gamma Reference Voltage G1
Gate Driver Circuit
mini-LVDS (RGB) for Left drive
Power (VCC,HVDD,VDD,VGH,VGL) TFT - LCD Panel
