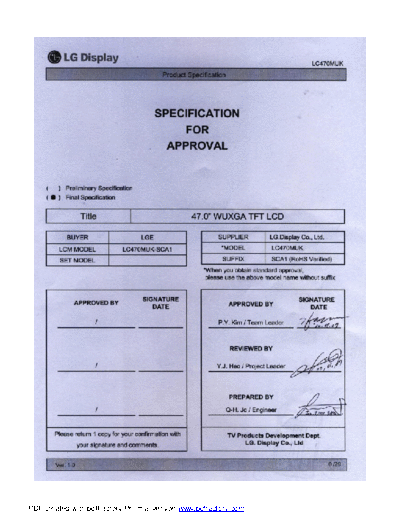

Image preview - the first page of the document
![Panel_LG_Display_LC470MUK-SCA1_0_[DS]](/pics/5eaf854e5bf0b.gif)
>> Download Panel_LG_Display_LC470MUK-SCA1_0_[DS] documenatation <<
Text preview - extract from the document
LC470MUK
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 47.0" WUXGA TFT LCD
BUYER LGE SUPPLIER LG.Display Co., Ltd.
LCM MODEL LC470MUK-SCA1 *MODEL LC470MUK
SET MODEL SUFFIX SCA1 (RoHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ P.Y. Kim / Team Leader
REVIEWED BY
/ Y.J. Heo / Project Leader
PREPARED BY
/ Q-H. Jo / Engineer
Please return 1 copy for your confirmation with TV Products Development Dept.
your signature and comments. LG. Display Co., Ltd
Ver. 1.0 0 /29
PDF created with pdfFactory Pro trial version www.pdffactory.com
LC470MUK
Product Specification
CONTENTS
Number ITEM Page
COVER 0
CONTENTS 1
RECORD OF REVISIONS 2
1 GENERAL DESCRIPTION 3
2 ABSOLUTE MAXIMUM RATINGS 4
3 ELECTRICAL SPECIFICATIONS 5
3-1 ELECTRICAL CHARACTERISTICS 5
3-2 INTERFACE CONNECTIONS 7
3-3 SIGNAL TIMING SPECIFICATIONS 9
3-4 DATA MAPPING AND TIMING 12
3-5 PANEL PIXEL STRUCTURE 13
3-6 POWER SEQUENCE 14
4 OPTICAL SPECIFICATIONS 15
5 MECHANICAL CHARACTERISTICS 19
6 RELIABILITY 21
7 INTERNATIONAL STANDARDS 22
7-1 ENVIRONMENT 22
8 PACKING 23
8-1 PACKING FORM 23
9 PRECAUTIONS 24
9-1 ASSEMBLY PRECAUTIONS 24
9-2 OPERATING PRECAUTIONS 24
9-3 ELECTROSTATIC DISCHARGE CONTROL 25
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 25
9-5 STORAGE 25
Ver. 1.0 1 /29
PDF created with pdfFactory Pro trial version www.pdffactory.com
LC470MUK
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.1 Sep. 18, 2009 - Preliminary Specification(First Draft)
0.2 Sep. 25, 2009 7, 8 Corrected the `MODULE CONNECTOR(CN1) PIN CONFIGURATION'
10 Corrected the `Last Data Latch to SOE Timing'
0.3 Nov. 13, 2009 5 Corrected the `ELECTRICAL CHARACTERISTICS'
29 Added the `APPENDIX- IV'
0.4 Nov. 20, 2009 7,8 Corrected the `LCD Connector (CN1) and (CN2)'
0.5 Dec. 30, 2009 5 Changed the `ELECTRICAL CHARACTERISTICS' and the `Note'
Modified the `MODULE CONNECTOR(CN1, CN2) PIN
7,8
CONFIGURATION' for normal operation.
Modified the `Note' for `MODULE CONNECTOR(CN1, CN2) PIN
7,8
CONFIGURATION'
14 Modified the `Note' for `POWER SEQUENCE'
15 Added the `Color Coordinates' in `Table 6'
0.6 Jan. 7, 2010 5 Modified the `Common Voltage'
1.0 Jan. 7, 2010 - Final Specification
Ver. 1.0 2 /29
PDF created with pdfFactory Pro trial version www.pdffactory.com
LC470MUK
Product Specification
1. General Description
The LC470MUK is a Color Active Matrix Liquid Crystal Display with an integral the Source PCB and Gate
implanted on Panel (GIP). The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 46.96 inch diagonally measured
activ e di spl ay area with W UXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7M(true) colors.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Power (VCC, VDD, VGH, VGL)
Source Control Signal Source Driver Circuit
Gate Control Signal CN1 S1 S1920
(60pin)
Gamma Reference Voltage G1
mini-LVDS (RGB) for Left drive
Power (VCC, VDD, VGH, VGL) TFT - LCD Panel
