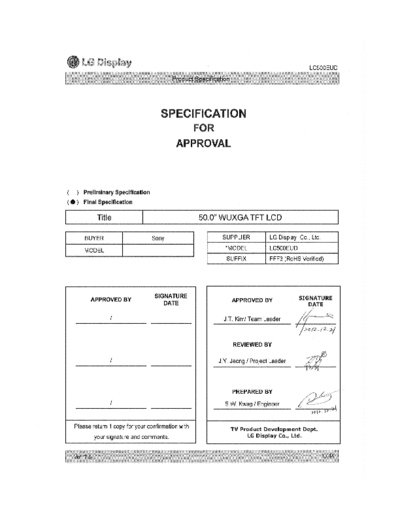

Image preview - the first page of the document
![Panel_LG_Display_LC500EUD-FFF3_0_[DS]](/pics/5eaf86c759413.gif)
>> Download Panel_LG_Display_LC500EUD-FFF3_0_[DS] documenatation <<
Text preview - extract from the document
LC500EUD
Product Specification
Ver. 1.0 0 / 44
LC500EUD
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 50.0" WUXGA TFT LCD
BUYER Sony SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LC500EUD
SUFFIX FFF3 (RoHS Verified)
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J.T. Kim/ Team Leader
REVIEWED BY
/ J.Y. Jeong / Project Leader
PREPARED BY
/ S.W. Kwag / Engineer
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG Display Co., Ltd.
Ver. 1.0 1 / 44
LC500EUD
Product Specification
CONTENTS
Number ITEM Page
COVER
CONTENTS 1
RECORD OF REVISIONS 2
1 GENERAL DESCRIPTION 3
2 ABSOLUTE MAXIMUM RATINGS 4
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTERISTICS 5-6
3-2 INTERFACE CONNECTIONS 7-9
3-3 SIGNAL TIMING SPECIFICATIONS 10
3-4 SIGNAL TIMING WAVEFORMS 11-13
3-5 COLOR DATA REFERENCE 14
3-6 POWER SEQUENCE 15-16
4 OPTICAL SPECIFICATIONS 17-23
5 MECHANICAL CHARACTERISTICS 24-26
6 RELIABILITY 27
7 INTERNATIONAL STANDARDS
7-1 SAFETY 28
7-2 EMC 28
7-3 ENVIRONMENT 28
8 PACKING
8-1 DESIGNATION OF LOT MARK 29
8-2 PACKING FORM 29
9 PRECAUTIONS
9-1 MOUNTING PRECAUTIONS 30
9-2 OPERATING PRECAUTIONS 30
9-3 ELECTROSTATIC DISCHARGE CONTROL 31
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 31
9-5 STORAGE 31
9-6 Handling Precautions for Protection Film 31
9-7 OPERATING GONDITION GUIDE 31
# APPENDIX- I ~ VIII 32-44
Ver. 1.0 2 / 44
LC500EUD
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.1 Sep, 11, 2012 - Preliminary Specification (First Draft)
0.2 Dec. 12. 2012 25.26 Mechanical drawing updated
- Spec updated
1.0 Dec. 21. 2012 Final Specification
Ver. 1.0 3 / 44
LC500EUD
Product Specification
1. General Description
The LC500EUD is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 49.50 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.06Bilion colors.
It has been designed to apply the 10-bit 4-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
EPI (RGB)
CN2 EEPROM
LVDS (41pin) Source Driver Circuit
2Port
LVDS 3,4 SCL SDA S1 S1920
LVDS G1
2Port LVDS 1,2 Timing Controller
LVDS
Select Option
signal
LVDS Rx + L/D + DGA + ODC
Integrated
Control TFT - LCD Panel
