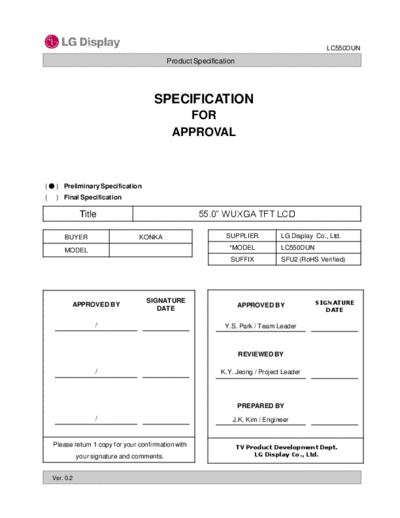

Image preview - the first page of the document
![Panel_LG_Display_LC550DUN-SFU2_0_[DS]](/pics/5eafbe255847a.gif)
>> Download Panel_LG_Display_LC550DUN-SFU2_0_[DS] documenatation <<
Text preview - extract from the document
LC550DUN
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 55.0" WUXGA TFT LCD
BUYER KONKA SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LC550DUN
SUFFIX SFU2 (RoHS Verified)
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ Y.S. Park / Team Leader
REVIEWED BY
/ K.Y. Jeong / Project Leader
PREPARED BY
/ J.K. Kim / Engineer
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG Display Co., Ltd.
Ver. 0.2
LC550DUN
Product Specification
CONTENTS
Number ITEM Page
COVER 0
CONTENTS 1
RECORD OF REVISIONS 2
1 GENERAL DESCRIPTION 3
2 ABSOLUTE MAXIMUM RATINGS 4
3 ELECTRICAL SPECIFICATIONS 5
3-1 ELECTRICAL CHARACTERISTICS 5
3-2 INTERFACE CONNECTIONS 7
3-3 SIGNAL TIMING SPECIFICATIONS 9
3-4 LVDS SIGNAL SPECIFICATION 11
3-5 COLOR DATA REFERENCE 14
3-6 POWER SEQUENCE 15
4 OPTICAL SPECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 23
6 RELIABILITY 26
7 INTERNATIONAL STANDARDS 27
7-1 SAFETY 27
7-2 EMC 27
7-3 ENVIRONMENT 27
8 PACKING 28
8-1 DESIGNATION OF LOT MARK 28
8-2 PACKING FORM 28
9 PRECAUTIONS 29
9-1 MOUNTING PRECAUTIONS 29
9-2 OPERATING PRECAUTIONS 29
9-3 ELECTROSTATIC DISCHARGE CONTROL 30
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 30
9-5 STORAGE 30
9-6 OPERATING CONDITION GUIDE 30
Ver. 0.2 1 /39
LC550DUN
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.0 Oct, 26, 2012 - Preliminary Specification (First Draft)
0.1 Nov. 25, 2012 7 Changed LVDS CNT Manufacturer
0.2 Jan, 25, 2013 3, 6 Changed Power Consumption (LED Driver)
Ver. 0.2 2 /39
LC550DUN
Product Specification
1. General Description
The LC550EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 54.64 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Milion colors.
It has been designed to apply the 8-bit 2-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
EPI(RGB)
LVDS EEPROM
Source Driver Circuit
2Port
SCL SDA S1 S1920
LVDS 1,2 G1
LVDS
Select Timing Controller
Option
signal
LVDS Rx + DGA TFT - LCD Panel
CN1
(51pin)
