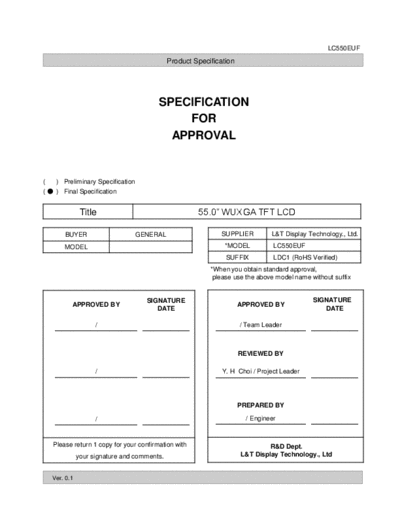

Image preview - the first page of the document
![Panel_LG_Display_LC550EUF-LDC1_0_[DS]](/pics/5ea66ff30871a.gif)
>> Download Panel_LG_Display_LC550EUF-LDC1_0_[DS] documenatation <<
Text preview - extract from the document
LC550EUF
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 55.0" WUXGA TFT LCD
BUYER GENERAL SUPPLIER L&T Display Technology., Ltd.
MODEL *MODEL LC550EUF
SUFFIX LDC1 (RoHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ / Team Leader
REVIEWED BY
/ Y. H Choi / Project Leader
PREPARED BY
/ / Engineer
Please return 1 copy for your confirmation with R&D Dept.
your signature and comments. L&T Display Technology., Ltd
Ver. 0.1
LC550EUF
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 11
3-4 SIGNAL TIMING WAVEFORMS 12
3-5 COLOR DATA REFERENCE 15
3-6 POWER SEQUENCE 16
4 OPTICAL SPECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 23
6 INTERNATIONAL STANDARDS 26
6-1 ENVIRONMENT 26
7 PRECAUTIONS 27
7-1 MOUNTING PRECAUTIONS 27
7-2 OPERATING PRECAUTIONS 27
7-3 ELECTROSTATIC DISCHARGE CONTROL 28
7-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 28
7-5 STORAGE 28
7-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 28
7-7 OPERATING CONDIDITON GUIDE 28
Ver. 0.1 1 /38
LC550EUF
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
1.0 Jun, 07, 2011 - Preliminary Specification
Ver. 0.1 2 /38
LC550EUF
Product Specification
1. General Description
The LC550EUF is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
bac k light s ys tem . T he m atr ix em plo ys a- S i T hin F i lm T rans is tor as the ac ti ve e lem ent .
It is a transmissive type display operating in the normally black mode. It has a 54.64 inch diagonally measured
active display area with W UXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7M(true) colors.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini-LVDS(RGB)
CN2 EEPROM
LVDS (41pin) Source Driver Circuit
2Port
LVDS 3,4 SCL SDA S1 S1920
LVDS G1
2Port LVDS 1,2
Timing Controller
LVDS Option LVDS Rx + DGA + ODC
Select signal
Integrated
Control
Signals
TFT - LCD Panel
