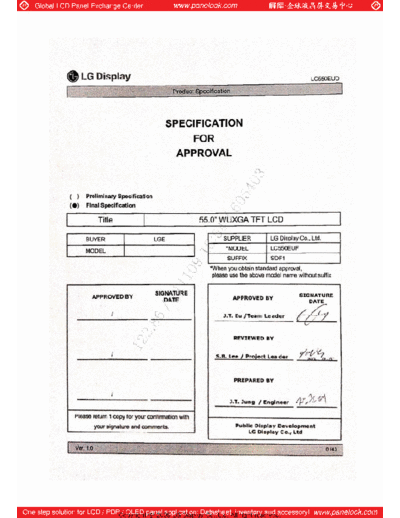

Image preview - the first page of the document
![Panel_LG_Display_LC550EUF-SDF1_0_[DS]](/pics/5eafc0a492628.gif)
>> Download Panel_LG_Display_LC550EUF-SDF1_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LC550EUF
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
() Final Specification
Title 55.0" WUXGA TFT LCD
BUYER LGE SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LC550EUF
SUFFIX SDF1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J.T. Eu /Team Leader
REVIEWED BY
/ S.B. Lee / Project Leader
PREPARED BY
/
J.T. Jung / Engineer
Please return 1 copy for your confirmation with
your signature and comments. Public Display Development
LG Display Co., Ltd
Ver. 1.0 1 / 43
One step solution for LCD / PDPCopyrightpanel application: Datasheet, inventory and accessory! www.panelook.com
/ OLED 2009 LG Display Co.,Ltd. All right reserved.
Global LCD Panel Exchange Center www.panelook.com
LC550EUF
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 11
3-4 SIGNAL TIMING WAVEFORMS 12
3-5 COLOR DATA REFERENCE 15
3-6 POWER SEQUENCE 16
4 OPTICAL SPECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 23
6 RELIABILITY 26
7 INTERNATIONAL STANDARDS 27
7-1 SAFETY 27
7-2 EMC 27
7-3 Environment 27
8 PACKING 28
8-1 DESIGNATION OF LOT MARK 28
8-2 PACKING FORM 28
9 PRECAUTIONS 29
9-1 MOUNTING PRECAUTIONS 29
9-2 OPERATING PRECAUTIONS 29
9-3 ELECTROSTATIC DISCHARGE CONTROL 30
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 30
9-5 STORAGE 30
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 30
Ver. 1.0 2 / 43
One step solution for LCD / PDPCopyrightpanel application: Datasheet, inventory and accessory! www.panelook.com
/ OLED 2009 LG Display Co.,Ltd. All right reserved.
Global LCD Panel Exchange Center www.panelook.com
LC550EUF
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.0 Aug 31, 2010 - Preliminary Specification
1.0 Dec, 13, 2010 - Final Specification
Ver. 1.0 3 / 43
One step solution for LCD / PDPCopyrightpanel application: Datasheet, inventory and accessory! www.panelook.com
/ OLED 2009 LG Display Co.,Ltd. All right reserved.
Global LCD Panel Exchange Center www.panelook.com
LC550EUF
Product Specification
1. General Description
The LC550EUF is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
b a c k l i g h t s ys t e m . T h e m a t r i x e m plo ys a- S i T h in F i lm T r ans is to r as the ac t i ve e lem ent.
It is a transmissive display type which is operating in the normally black mode. It has a 46.96 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.06Bilion colors.
It has been designed to apply the 10-bit 4-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini-LVDS(RGB)
CN2 EEPROM
LVDS (41pin) Source Driver Circuit
2Port
LVDS 3,4 SCL SDA S1 S1920
G1
LVDS
LVDS 1,2 Timing Controller
2Port
LVDS Rx + L/Dim + DGA + ODC
LVDS
Select
Option
signal
Integrated Control
Signals
TFT - LCD Panel
Bit
