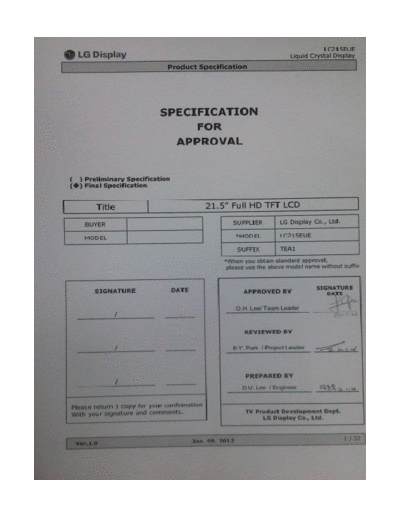

Image preview - the first page of the document

>> Download Panel_LG_Display_LC215EUE-TEA1_1_[DS] documenatation <<

Text preview - extract from the document

LC215EUE
Liquid Crystal Display
Product Specification

Ver.1.0 Jan. 09. 2012
LC215EUE
Liquid Crystal Display
Product Specification

SPECIFICATION
FOR
APPROVAL

( ) Preliminary Specification

() Final Specification

Title 21.5" Full HD TFT LCD

BUYER SUPPLIER LG Display Co., Ltd.

MODEL *MODEL LC215EUE

SUFFIX TEA1

*When you obtain standard approval,
please use the above model name without suffix

SIGNATURE DATE APPROVED BY
SIGNATURE
DATE

O.H. Lee/ Team Leader
/

REVIEWED BY

/ B.Y. Park / Project Leader

/ PREPARED BY

D.U. Lee / Engineer

Please return 1 copy for your confirmation
With your signature and comments. TV Product Development Dept.
LG Display Co., Ltd.

Ver.1.0 Jan. 09. 2012 2 / 32
LC215EUE
Liquid Crystal Display
Product Specification

Contents

No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 8
3) LVDS characteristics 11
4) SIGNAL TIMING SPECIFICATIONS 14
5) SIGNAL TIMING WAVEFORMS 15
6) COLOR INPUT DATA REFERNECE 16
7) POWER SEQUENCE 17
8) POWER DIP CONDITION 18
4 OPTICAL SFECIFICATIONS 19
5 MECHANICAL CHARACTERISTICS 23
6 RELIABILITY 26
7 INTERNATIONAL STANDARDS 27
1) SAFETY 27
2) EMC 27
3) ENVIRONMENT 27
8 PACKING 28
1) DESIGNATION OF LOT MARK 28
2) PACKING FORM 28
9 PRECAUTIONS 29
1) MOUNTING PRECAUTIONS 29
2) OPERATING PRECAUTIONS 29
3) ELECTROSTATIC DISCHARGE CONTROL 30
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 30
5) STROAGE 30
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 30

Ver.1.0 Jan. 09. 2012 3 / 32
LC215EUE
Liquid Crystal Display
Product Specification

Record of revisions

Revision
Date Page Description
No
Ver. 0.1 Oct. 31. 2011 - Preliminary Specifications.
Ver. 0.2 Nov. 28. 2011 6 Update Table 2. Electrical characteristics
Ver. 0.3 Dec. 14. 2011 19 Update General features

Update Table 10. Optical characteristics

Ver. 1.0 Jan. 09. 2012 Final CAS release

Ver.1.0 Jan. 09. 2012 4 / 32
LC215EUE
Liquid Crystal Display
Product Specification

1. General description
LC215EUE-TEA1 is a Color Active Matrix Liquid Crystal Display with a Light Emitting Diode(LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a
transmissive type display operating in the normally white mode. It has a 21.5 inch diagonally
measured active display area with Full HD resolution (1080 vertical by 1920 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical
stripes. Gray scale or the brightness of the sub-pixel color is determined with
a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16,7M colors with
Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method that
enables low power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low
Voltage Differential Signaling) chip. It is intended to support applications where thin thickness,
wide viewing angle, low power are critical factors and graphic displays are important. In
combination with the vertical arrangement of the sub-pixels, the LC215EUE-TEA1 characteristics
provide an excellent flat panel display for office automation products such as monitors.

RGB
FIG. 1 Block diagram
Source driver circuit

S1 S1920
LVDS G1
pair #1
Timing
LVDS
controller
pair #2 TFT-LCD Panel
(1920
