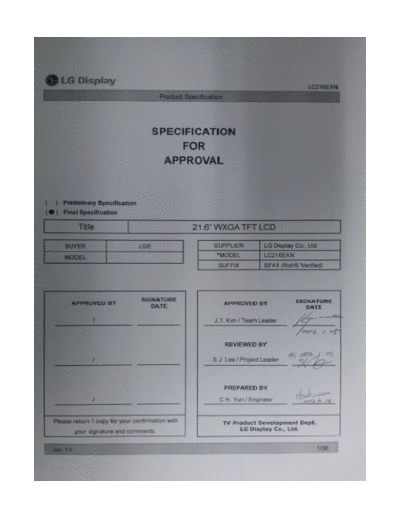

Image preview - the first page of the document
![Panel_LG_Display_LC216EXN-SFA1_0_[DS]](/pics/5eaf6eb2acc01.gif)
>> Download Panel_LG_Display_LC216EXN-SFA1_0_[DS] documenatation <<
Text preview - extract from the document
LC216EXN
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 21.6" WXGA TFT LCD
BUYER LGE SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LC216EXN
SUFFIX SFA1 (RoHS Verified)
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J.T. Kim / Team Leader
REVIEWED BY
/ S.J. Lee / Project Leader
PREPARED BY
/ C.H. Yun / Engineer
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG Display Co., Ltd.
Ver. 1.0 1/36
LC216EXN
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 10
3-4 SIGNAL TIMING WAVEFORMS 11
3-5 COLOR DATA REFERENCE 14
3-6 POWER SEQUENCE 15
4 OPTICAL SPECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 21
6 RELIABILITY 24
7 INTERNATIONAL STANDARDS 25
7-1 SAFETY 25
7-2 EMC 25
7-3 Environment 25
8 PACKING 26
8-1 INFORMATION OF LCM LABEL 26
8-2 PACKING FORM 26
9 PRECAUTIONS 27
9-1 MOUNTING PRECAUTIONS 27
9-2 OPERATING PRECAUTIONS 27
9-3 ELECTROSTATIC DISCHARGE CONTROL 28
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 28
9-5 STORAGE 28
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 28
Ver. 1.0 2/36
LC216EXN
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.1 Jul. 06. 2012 - Preliminary Specification (First Draft)
0.2 Jul. 17. 2012 8 Module Connector(CN1) Pin Configuration
0.3 Sep. 03. 2012 21 Mechanical Characteristics
0.4 Oct. 26. 2012 6 Power Input Current, Power Consumption
0.5 Nov. 26. 2012 22, 23 Mechanical Drawing
7 LED Driver Power Input Current/Consumption
0.6 Dec. 17. 2012 23 Serial Label Position
0.7 Jan. 23. 2013 22, 23 Mechanical Drawing
1.0 Jan. 24. 2013 - CAS Version 1.0 Release
Final Specification
Ver. 1.0 3/36
LC216EXN
Product Specification
1. General Description
The LC216EXN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 21.6 inch diagonally
measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
Therefore, it can present a palette of more than 16.7M(6bit + A-FRC) colors.
It has been designed to apply the 8-bit 1-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini-LVDS(RGB)
EEPROM
Source Driver Circuit
SCL SDA S1 S1366
G1
LVDS
Timing Controller Control
1Port Signals
[LVDS Rx]
LVDS
CN1
(30pin) TFT - LCD Panel
