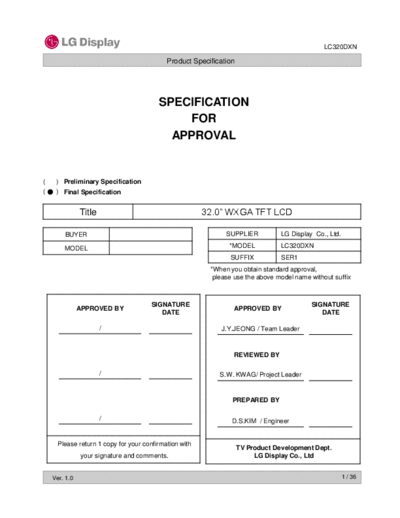

Image preview - the first page of the document
![Panel_LG_Display_LC320DXN-SER1_1_[DS]](/pics/5eaf70e78283d.gif)
>> Download Panel_LG_Display_LC320DXN-SER1_1_[DS] documenatation <<
Text preview - extract from the document
LC320DXN
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 32.0" WXGA TFT LCD
BUYER SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LC320DXN
SUFFIX SER1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J.Y.JEONG / Team Leader
REVIEWED BY
/ S.W. KWAG/ Project Leader
PREPARED BY
/ D.S.KIM / Engineer
Please return 1 copy for your confirmation with
TV Product Development Dept.
your signature and comments. LG Display Co., Ltd
Ver. 1.0 1 / 36
LC320DXN
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 10
3-4 LVDS SIGNAL SPECIFICATIONS 11
3-5 COLOR DATA REFERENCE 14
3-6 POWER SEQUENCE 15
4 OPTICAL SPECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 21
6 RELIABILITY 24
7 INTERNATIONAL STANDARDS 25
7-1 SAFETY 25
7-2 EMC 25
7-3 ENVIRONMENT 25
8 PACKING 26
8-1 DESIGNATION OF LOT MARK 26
8-2 PACKING FORM 26
9 PRECAUTIONS 27
9-1 MOUNTING PRECAUTIONS 27
9-2 OPERATING PRECAUTIONS 27
9-3 ELECTROSTATIC DISCHARGE CONTROL 28
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 28
9-5 STORAGE 28
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 28
Ver. 1.0 2 / 36
LC320DXN
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.0 Sep. 30, 2011 - Preliminary Specification (First Draft)
0.1 Nov. 07. 2011 7 LED Driver Electrical Characteristics Fixed
17 Color Coordinates Fixed
0.2 Nov. 24. 2011 22,23 Mechanical drawing update
1.0 DEC. 16. 2011 Final Specification
Ver. 1.0 3 / 36
LC320DXN
Product Specification
1. General Description
The LC320DXN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
bac k l i ght s ys tem . T he m atr ix em p lo ys a - S i T hin F i lm T rans is tor as the ac t i v e e lem e nt .
It is a transmissive display type which is operating in the normally black mode. It has a 31.51 inch diagonally
measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in Horizontal stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus presenting a palette of more than 16.7M(6bit + A-FRC) colors.
It has been designed to apply the 8-bit 1-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini LVDS(RGB)
EEPROM
Source Driver Circuit
SCL SDA
S1 S1366
LVDS Select #9 G1
CN1
(30pin) Timing Controller
LVDS 1Port [LVDS Rx] Control
Signals TFT - LCD Panel
