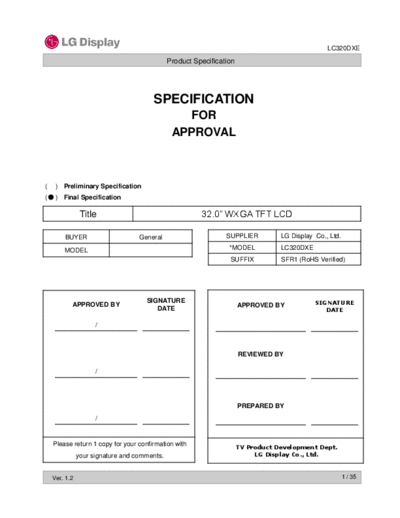

Image preview - the first page of the document
![Panel_LG_Display_LC320DXE-SFR1_1_[DS]](/pics/5eaf70a3bd1b9.gif)
>> Download Panel_LG_Display_LC320DXE-SFR1_1_[DS] documenatation <<
Text preview - extract from the document
LC320DXE
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 32.0" WXGA TFT LCD
BUYER General SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LC320DXE
SUFFIX SFR1 (RoHS Verified)
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/
REVIEWED BY
/
PREPARED BY
/
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG Display Co., Ltd.
Ver. 1.2 1 / 35
LC320DXE
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 4
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 10
3-4 LVDS SIGNAL SPECIFICATIONS 11
3-5 COLOR DATA REFERENCE 12
3-6 POWER SEQUENCE 13
4 OPTICAL SPECIFICATIONS 14
5 MECHANICAL CHARACTERISTICS 20
6 RELIABILITY 23
7 INTERNATIONAL STANDARDS 24
7-1 SAFETY 24
7-2 EMC 24
7-3 ENVIRONMENT 24
8 PACKING 25
8-1 INFORMATION OF LCM LABEL 25
8-2 PACKING FORM 25
9 PRECAUTIONS 26
9-1 MOUNTING PRECAUTIONS 26
9-2 OPERATING PRECAUTIONS 26
9-3 ELECTROSTATIC DISCHARGE CONTROL 27
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 27
9-5 STORAGE 27
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 27
Ver. 1.2 2 / 35
LC320DXE
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
1.0 Apr, 08, 2013 - CAS Version 1.0 Release
- Final Specification
Ver. 1.2 3 / 35
LC320DXE
Product Specification
1. General Description
The LC320DXE is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
bac k l i ght s ys tem . T he m atr ix em p lo ys a - S i T hin F i lm T rans is tor as the ac t i v e e lem e nt .
It is a transmissive display type which is operating in the normally black mode. It has a 31.51 inch diagonally
measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in Horizontal stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus presenting a palette of more than 16.7M(6bit + FRC) colors.
It has been designed to apply the 8-bit 1-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini-LVDS(RGB)
EEPROM
Source Driver Circuit
SCL SDA
S1 S1366
LVDS Select #9 G1
CN1
(30pin) Timing Controller
LVDS 1Port [LVDS Rx] Control
Signals TFT - LCD Panel
