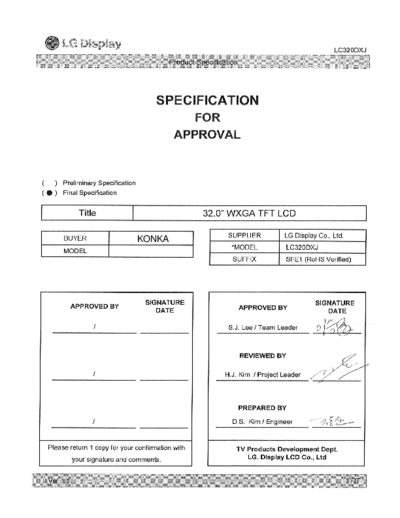

Image preview - the first page of the document
![Panel_LG_Display_LC320DXJ-SFE1_0_[DS]](/pics/5eaf70bb29674.gif)
>> Download Panel_LG_Display_LC320DXJ-SFE1_0_[DS] documenatation <<
Text preview - extract from the document
LC320DXJ
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 32.0" WXGA TFT LCD
BUYER General SUPPLIER LG.Display Co., Ltd.
KONKA
*MODEL LC320DXJ
MODEL
SUFFIX SFE1 (RoHS Verified)
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ S.J. Lee / Team Leader
REVIEWED BY
/ H.J. Kim / Project Leader
PREPARED BY
/ D.S. Kim / Engineer
Please return 1 copy for your confirmation with TV Products Development Dept.
your signature and comments. LG. Display LCD Co., Ltd
Ver. 1.0 1 /37
LC320DXJ
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 7
3-3 SIGNAL TIMING SPECIFICATIONS 8
3-4 LVDS SIGNAL SPECIFICATION 9
3-5 INTRA INTERFACE SIGNAL SPECIFICATION 10
3-6 COLOR DATA REFERENCE 11
3-7 POWER SEQUENCE 12
4 OPTICAL SPECIFICATIONS 13
5 MECHANICAL CHARACTERISTICS 19
6 MECHANICAL DIMENSION 20
6-1 BOARD ASSEMBLY DIMENSION 20
6-2 CONTROL BOARD ASSEMBLY DIMENSION 21
6-3 FFC DIMENSION 22
7 RELIABILITY 23
8 INTERNATIONAL STANDARDS 24
8-1 ENVIRONMENT 24
9 PACKING 25
8-2 PACKING FORM 25
10 PRECAUTIONS 26
10-1 MOUNTING PRECAUTIONS 26
10-2 OPERATING PRECAUTIONS 26
10-3 ELECTROSTATIC DISCHARGE CONTROL 27
10-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 27
10-5 STORAGE 27
Ver. 1.0 2 /37
LC320DXJ
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.1 Sep, 19, 2012 - Preliminary Specification(First Draft)
0.2 Oct, 11, 2012 - Kit. Biz New CAS Up-dated
0.3 Jan, 07, 2013 4 Up-dated General Features
15 Up-dated Table 6. OPTICAL CHARACTERISTICS
25, 28, 29 Up-dated 9-1. Packing Form, APPENDIX-I, APPENDIX-I-2
1.0 Jan, 08, 2013 - CAS Version 1.0 Release
- Final Specification
Ver. 1.0 3 /37
LC320DXJ
Product Specification
1. General Description
The LC320DDXJ is a Color Active Matrix Liquid Crystal Display with an integral the Source PCB and Gate
implanted on Panel (GIP). The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 31.51 inch diagonally measured
ac tive dis pla y area wi th W XGA r es olution ( 768 vertic al b y 1366 hori zontal pix el arra y) .
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7M(6bit + FRC) colors.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini-LVDS(RGB)
EEPROM
Source Driver Circuit
SCL SDA
S1 S1366
LVDS Select #9 G1
CN1
(30pin) Timing Controller
LVDS 1Port [LVDS Rx] Control
Signals TFT - LCD Panel
+12.0V (1366 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
