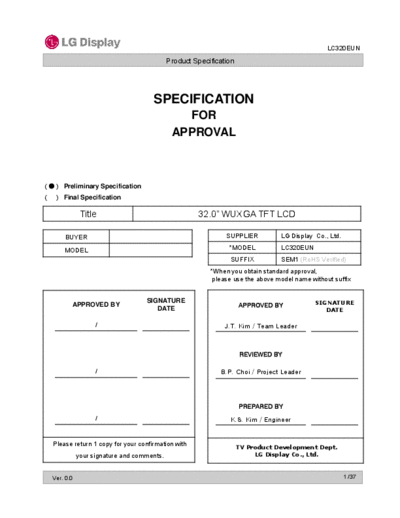

Image preview - the first page of the document
![Panel_LG_Display_LC320EUN-SEM1_2_[DS]](/pics/5eaf733d5cac3.gif)
>> Download Panel_LG_Display_LC320EUN-SEM1_2_[DS] documenatation <<
Text preview - extract from the document
LC320EUN
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 32.0" WUXGA TFT LCD
BUYER SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LC320EUN
SUFFIX SEM1 (RoHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY
DATE APPROVED BY
DATE
/ J.T. Kim / Team Leader
REVIEWED BY
/ B.P. Choi / Project Leader
PREPARED BY
/ K.S. Kim / Engineer
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG Display Co., Ltd.
Ver. 0.0 1 /37
LC320EUN
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 10
3-4 LVDS SIGNAL SPECIFICATIONS 11
3-5 COLOR DATA REFERENCE 14
3-6 POWER SEQUENCE 15
4 OPTICAL SPECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 21
6 RELIABILITY 24
7 INTERNATIONAL STANDARDS 25
7-1 SAFETY 25
7-2 EMC 25
7-3 ENVIRONMENT 25
8 PACKING 26
8-1 INFORMATION OF LCM LABEL 26
8-2 PACKING FORM 26
9 PRECAUTIONS 27
9-1 MOUNTING PRECAUTIONS 27
9-2 OPERATING PRECAUTIONS 27
9-3 ELECTROSTATIC DISCHARGE CONTROL 28
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 28
9-5 STORAGE 28
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 28
Ver. 0.0 2 /37
LC320EUN
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.0 July, 19, 2011 - Preliminary Specification (First Draft)
Ver. 0.0 3 /37
LC320EUN
Product Specification
1. General Description
The LC320EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
b ac k l i g ht s ys t em . T he m a t r i x em p l o ys a - S i T h i n F i lm T r an s is t or a s t he a c t i v e e l em en t .
It is a transmissive display type which is operating in the normally black mode. It has a 31.55 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Milion colors.
It has been designed to apply the 8-bit 2-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini-LVDS(RGB)
LVDS EEPROM
Source Driver Circuit
2Port
SCL SDA S1 S1920
LVDS
Select LVDS 1,2 G1
Timing Controller
OPC
Enable
Option
signal
LVDS Rx + OPC + DGA TFT - LCD Panel
