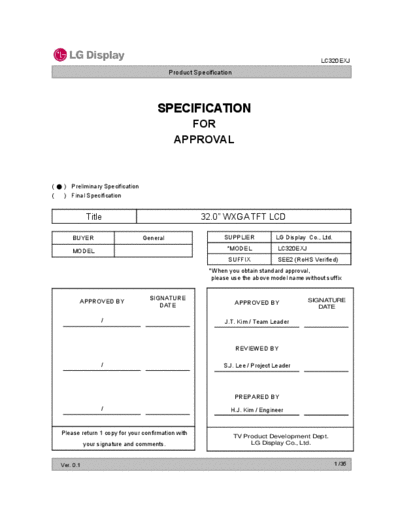

Image preview - the first page of the document
![Panel_LG_Display_LC320EXJ-SEE2_0_[DS]](/pics/5eaf73b236d5c.gif)
>> Download Panel_LG_Display_LC320EXJ-SEE2_0_[DS] documenatation <<
Text preview - extract from the document
LC320EXJ
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 32.0" WXGA TFT LCD
BUYER General SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LC320EXJ
SUFFIX SEE2 (RoHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J.T. Kim / Team Leader
REVIEWED BY
/ S.J. Lee / Project Leader
PREPARED BY
/ H.J. Kim / Engineer
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG Display Co., Ltd.
Ver. 0.1 1 /35
LC320EXJ
Product Specification
CONTENTS
Number
N b ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 7
3-3 SIGNAL TIMING SPECIFICATIONS 8
3-4 LVDS SIGNAL SPECIFICATION 9
3-5 INTRA INTERFACE SIGNAL SPECIFICATION 12
3-6 COLOR DATA REFERENCE 13
3-7 POWER SEQUENCE 14
4 OPTICAL SPECIFICATIONS 15
5 MECHANICAL CHARACTERISTICS 18
6 MECHANICAL DIMENSION 19
6-1 BOARD ASSEMBLY DIMENSION 19
6-2 CONTROL BOARD ASSEMBLY DIMENSION 20
7 RELIABILITY 21
8 INTERNATIONAL STANDARDS 22
81
8-1 ENVIRONMENT 22
9 PACKING 23
8-2 PACKING FORM 23
10 PRECAUTIONS 24
10-1 MOUNTING PRECAUTIONS 24
10-2 OPERATING PRECAUTIONS 24
10-3
10 3 ELECTROSTATIC DISCHARGE CONTROL 25
10-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 25
10-5 STORAGE 25
Ver. 0.1 2 /35
LC320EXJ
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.1 Apr. 15, 2013 - Preliminary Specification (First Draft)
Ver. 0.1 3 /35
LC320EXJ
Product Specification
1. General Description
The LC320EXJ is a Color Active Matrix Liquid Crystal Display with an integral the Source PCB and Gate
implanted on Panel (GIP). The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 31.5 inch diagonally measured
active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7M(6bit + A-FRC) colors.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important
important.
RGB
EEPROM
Source Driver Circuit
SCL SDA
S1 S1366
LVDS Select #9
G1
CN1
LVDS 1Port (30pin) Timing Controller
[LVDS Rx] Control TFT - LCD Panel
Signals
