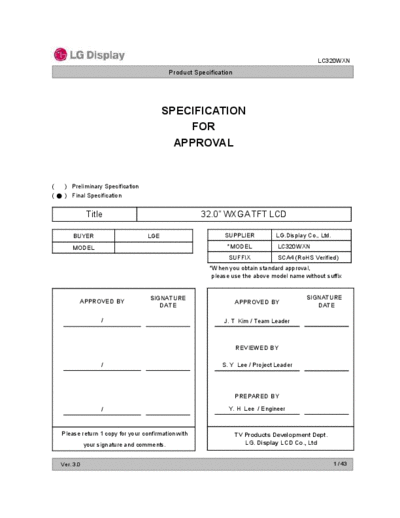

Image preview - the first page of the document
![Panel_LG_Display_LC320WXN-SCA1_0_[DS]](/pics/5eaf770e9ddba.gif)
>> Download Panel_LG_Display_LC320WXN-SCA1_0_[DS] documenatation <<
Text preview - extract from the document
LC320WXN
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 32.0" WXGA TFT LCD
BUYER LGE SUPPLIER LG.Display Co., Ltd.
MODEL *MODEL LC320WXN
SUFFIX SCA4 (RoHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J. T Kim / Team Leader
REVIEWED BY
/ S. Y Lee / Project Leader
PREPARED BY
/ Y. H Lee / Engineer
Please return 1 copy for your confirmation with TV Products Development Dept.
your signature and comments. LG. Display LCD Co., Ltd
Ver. 3.0 1 / 43
LC320WXN
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 10
3-4 LVDS SIGNAL SPECIFICATIONS 11
3-5 COLOR DATA REFERENCE 14
3-6 POWER SEQUENCE 15
4 OPTICAL SPECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 21
6 RELIABILITY 24
7 INTERNATIONAL STANDARDS 25
7-1 SAFETY 25
7-2 EMC 25
7-3 ENVIRONMENT 25
8 PACKING 26
8-1 INFORMATION OF LCM LABEL 26
8-2 PACKING FORM 26
9 PRECAUTIONS 27
9-1 MOUNTING PRECAUTIONS 27
9-2 OPERATING PRECAUTIONS 27
9-3 ELECTROSTATIC DISCHARGE CONTROL 28
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 28
9-5 STORAGE 28
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 28
Ver. 3.0 2 / 43
LC320WXN
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
1.0 Mar, 15, 2011 3 Updated General Features.
6 Updated Electrical Characteristics of Backlight.
9 Updated Signal Timing Specification.
10 Updated Signal Timing Specifications.
20 Updated Mechanical Characteristics.
21, 22 Updated Mechanical Drawings.
25 Updated Information of LCM Label.
31 Added Production Site Information.
2.0 June,30,2011 23 Updated Cover Bottom REAR View.
3.0 July,05,2011 23 Updated Cover Bottom REAR View.
- Final Specifications.
4.0 Aug,29,2012 - Panel Fab. Multi(P8/P9)
Ver. 3.0 3 / 43
LC320WXN
Product Specification
1. General Description
The LC320WXN is a Color Active Matrix Liquid Crystal Display with an integral External Electrode Fluorescent
Lamp(EEFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 31.51 inch diagonally
measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7M(true) colors.
It has been designed to apply the 8-bit 1-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini-LVDS(RGB)
EEPROM
Source Driver Circuit
OPC Enable SCL SDA S1 S1366
ExtVBR-B G1
VBR-B out LVDS 1 Timing Controller
LVDS Rx + OPC + DGA + ODC
LVDS (30pin)
Option Integrated Control TFT - LCD Panel
signal
1Port CN1
