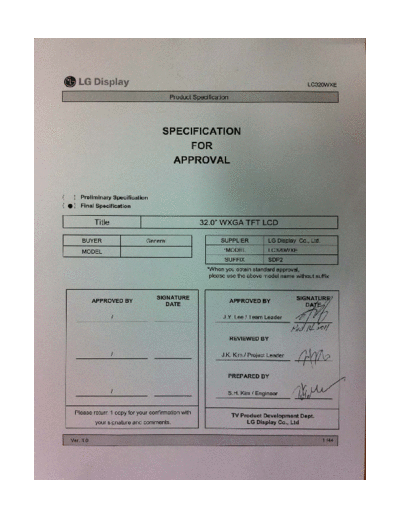

Image preview - the first page of the document
![Panel_LG_Display_LC320WXE-SDP2_0_[DS]](/pics/5eaf76de7881d.gif)
>> Download Panel_LG_Display_LC320WXE-SDP2_0_[DS] documenatation <<
Text preview - extract from the document
LC320WXE
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 32.0" WXGA TFT LCD
BUYER SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LC320WXE
SUFFIX SDP2
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J.Y. Lee / Team Leader
REVIEWED BY
/ J.K. Kim / Project Leader
PREPARED BY
/ S.H. Kim / Engineer
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG Display Co., Ltd
Ver. 1.1 1 /44
LC320WXE
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 10
3-3 SIGNAL TIMING SPECIFICATIONS 12
3-4 SIGNAL TIMING WAVEFORMS 13
3-5 COLOR DATA REFERENCE 14
3-6 POWER SEQUENCE 15
4 OPTICAL SPECIFICATIONS 16
5 MECHANICAL CHARACTERISTICS 22
6 RELIABILITY 25
7 INTERNATIONAL STANDARDS 26
7-1 SAFETY 26
7-2 EMC 26
8 PACKING 27
8-1 INFORMATION OF LCM LABEL 27
8-2 PACKING FORM 27
9 PRECAUTIONS 28
9-1 MOUNTING PRECAUTIONS 28
9-2 OPERATING PRECAUTIONS 28
9-3 ELECTROSTATIC DISCHARGE CONTROL 29
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 29
9-5 STORAGE 29
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 29
Ver. 1.1 2 /44
LC320WXE
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.1 Jan, 10, 2011 - Preliminary Specification (First Draft)
1.0 Mar.14..2011 - All TBD spec is deleted
27 8-1 Information of LCM Label is changed
8-2 packing form is changed
27
box->pallet
CR min spec is changed
16
850- 800
All Color Coordinate specification (TBD) is deleted
& some TBD value is changed
Gy 0.584(TBD) 0.577
By 0.697(TBD) 0.069 : have a decimal point error in ver 0.1
16 Wy 0.285(TBD) 0.279
G to G Typ:5 6
G to G Max:8 9
Color Coordinate specification is changed
Wx/Wy 0.261/0.279 0.283/0.290
16
1.1 Mar.23. 2011 Rx 0.648 0.654
Gx/Gy 0.273/0.577 0.278/0.581
Vs : Striking Voltage
7
Min : None, Max : 1100 Min : 1100, Max : 1320
Ver. 1.1 3 /44
LC320WXE
Product Specification
1. General Description
The LC320WXE is a Color Active Matrix Liquid Crystal Display with an integral External Electrode Fluorescent
Lamp(EEFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 31.51 inch diagonally measured
acti ve d ispl a y area wi th WXGA reso lution (768 ver tica l by 1366 ho r izontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in Horizontal stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus presenting a palette of more than 16.7M(6bit+AFRC) colors.
It has been designed to apply the 8-bit 1-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
EEPROM
SCL SDA
+12.0V
LVDS 1Port Timing Controller
TFT - LCD Panel
