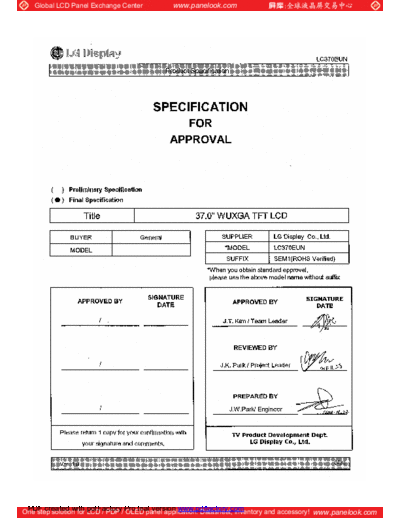

Image preview - the first page of the document
![Panel_LG_Display_LC370EUN-SEM1_0_[DS]](/pics/5eaf786158c43.gif)
>> Download Panel_LG_Display_LC370EUN-SEM1_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LC370EUN
Product Specification
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LC370EUN
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 37.0" WUXGA TFT LCD
BUYER General SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LC370EUN
SUFFIX SEM1(ROHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J.T. Kim / Team Leader
REVIEWED BY
/ J.K. Park / Project Leader
PREPARED BY
/ J.W.Park/ Engineer
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG Display Co., Ltd.
Ver. 1.0 0/36
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LC370EUN
Product Specification
CONTENTS
Number ITEM Page
COVER 0
CONTENTS 1
RECORD OF REVISIONS 2
1 GENERAL DESCRIPTION 3
2 ABSOLUTE MAXIMUM RATINGS 4
3 ELECTRICAL SPECIFICATIONS 5
3-1 ELECTRICAL CHARACTERISTICS 5
3-2 INTERFACE CONNECTIONS 7
3-3 SIGNAL TIMING SPECIFICATIONS 9
3-4 SIGNAL TIMING WAVEFORMS 10
3-5 COLOR DATA REFERENCE 13
3-6 POWER SEQUENCE 14
4 OPTICAL SPECIFICATIONS 16
5 MECHANICAL CHARACTERISTICS 20
6 RELIABILITY 23
7 INTERNATIONAL STANDARDS 24
7-1 SAFETY 24
7-2 EMC 24
7-3 ENVIRONMENT 24
8 PACKING 25
8-1 DESIGNATION OF LOT MARK 25
8-2 PACKING FORM 25
9 PRECAUTIONS 26
9-1 MOUNTING PRECAUTIONS 26
9-2 OPERATING PRECAUTIONS 26
9-3 ELECTROSTATIC DISCHARGE CONTROL 27
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 27
9-5 STORAGE 27
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 27
Ver. 1.0 1/36
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LC370EUN
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.1 Oct, 05, 2011 - Preliminary Specification(First Draft)
0.2 Nov, 15, 2011
1.0 Nov.23.2011 - CAS Version 1.0 Release
Final Specification
Ver. 1.0 2/36
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LC370EUN
Product Specification
1. General Description
The LC370EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
b a ckl i g ht sy st em . T he m at ri x em pl oys a-Si T hi n F ilm T ransi st or as t he act iv e el em ent .
It is a transmissive display type which is operating in the normally black mode. It has a 36.5 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Milion colors.
It has been designed to apply the 8-bit 2-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
EPI(RGB)
LVDS EEPROM
Source Driver Circuit
2Port
SCL SDA S1 S1920
LVDS
Select LVDS 1,2 G1
Timing Controller
OPC
Enable
Option
signal
LVDS Rx + OPC + DGA TFT - LCD Panel
CN1 Integrated (1920 RGB 1080 pixels)
(51pin)
Control
Signals [Gate In Panel]
ExtVBR-B I2C G1080
+12.0V
Power Circuit Power Signals
PWM_OUT CN2 Block
1~3 (4 pin) Scanning Block 1
PWM_OUT
1~3
Scanning Block 2
+24.0V, GND, On/Off LED Driver
Scanning Block 3
General Features
Active Screen Size 36.5 inches(927.2mm) diagonal
Outline Dimension 837.2(H) 490.6(V) X 9.9(B) /22.7 mm(D) (Typ.)
Pixel Pitch 0.4209 mm x 0.4209 mm
Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
Color Depth 8bit, 16.7 Million colors
Luminance, White 360 cd/m2 (Center 1point ,Typ.)
Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))
Power Consumption Total 47.1W (Typ.) [Logic= 6.1W, LED Driver=41W (ExtVbr_B=100% )]
Weight 7.5 Kg (Typ.)
Display Mode Transmissive mode, Normally black
Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%)
Ver. 1.0 3/36
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LC370EUN
Product Specification
2. Absolute Maximum Ratings
The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage
to the LCD module.
Table 1. ABSOLUTE MAXIMUM RATINGS
Value
Parameter Symbol Unit Note
Min Max
LCD Circuit VLCD -0.3 +14.0 VDC
Power Input Voltage
Driver VBL -0.3 + 27.0 VDC
ON/OFF VOFF / VON -0.3 +5.5 VDC 1
Driver Control Voltage
Brightness EXT VBR-B -0.3 +4.0 VDC
T-Con Option Selection Voltage VLOGIC -0.3 +4.0 VDC
Operating Temperature TOP 0 +50 C
2,3
Storage Temperature TST -20 +60 C
Panel Front Temperature TSUR - +68 C 4
Operating Ambient Humidity HOP 10 90 %RH
2,3
Storage Humidity HST 10 90 %RH
