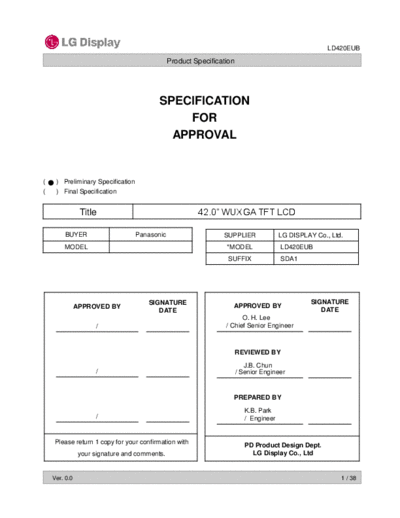

Image preview - the first page of the document
![Panel_LG_Display_LD420EUB-SDA1_1_[DS]](/pics/5eafc591de114.gif)
>> Download Panel_LG_Display_LD420EUB-SDA1_1_[DS] documenatation <<
Text preview - extract from the document
LD420EUB
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 42.0" WUXGA TFT LCD
BUYER Panasonic SUPPLIER LG DISPLAY Co., Ltd.
MODEL *MODEL LD420EUB
SUFFIX SDA1
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
O. H. Lee
/ / Chief Senior Engineer
REVIEWED BY
J.B. Chun
/ / Senior Engineer
PREPARED BY
K.B. Park
/ / Engineer
Please return 1 copy for your confirmation with PD Product Design Dept.
your signature and comments. LG Display Co., Ltd
Ver. 0.0 1 / 38
LD420EUB
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 11
3-4 LVDS SIGNAL SPECIFICATIONS 12
3-5 COLOR DATA REFERENCE 15
3-6 POWER SEQUENCE 16
4 OPTICAL SPECIFICATIONS 18
5 MECHANICAL CHARACTERISTICS 22
6 RELIABILITY 25
7 INTERNATIONAL STANDARDS 26
7-1 SAFETY 26
7-2 EMC 26
7-3 ENVIRONMENT 26
8 PACKING 27
8-1 INFORMATION OF LCM LABEL 27
8-2 PACKING FORM 27
9 PRECAUTIONS 28
9-1 MOUNTING PRECAUTIONS 28
9-2 OPERATING PRECAUTIONS 28
9-3 ELECTROSTATIC DISCHARGE CONTROL 29
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 29
9-5 STORAGE 29
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 29
9-7 APPROPRIATE CONDITION FOR PUBLIC DISPLAY 29
Ver. 0.0 2 / 38
LD420EUB
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.0 Nov. 2, 2012 - Preliminary specification (First Draft)
Ver. 0.0 3 / 38
LD420EUB
Product Specification
1. General Description
The LD420EUB is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
b ac k l i g ht s ys t em . T he m a t r i x em p l o ys a - S i T h i n F i lm T r an s is t or a s t he a c t i v e e l em en t .
It is a transmissive display type which is operating in the normally black mode. It has a 42.02 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.06Bilion colors. It has been designed to apply the 10-bit 2-port
LVDS interface. It is intended to support Public Display where high brightness, super wide viewing angle, high
color gamut, high color depth and fast response time are important.
Mini-LVDS(RGB)
EEPROM
Source Driver Circuit
SCL SDA S1 S1920
G1
LVDS LVDS 1,2 Timing Controller
2Port LVDS Rx + ODC
LVDS
Option Integrated Control TFT - LCD Panel
signal
