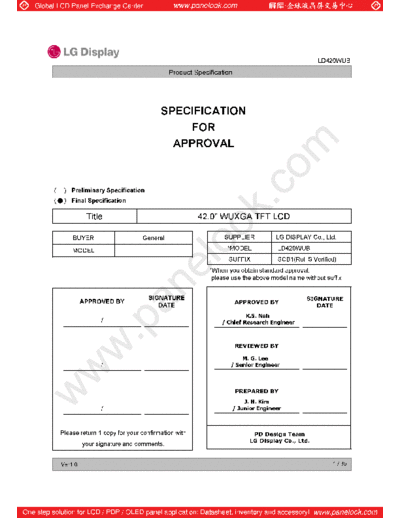

Image preview - the first page of the document
![Panel_LG_Display_LD420WUB-SCB1_0_[DS]](/pics/5eafc604d8b25.gif)
>> Download Panel_LG_Display_LD420WUB-SCB1_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LD420WUB
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 42.0" WUXGA TFT LCD
BUYER General SUPPLIER LG DISPLAY Co., Ltd.
MODEL *MODEL LD420WUB
SUFFIX SCB1(RoHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
K.S. Nah
/ / Chief Research Engineer
REVIEWED BY
M. G. Lee
/ / Senior Engineer
PREPARED BY
J. H. Kim
/ / Junior Engineer
Please return 1 copy for your confirmation with PD Design Team
LG Display Co., Ltd.
your signature and comments.
Ver1.0 1 / 35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD420WUB
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 10
3-4 SIGNAL TIMING WAVEFORMS 11
3-5 COLOR DATA REFERENCE 14
3-6 POWER SEQUENCE 15
4 OPTICAL SPECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 21
6 RELIABILITY 24
7 INTERNATIONAL STANDARDS 25
7-1 SAFETY 25
7-2 EMC 25
8 PACKING 26
8-1 INFORMATION OF LCM LABEL 26
8-2 PACKING FORM 26
9 PRECAUTIONS 27
9-1 MOUNTING PRECAUTIONS 27
9-2 OPERATING PRECAUTIONS 27
9-3 ELECTROSTATIC DISCHARGE CONTROL 28
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 28
9-5 STORAGE 28
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 28
9-7 APPROPRIATE CONDITION FOR PUBLIC DISPLAY 28
Ver1.0 2 / 35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD420WUB
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.0 July. 19. 2010 - Preliminary Specification
0.1 Oct. 05. 2010 17 Table 11. OPTICAL CHARACTERISTICS
Nov. 26. 2010 17 Defined CR Spec for Min. value
1.0 Nov. 26. 2010 - Final Specification
Ver1.0 3 / 35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD420WUB
Product Specification
1. General Description
LD420WUB is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 42 inch diagonally measured
active dis pla y area with W UXGA resolution (1080 vertical by 1920 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8bit or 10-bit gray scale signal for
each dot, thus presenting a palette of more than 1.06Billion of colors.
It has been designed to apply the 10-bit 2 port LVDS interface.
It is intended to support Public Display where high brightness, super wide viewing angle, high color gamut,
high color depth and fast moving picture response time are important.
Mini-LVDS(RGB)
EEPROM
Source Driver Circuit
SCL SDA S1 S1920
G1
LVDS LVDS 1,2 Timing Controller
2Port LVDS Rx + DGA + ODC
LVDS
Option Integrated Control TFT - LCD Panel
signal
