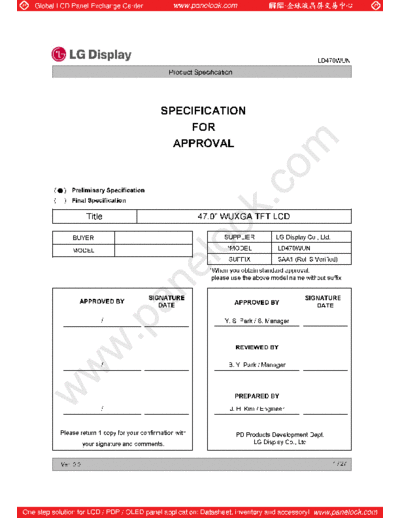

Image preview - the first page of the document
![Panel_LG_Display_LD470WUN-SAA1_0_[DS]](/pics/5eafc7ff55997.gif)
>> Download Panel_LG_Display_LD470WUN-SAA1_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LD470WUN
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 47.0" WUXGA TFT LCD
BUYER SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LD470WUN
SUFFIX SAA1 (RoHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ Y. S Park / S. Manager
REVIEWED BY
/ B. Y Park / Manager
PREPARED BY
/ J. H Kim / Engineer
Please return 1 copy for your confirmation with PD Products Development Dept.
your signature and comments. LG Display Co., Ltd
Ver. 0.0 1 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD470WUN
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 10
3-4 SIGNAL TIMING WAVEFORMS 11
3-5 COLOR DATA REFERENCE 12
3-6 POWER SEQUENCE 13
4 OPTICAL SPECIFICATIONS 15
5 MECHANICAL CHARACTERISTICS 19
6 RELIABILITY 22
7 INTERNATIONAL STANDARDS 23
7-1 SAFETY 23
7-2 EMC 23
8 PACKING 24
8-1 DESIGNATION OF LOT MARK 24
8-2 PACKING FORM 24
9 PRECAUTIONS 25
9-1 MOUNTING PRECAUTIONS 25
9-2 OPERATING PRECAUTIONS 25
9-3 ELECTROSTATIC DISCHARGE CONTROL 26
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 26
9-5 STORAGE 26
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 26
9-7 APPROPRIATE CONDITION FOR PUBLIC DISPLAY 26
Ver. 0.0 2 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD470WUN
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.0 June, 02, 2008 - First specification released
Ver. 0.0 3 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD470WUN
Product Specification
1. General Description
The LD470WUN is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 46.96 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.07 Billion colors.
It has been designed to apply the 10-bit 2-port LVDS interface.
It is intended to support Public Display where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini-LVDS(RGB)
EEPROM
Source Driver Circuit
SCL SDA S1 S1920
+12.0V
G1
Gate Driver Circuit
LVDS Timing Controller
CN1 [LVDS Rx + ODC
2Port (51pin)
integrated]
DCR
Enable TFT - LCD Panel
VBR_OUT (1920 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
