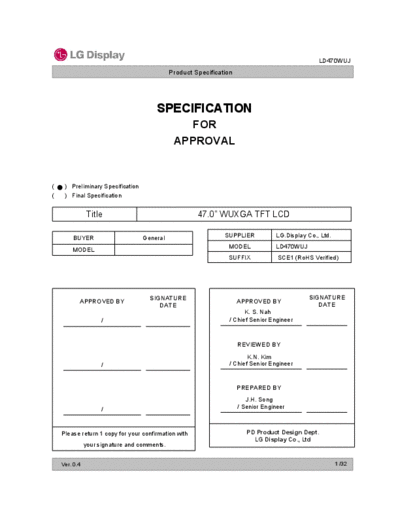

Image preview - the first page of the document
![Panel_LG_Display_LD470WUJ-SCE1_1_[DS]](/pics/5eafc7ed5af68.gif)
>> Download Panel_LG_Display_LD470WUJ-SCE1_1_[DS] documenatation <<
Text preview - extract from the document
LD470WUJ
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 47.0" WUXGA TFT LCD
BUYER General SUPPLIER LG.Display Co., Ltd.
MODEL LD470WUJ
MODEL
SUFFIX SCE1 (RoHS Verified)
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
K. S. Nah
/ / Chief Senior Engineer
REVIEWED BY
K.N. Kim
/ / Chief Senior Engineer
PREPARED BY
J.H. Song
/ / Senior Engineer
Please return 1 copy for your confirmation with PD Product Design Dept.
LG Display Co., Ltd
your signature and comments.
Ver. 0.4 1 /32
LD470WUJ
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 7
3-3 SIGNAL TIMING SPECIFICATIONS 8
3-4 LVDS SIGNAL SPECIFICATION 9
3-5 COLOR DATA REFERENCE 12
3-6 POWER SEQUENCE 13
4 OPTICAL SPECIFICATIONS 14
5 MECHANICAL CHARACTERISTICS 18
6 RELIABILITY 20
7 INTERNATIONAL STANDARDS 21
8 PACKING 22
8-1 PACKING FORM 22
9 PRECAUTIONS 23
9-1 ASSEMBLY PRECAUTIONS 23
9-2 OPERATING PRECAUTIONS 23
9-3 ELECTROSTATIC DISCHARGE CONTROL 24
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 24
9-5 STORAGE 24
Ver. 0.4 2 /32
LD470WUJ
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.0 Jun, 19, 2012 - Preliminary Specification(First Draft)
0.1 Jul, 20, 2012 19 Updated the Front view
0.2 Aug, 06, 2012 2 Updated the Absolute Maximum Ratings
15 Updated the Contrast Ratio
0.3 Jul, 20, 2012 4 pdated the Surface Treatment
19 Updated the Front view
0.4 Aug, 13, 2012 14 Updated the Optical Specification
15, 16 Updated the Notes
Ver. 0.4 3 /32
LD470WUJ
Product Specification
1. General Description
The LD470WUJ is a Color Active Matrix Liquid Crystal Display with an integral the Source PCB and Gate
implanted on Panel (GIP). The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 46.96 inch diagonally measured
active dis pla y area wi th W UXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.07 Billion colors.
It has been designed to apply the 10-bit 2-port LVDS interface.
It is intended to support Public Display where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini-LVDS(RGB)
EEPROM
Source Driver Circuit
SCL SDA S1 S1920
G1
LVDS LVDS 1,2 Timing Controller
2Port LVDS Rx + DCA + ODC
LVDS
Option Integrated Control TFT - LCD Panel
signal
