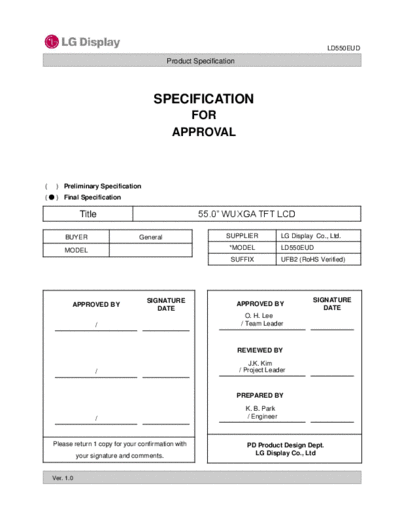

Image preview - the first page of the document
![Panel_LG_Display_LD550EUD-UFB2_1_[DS]](/pics/5eafc8e2dd945.gif)
>> Download Panel_LG_Display_LD550EUD-UFB2_1_[DS] documenatation <<
Text preview - extract from the document
LD550EUD
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 55.0" WUXGA TFT LCD
BUYER General SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LD550EUD
SUFFIX UFB2 (RoHS Verified)
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
O. H. Lee
/ / Team Leader
REVIEWED BY
J.K. Kim
/ / Project Leader
PREPARED BY
K. B. Park
/ / Engineer
Please return 1 copy for your confirmation with PD Product Design Dept.
your signature and comments. LG Display Co., Ltd
Ver. 1.0
LD550EUD
Product Specification
CONTENTS
Number ITEM Page
COVER 0
CONTENTS 1
RECORD OF REVISIONS 2
1 GENERAL DESCRIPTION 3
2 ABSOLUTE MAXIMUM RATINGS 4
3 ELECTRICAL SPECIFICATIONS 5
3-1 ELECTRICAL CHARACTERISTICS 5
3-2 INTERFACE CONNECTIONS 7
3-3 SIGNAL TIMING SPECIFICATIONS 9
3-4 SIGNAL TIMING WAVEFORMS 12
3-5 COLOR DATA REFERENCE 15
3-6 POWER SEQUENCE 16
4 OPTICAL SPECIFICATIONS 18
5 MECHANICAL CHARACTERISTICS 22
6 RELIABILITY 25
7 INTERNATIONAL STANDARDS 26
7-1 SAFETY 26
7-2 EMC 26
7-3 ENVIRONMENT 26
8 PACKING 27
8-1 Information of LCM Label 27
8-2 PACKING FORM 27
9 PRECAUTIONS 28
9-1 MOUNTING PRECAUTIONS 28
9-2 OPERATING PRECAUTIONS 28
9-3 ELECTROSTATIC DISCHARGE CONTROL 29
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 29
9-5 STORAGE 29
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 29
9-7 APPROPRATE CONDITION FOR PUBLIC DISPLAY 29
Ver. 1.0 1 /39
LD550EUD
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.1 Oct, 5, 2012 - Preliminary Specification (First Draft)
0.2 Oct, 23, 2012 25 Shock level 15G20G
TCON Pull up/down resister value change
0.3 Dec, 13, 2012 38
(Pull up 65 93, Pull down 50 95)
1.0 May, 13, 2013 - Final specification
Ver. 1.0 2 /39
LD550EUD
Product Specification
1. General Description
The LD550EUD is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 54.64 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.06Bilion colors.
It has been designed to apply the 10-bit 4-port LVDS interface.
It is intended to support Public Display where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
EPI(RGB)
CN2 EEPROM
LVDS (41pin) Source Driver Circuit
2Port
SCL SDA S1 S1920
LVDS 3,4
LVDS G1
LVDS 1,2
2Port Timing Controller
LVDS
Select
Option
signal
LVDS Rx + ODC + DGA TFT - LCD Panel
