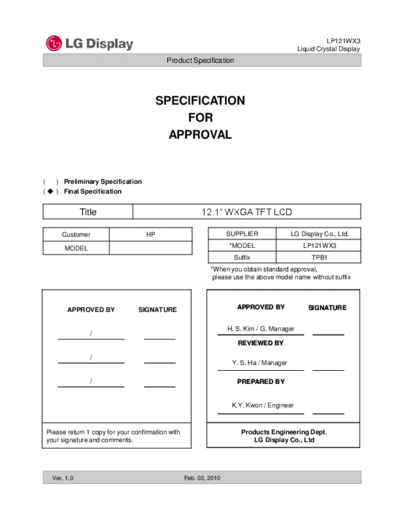

Image preview - the first page of the document
![Panel_LG_Display_LP121WX3-TPB1_0_[DS]](/pics/5eafd8305597a.gif)
>> Download Panel_LG_Display_LP121WX3-TPB1_0_[DS] documenatation <<
Text preview - extract from the document
LP121WX3
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 12.1" WXGA TFT LCD
Customer HP SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP121WX3
Suffix TPB1
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
H. S. Kim / G. Manager
/
REVIEWED BY
/
Y. S. Ha / Manager
/ PREPARED BY
K.Y. Kwon / Engineer
Please return 1 copy for your confirmation with Products Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver. 1.0 Feb. 03, 2010
LP121WX3
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6-7
3-2 INTERFACE CONNECTIONS 8
3-3 eDP SIGNAL TIMING SPECIFICATION 9
3-4 SIGNAL TIMING SPECIFICATIONS 10
3-5 SIGNAL TIMING WAVEFORMS 10
3-6 COLOR INPUT DATA REFERNECE 11
3-7 POWER SEQUENCE 12
4 OPTICAL SFECIFICATIONS 13-15
5 MECHANICAL CHARACTERISTICS 16-19
6 RELIABLITY 20
7 INTERNATIONAL STANDARDS
7-1 SAFETY 21
7-2 EMC 21
7-3 Environment 21
8 PACKING
8-1 DESIGNATION OF LOT MARK 22
8-2 PACKING FORM 22
9 PRECAUTIONS 23-24
A LGD Proposal for system cover design. 25-29
B Enhanced Extended Display Identification Data 30-32
Ver. 1.0 Feb. 03, 2010
LP121WX3
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 Feb. 10, 2009 All First Draft (Preliminary Specification) -
0.1 Jul. 07, 2009 4,6,7 Electrical Characteristics is updated 0.0
12 Power Sequence is updated
17,18 Mechanical Characteristics is updated
21 International Standards is updated
25 ~ 27 EDID Data is updated
0.2 Dec. 07, 2009 6 Updated the Electrical Characteristics 0.1
12 Updated the Power Sequence
25 ~ 27 Updated the EDID Data
1.0 Feb. 03, 2010 30 ~ 32 Updated the EDID data 1.0
All Final Specification
Ver. 1.0 Feb. 03, 2010
LP121WX3
Liquid Crystal Display
Product Specification
1. General Description
The LP121WX3 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 12.1 inches diagonally measured active display area with
WXGA resolution(800 vertical by 1280 horizontal pixel array). Each pixel is divided into Red, Green and
Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel
color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than
262,144 colors.
The LP121WX3 has been designed to apply the interface method that enables low power, high speed, low
EMI.
The LP121WX3 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LP121WX3 characteristics provide an excellent flat display for office automation products such as Notebook
PC.
eDP &
Timing
Control Source Driver Circuit
CN 1 User connector 30 Pin
Block 1 1280
GIP(Gate In Panel)
1
EEPROM
BLOCK
TFT-LCD Panel
POWER (1280 x 800)
BLOCK
800
LED CN2
FPC
Driver LED Backlight Ass'y
9Pin
Control & Data Power EDID signal & Power
General Features
Active Screen Size 12.1 inches diagonal
Outline Dimension 275.8 (H) ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
