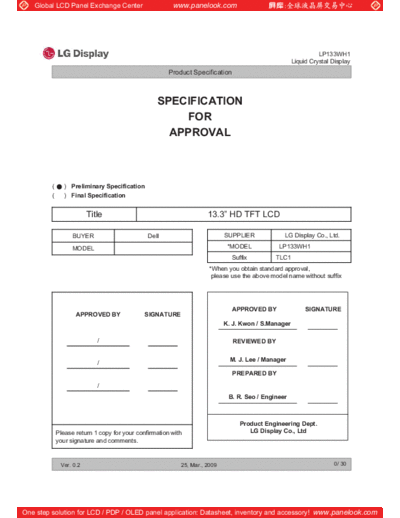

Image preview - the first page of the document
![Panel_LG_Display_LP133WH1-TLC1_0_[DS]](/pics/5eafd93170efb.gif)
>> Download Panel_LG_Display_LP133WH1-TLC1_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 13.3" HD TFT LCD
BUYER Dell SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP133WH1
Suffix TLC1
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE
APPROVED BY SIGNATURE
K. J. Kwon / S.Manager
/ REVIEWED BY
M. J. Lee / Manager
/
PREPARED BY
/
B. R. Seo / Engineer
Product Engineering Dept.
Please return 1 copy for your confirmation with LG Display Co., Ltd
your signature and comments.
Ver. 0.2 25, Mar., 2009 0/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
CONTENTS 1
RECORD OF REVISIONS 2
1 GENERAL DESCRIPTION 3
2 ABSOLUTE MAXIMUM RATINGS 4
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 5
3-2 INTERFACE CONNECTIONS 6
3-3 LVDS SIGNAL TIMING SPECIFICATIONS 8
3-4 SIGNAL TIMING SPECIFICATIONS 10
3-5 SIGNAL TIMING WAVEFORMS 10
3-6 COLOR INPUT DATA REFERNECE 11
3-7 POWER SEQUENCE 12
4 OPTICAL SFECIFICATIONS 13
5 MECHANICAL CHARACTERISTICS 16
6 RELIABLITY 23
7 INTERNATIONAL STANDARDS
7-1 SAFETY 24
7-2 EMC 24
8 PACKING
8-1 DESIGNATION OF LOT MARK 25
8-2 PACKING FORM 25
9 PRECAUTIONS 26
Ver. 0.2 25, Mar., 2009 1/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 22. Jan. 2009 - First Draft (Preliminary Specification) -
0.1 10. Feb. 2009 17 Drawing update (Change the Thickness dimension) -
0.1 10. Feb. 2009 18 Drawing update (Change the User Connector Position) -
0.2 25. Mar. 2009 6 Interface Connections update (Change the #5 pin) -
Ver. 0.2 25, Mar., 2009 2/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
1. General Description
The LP133WH1 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 13.3 inches diagonally measured active display area with
WHD resolution(1366 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green and Blue
sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color
is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144
colors.
The LP133WH1 has been designed to apply the interface method that enables low power, high speed, low
EMI.
The LP133WH1 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LP133WH1 characteristics provide an excellent flat display for office automation products such as Notebook
PC.
'
General Features
Active Screen Size 13.3 inches diagonal
Outline Dimension 308.1 (H) 183.6 (V) 5.2(D) (max.) mm
Pixel Pitch 0.2148 mm 0.2148 mm
Pixel Format 1366 horiz. by 768 vert. Pixels RGB strip arrangement
Color Depth 6-bit, 262,144 colors
Luminance, White 220 cd/m2(Typ., @ILED=TBD mA) , 5 points Average
Total TBD Watt @ LCM circuit TBD W(Typ.),
Power Consumption
B/L TBD W (Typ.), LED Driver TBD W(Typ.)
Weight 350g(Max.)
Display Operating Mode Transmissive mode, normally white
Surface Treatment Hard Coating(3H), Glare treatment of the front polarizer
RoHS Comply Yes
Ver. 0.2 25, Mar., 2009 3/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.
Table 1. ABSOLUTE MAXIMUM RATINGS
Values
Parameter Symbol Units Notes
Min Max
Power Input Voltage VCC -0.3 4.0 Vdc at 25 r 5qC
Operating Temperature TOP 0 50 qC 1
Storage Temperature HST -20 60 qC 1
Operating Ambient Humidity HOP 10 90 %RH 1
Storage Humidity HST 10 90 %RH 1
Note : 1. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39qC Max, and no condensation of water.
90% 80%
60 60%
Wet Bulb 50
Humidity[(%)RH]
Temperature [ ] Storage
40 40%
30 Operation
20
20%
10
0
10%
-20 0 10 20 30 40 50 60 70 80
Dry Bulb Temperature [ ]
Ver. 0.2 25, Mar., 2009 4/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
3. Electrical Specifications
3-1. Electrical Characteristics
The LP133WH1 requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input which powers the LED BLU.
Table 2. ELECTRICAL CHARACTERISTICS
Values
Parameter Symbol Unit Notes
Min Typ Max
LOGIC :
Power Supply Input Voltage VCC 3.0 3.3 3.6 V
Power Supply Input Current ICC - TBD TBD mA 1
Power Consumption PCC - TBD TBD W 1
Power Supply Inrush Current ICC_P - - 1500 mA
LVDS Impedance ZLVDS 90 100 110 2
BACKLIGHT : ( with LED Driver)
LED Power Input Voltage VLED 7.0 12.0 20.0 V
LED Power Input Current ILED - TBD - mA 3
LED Power Consumption PLED - TBD TBD W 3
LED Power Inrush Current ILED_P - - TBD mA
PWM Dimming Ratio - 12.5 - 100 % 4
PWM Impedance ZPWM TBD TBD TBD k
PWM Frequency FPWM 200 TBD 1000 Hz 5
PWM High Level Voltage VPWM_H 2.1 3.3 5 V
PWM Low Level Voltage VPWM_L 0 - 0.8 V
LED_EN High Voltage VLED_EN_H 2.1 3.3 5 V
LED_EN Low Voltage VLED_EN_L 0 - 0.8 V
Life Time 12,000 - - Hrs 6
Note)
1. The specified Icc current and power consumption are under the Vcc = 3.3V , 25 , fv = 60Hz condition
whereas Window XP Bliss pattern is displayed and fv is the frame frequency.
2. This impedance value is needed to proper display and measured form
LVDS Tx to the mating connector.
3. The specified LED current and power consumption are under the Vled = 12.0V , 25 , Dimming of Max
luminance whereas White pattern is displayed and fv is the frame frequency.
4. There may be a flickering or some reliability issues when LED driver is operated by under condition of
minimum.
5. The PWM Frequency has 0Hz, DC level for dimming ratio 100%. The PWM Frequency should be fixed
and continue for stable luminance levels what you want.
6. The life time is determined as the time at which brightness of LCD is 50% compare to that of initial value
at the typical LED current. These LED backlight has TBD strings on it and the typical current of LED's
string is base on TBD mA.
Ver. 0.2 25, Mar., 2009 5/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
3-2. Interface Connections
This LCD employs one interface connections, a 40 pin connector is used for the module electronics interface
and LED Driver.
The electronics interface connector is a model 20455-040E-0x manufactured by I-PEX.
Table 3. MODULE CONNECTOR PIN CONFIGURATION (CN1)
Pin Symbol Description Notes
1 NC No connection
2 VCC Power Supply, 3.3V Typ.
3 VCC Power Supply, 3.3V Typ.
4 V EEDID DDC 3.3V power
1, Interface chips
5 BIST BIST 1.1 LCD : SW, SW0624 (LCD Controller)
6 Clk EEDID DDC Clock including LVDS Receiver
7 DATA EEDID DDC Data 1.2 System : THC63LVDF823A
or equivalent
8 Odd_RIN 0- Negative LVDS differential data input * Pin to Pin compatible with LVDS
9 Odd_RIN 0+ Positive LVDS differential data input
10 GND Ground 2. Connector
2.1 LCD :20455-040E-0x, I-PEX
11 Odd_RIN 1- Negative LVDS differential data input
or its compatibles
12 Odd_RIN 1+ Positive LVDS differential data input 2.2 Mating : 20453-040T-0x, I-PEX
13 GND Ground or equivalent.
2.3 Connector pin arrangement
14 Odd_RIN 2- Negative LVDS differential data input
15 Odd_RIN 2+ Positive LVDS differential data input
16 GND Ground
17 Odd_CLKIN- Negative LVDS differential clock input
18 Odd_CLKIN+ Positive LVDS differential clock input
19 GND Ground [LCD Module Rear View]
20 NC No Connection
21 NC No Connection
22 NC No Connection
23 NC No Connection
24 NC No Connection
25 NC No Connection
26 NC No Connection
27 NC No Connection
28 NC No Connection
29 NC No Connection
30 NC No Connection
31 VLED_GND LED Ground
32 VLED_GND LED Ground
33 VLED_GND LED Ground
34 NC No Connection
35 BLIM PWM for Luminance control
36 BL_On Backlight On/Off Control
37 NC No Connection
38 VLED LED Power Supply (7V-20V)
39 VLED LED Power Supply (7V-20V)
40 VLED LED Power Supply (7V-20V)
Ver. 0.2 25, Mar., 2009 6/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
The LED backlight connector is a model TF12-9S-0.5H, manufactured by Hirose or equivalent.
Table 4. BACKLIGHT CONNECTOR PIN CONFIGURATION (CN2)
Pin Symbol Description Notes
1
2
3
4
5
6
7
8
9
Ver. 0.2 25, Mar., 2009 7/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
3-3. LVDS Signal Timing Specifications
3-3-1. DC Specification
Symb
Description Min Max Unit Notes
ol
LVDS Differential Voltage |VID| 100 600 mV -
LVDS Common mode Voltage VCM 0.6 1.8 V -
LVDS Input Voltage Range VIN 0.3 2.1 V -
3-3-2. AC Specification
Description Symbol Min Max Unit Notes
85MHz > Fclk
tSKEW - 400 + 400 ps
65MHz
LVDS Clock to Data Skew Margin
65MHz > Fclk
tSKEW - 600 + 600 ps
25MHz
LVDS Clock to Clock Skew Margin (Even
tSKEW_EO - 1/7 + 1/7 Tclk -
to Odd)
Maximum deviation
FDEV - 3 % -
of input clock frequency during SSC
Maximum modulation frequency
FMOD - 200 KHz -
of input clock during SSC
Ver. 0.2 25, Mar., 2009 8/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
< Clock skew margin between channel >
Freq.
Fmax
Fcenter
Fmin
Time
< Spread Spectrum >
3-3-3. Data Format
1) LVDS 1 Port
RCLK+
RA+/- R3 R2 R1 R0 G0 R5 R4 R3 R2 R1 R0 G0 R5 R4
RB+/- G4 G3 G2 G1 B1 B0 G5 G4 G3 G2 G1 B1 B0 G5
RC+/- B5 B4 B3 B2 DE VSYNC HSYNC B5 B4 B3 B2 DE VSYNC HSYNC
RD+/- G7 G6 R7 R6 X B7 B6 G7 G6 R7 R6 X B7 B6
Previous (N-1)th Cycle Current (Nth ) Cycle Next (N+1)th Cycle
< LVDS Data Format >
Ver. 0.2 25, Mar., 2009 9/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
3-4. Signal Timing Specifications
This is the signal timing required at the input of the User connector. All of the interface signal timing should be
satisfied with the following specifications and specifications of LVDS Tx/Rx for its proper operation.
Table 5. TIMING TABLE
ITEM Symbol Min Typ Max Unit Note
DCLK Frequency fCLK - 72.3 - MHz
Period Thp 1470 1526 1586
Hsync Width tWH 24 32 40 tCLK
Width-Active tWHA 1366 1366 1366
Period tVP 779 790 801
Vsync
Width tWV 2 5 8 tHP
Width-Active tWVA 768 768 768
Horizontal back porch tHBP 72 80 124
tCLK
Data Horizontal front porch tHFP 8 48 56
Enable Vertical back porch tVBP 8 14 20
tHP
Vertical front porch tVFP 1 3 5
Note)
1. In this documentation, all reliabilities are specified for timing specification based on refresh rate of 60Hz.
However, LP133WH1 has a good actual performance even at lower refresh rate( eg. 40Hz or 50Hz) for
power saving mode, whereas LP133WH1 is secured only for function under lower refresh rate.
60Hz at Normal mode, 50Hz ,40 Hz at Power save mode. Don't care Flicker level (power save mode).
3-5. Signal Timing Waveforms Condition : VCC =2.5V
High: 0.7VCC
Data Enable, Hsync, Vsync
Low: 0.3VCC
tCLK 0.5 Vcc
DCLK
tHP
Hsync t
WH
tHBP tWHA tHFP
Data Enable
tVP
tWV
Vsync tWVA tVFP
tVBP
Data Enable
Ver. 0.2 25, Mar., 2009 10/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
3-6. Color Input Data Reference
The brightness of each primary color (red,green and blue) is based on the 6-bit gray scale data input for the
color ; the higher the binary input, the brighter the color. The table below provides a reference for color
versus data input.
Table 6. COLOR DATA REFERENCE
Input Color Data
RED GREEN BLUE
Color
MSB LSB MSB LSB MSB LSB
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
Basic Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
Color Cyan 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1
Magenta 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED (00) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED (01) 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0
RED ... ... ... ...
RED (62) 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0
RED (63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
GREEN (00) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GREEN (01) 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0
GREEN ... ... ... ...
GREEN (62) 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0
GREEN (63) 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
BLUE (00) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
BLUE (01) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
BLUE ... ... ... ...
BLUE (62) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0
BLUE (63) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
Ver. 0.2 25, Mar., 2009 11/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
3-7. Power Sequence
90% 90%
Power Supply Input
VCC
0V 10% 10%
T5 T6 T7
T1 T2 Valid Data
Interface Signal, Vi
LVDS
0V
T3 T4
LED input Voltage
VLED T8 T11
0V
Dimming control signal Valid Data
Of LED BL 0V (Low)
PWM
T9 T10
LED on/off control Signal
0V (Off)
LED_EN
Table 6. POWER SEQUENCE TABLE
Value
Parameter Units
Min. Typ. Max.
T1 0.5 - 10 ms
T2 0 - 50 ms
T3 200 - - ms
T4 200 - - ms
T5 0 - 50 ms
T6 3 - 10 ms
T7 400 - - ms
T8 10 - 100 ms
T9 0 - 100 ms
T10 0 - 100 ms
T11 10 - 100 ms
Note)
1. Valid Data is Data to meet "3-3. LVDS Signal Timing Specifications"
2. Please avoid floating state of interface signal at invalid period.
3. When the interface signal is invalid, be sure to pull down the power supply for LCD VCC to 0V.
4. LED power must be turn on after power supply for LCD and interface signal are valid.
Ver. 0.2 25, Mar., 2009 12/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
4. Optical Specification
Optical characteristics are determined after the unit has been `ON' and stable for approximately 20 minutes in
a dark environment at 25qC. The values specified are at an approximate distance 50cm from the LCD surface
at a viewing angle of ) and 4 equal to 0q.
FIG. 1 presents additional information concerning the measurement equipment and method.
FIG. 1 Optical Characteristic Measurement Equipment and Method
LCD Module Pritchard 880 or
Optical Stage(x,y)
equivalent
500mm 50mm
Table 8. OPTICAL CHARACTERISTICS
Ta=25qC, VCC=3.3V, fV=60Hz, fCLK= 72.3 MHz, ILED = TBD mA
Values
Parameter Symbol Units Notes
Min Typ Max
Contrast Ratio CR TBD - - 1
Surface Luminance, white LWH 200 220 - cd/m2 2
Luminance Variation(13points) G WHITE 1.4 1.6 3
Response Time TrR+ TrD 16 25 ms 4
Color Coordinates
RED RX TBD
RY TBD
GREEN GX TBD
GY TBD
BLUE BX TBD
BY TBD
WHITE WX 0.283 0.313 0.343 +/- 0.030
WY 0.299 0.329 0.359 +/- 0.030
Viewing Angle 5
x axis, right()=0q) 4r 40 - - degree
x axis, left ()=180q) 4l 40 - - degree
y axis, up ()=90q) 4u 15 - - degree
y axis, down ()=270q) 4d 30 - - degree
Gray Scale 6
Ver. 0.2 25, Mar., 2009 13/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
Notes)
1. Contrast Ratio(CR) is defined mathematically as
Surface Luminance with all white pixels
Contrast Ratio =
Surface Luminance with all black pixels
2. Surface luminance is the 5point (1~5)average across the LCD surface 50cm from the surface
with all pixels displaying white. For more information see FIG 2.
When ILED= TBD mA, LWH=220cd/m2(Typ.)
3. The variation in surface luminance , The panel total variation (G WHITE) is determined by measuring LN
at each test position 1 through 13 and then defined as followed numerical formula.
For more information see FIG 2.
Maximum(L1,L2, ... L13)
G WHITE =
Minimum(L1,L2, ... L13)
4. Response time is the time required for the display to transition from white to black (rise time, TrR) and
from black to white(Decay Time, TrD). For additional information see FIG 3.
5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined
for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the
LCD surface. For more information see FIG 4.
6. Gray scale specification * fV=60Hz
Gray Level Luminance [%] (Typ)
L0 TBD
L7 TBD
L15 TBD
L23 TBD
L31 TBD
L39 TBD
L47 TBD
L55 TBD
L63 100
Ver. 0.2 25, Mar., 2009 14/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
FIG. 2 Luminance
H
10mm A
6 7 8 10mm
2 3
B H,V : ACTIVE AREA
V A : H/4 mm
9 1 10
B : V/4 mm
POINTS: 13 POINTS
4 5 13
11 12
FIG. 3 Response Time Active Area
The response time is defined as the following figure and shall be measured by switching the input signal
for "black" and "white".
TrR TrD
%
100
90
Optical
Response
10
0 white white
black
FIG. 4 Viewing angle Normal
Eye Y
I = 90 q , Up
I = 180 q ,
Left T
I
I = 0q ,
Right
I = 270 q ,
Down
Ver. 0.2 25, Mar., 2009 15/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
5. Mechanical Characteristics
The contents provide general mechanical characteristics for the model LP133WH1.
In addition the figures in the next page are detailed mechanical drawing of the LCD.
Horizontal 307.6 r 0.50mm
Outline Dimension Vertical 183.1 r 0.50mm
Depth 5.2mm(Max.)
Horizontal 299.5 mm
Bezel Area
Vertical 168.4 mm
Horizontal 293.42mm
Active Display Area
Vertical 164.97mm
Weight 350g (Max.)
Surface Treatment Hard Coating(3H), Glare treatment of the front polarizer
Ver. 0.2 25, Mar., 2009 16/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
Note) Unit:[mm], General tolerance: r 0.5mm
Ver. 0.2 25, Mar., 2009 17/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
Note) Unit:[mm], General tolerance: r 0.5mm
Ver. 0.2 25, Mar., 2009 18/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
[ DETAIL DESCRIPTION OF SIDE MOUNTING SCREW ]
Screw Length (A) : Max: 2.5mm / Min: 2.0mm
Screw Depth (B) : Min 2.5mm
Screw Torque : Max 2.5kgf.cm (Measurement Gauge: Torque meter)
Notes : 1. Screw plated through the method of non-electrolytic nickel plating is preferred
to reduce possibility that results in vertical and/or horizontal line defect due to
the conductive particles from screw surface.
Ver. 0.2 25, Mar., 2009 19/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
LGD Proposal for system cover design.(Appendix)
Gap check for securing the enough gap between LCM
1
and System cover.
Max Thickness
Sponge
LCM Reflector Side
PCB System Cover
A Boundary Line
1.Rearside of LCM is sensitive against external stress,and previous check
about interference is highly needed.
Define 2.In case there is something from system cover comes into the boundary
above,mechanical interference may cause the FOS defects.
(Eg: Ripple, White spot..)
2 Check if antenna cable is sufficiently apart from T-CON of LCD Module.
Define
NO GOOD GOOD
1.If system antenna is overlapped with T-CON,it might be cause the noise.
Ver. 0.2 25, Mar., 2009 20/ 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WH1
Liquid Crystal Display
Product Specification
LGD Proposal for system cover design.
Gap check for securing the enough gap between LCM
3
and System hinge.
LCM Reflector Side
S-PCB COF
(D-IC)
Hinge
Side Mount Screw Hole (4ea) ("I" TYPE) ("L" TYPE)
GAP:Min2.0mm
1.At least 2.0mm of gap needs to be secured to prevent the shock
Define related defects.
2."L" type of hinge is recommended than "I" type under shock test.
4 Checking the path of the System wire.
#6 #5 #4 #3 #2 #1
Good Ok Bad
1.COF area needs to be handled with care.
2.GOOD ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
