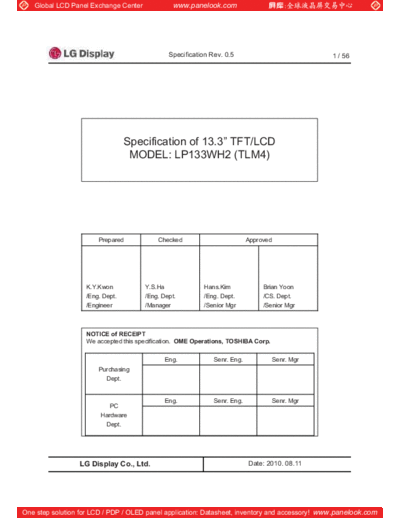

Image preview - the first page of the document
![Panel_LG_Display_LP133WH2-TLM4_0_[DS]](/pics/5eafda14457aa.gif)
>> Download Panel_LG_Display_LP133WH2-TLM4_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 1 / 56
Specification of 13.3" TFT/LCD
MODEL: LP133WH2 (TLM4)
Prepared Checked Approved
K.Y.Kwon Y.S.Ha Hans.Kim Brian Yoon
/Eng. Dept. /Eng. Dept. /Eng. Dept. /CS. Dept.
/Engineer /Manager /Senior Mgr /Senior Mgr
NOTICE of RECEIPT
We accepted this specification. OME Operations, TOSHIBA Corp.
Eng. Senr. Eng. Senr. Mgr
Purchasing
Dept.
Eng. Senr. Eng. Senr. Mgr
PC
Hardware
Dept.
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 2 / 56
- CONTENTS -
Record of Revision --------------------------------------------------------------- 4
1. Scope --------------------------------------------------------------- 4
2. General Specifications --------------------------------------------------------------- 4
2.1. Features
2.2. Dimensional Outline
3. Absolute Maximum Ratings --------------------------------------------------------------- 9
3.1. Absolute Ratings of Environment
3.2. Electrical Absolute Maximum
3.3. Mechanical ratings
3.4. The others
4. Optical Characteristics --------------------------------------------------------------- 16
4.1 Test Conditions
4.2 Optical Specifications
5. Electrical Characteristics --------------------------------------------------------------- 21
5.1. TFT LCD module
5.2. Backlight Unit
5.3. Regulation
6. Block Diagram --------------------------------------------------------------- 25
7. Input Terminal Pin Assignment --------------------------------------------------------------- 26
7.1 TFT LCD module
7.2 Backlight Unit
7.3 LVDS Transmitter
7.4 Timing Diagrams of LVDS for Transmission
7.5 Input Signal, Basic Display Colors and Gray Scale of Each Colors
8. Interface timing --------------------------------------------------------------- 31
8.1 Timing Parameters
8.2 Timing diagrams of interface signal
8.3 Power On / Off Sequence
9. Cosmetic Specification --------------------------------------------------------------- 33
9.1 Sampling
9.2 Conditions of Inspections
9.3 Defect modes
9.4 Mechanical inspection
9.5 Visual Inspection
9.6 Electrical inspection
10. Packing --------------------------------------------------------------- 37
11. Labels and Other parts Exchange --------------------------------------------------------------- 39
12. General Precaution --------------------------------------------------------------- 47
Appendix --------------------------------------------------------------- 49
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 3 / 56
Record of Revision
Date Rev. No. Sheet(New) Item Old New Reason
'10.4.9 0.0 All - - - First Edition
Update Power
'10.5.17 0.1
Sequence (t4, t6)
Update Color
Coordinate
Update Gray
scale Spec.
Update
Mechanical
Drawing
Update EDID
Data
New Format for
'10.6.11 0.2 All Custormer
Update Timing
'10.6.28 0.3 30
table
Update the LED
'10.8.2 0.4 4 - Add the LED Quantity
Quantity
Update Connector "Backlight Delete the "Backlight
10 connector ~"
tension test connector ~"
Update Timing Add Refresh rate
30 -
table 40Hz
Update the
38 G33C00067110 G33C00068110
Toshiba G-Code
Update the
'10.8.11 0.5 25
Connector maker
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 4 / 56
1. Scope
This specification is applicable to LCD manufacturer's 13.3" diagonal size TFT-LCD module
"LP133WH2(TLM4)" designed for Personal Computer.
2. General Specification
2.1. Features
Item Specifications
Display area ( Active area) 293.42(H, typ.) 164.97 (V, typ.) (13.3 inches diagonal )
Driving Method TFT active matrix
Number of Pixels 1366 (W) u 768 (H) u R,G,B (HD) (pixels) 1)
Pixel pitch 0.2148mm 0.2148 mm 1)
Pixel Arrangement RGB vertical stripes 1)
Display color 262,144 (colors)
Display Mode Transmissive mode, Normally white
Viewing Direction 6 o'clock (in direction of maximum contrast)
Surface Treatment Anti-glare treatment of the front polarizer
Interface LVDS
Backlight Single light emitting diode for side-lighting (LED Quantity : 36ea)
Dimensional Outline 306.3 0.5 (H) u 177.7 0.5 (W) / 3.6(Max) (D) (mm)
Bezel Opening 297.42(H) u 168.57 0.5 (W) (mm)
Weight 290g ( Typ.) / 300g ( Max.)
Note 1) 1 2 1365 1366
1 R G B R G B R G B R G B
R G B : Pixel
2
R G B R G B R G B R G B
: Sub-pixel
R G B
(Dots)
767 R G B R G B R G B R G B
768 R G B R G B R G B R G B 0.2148mm
0.2148mm
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 5 / 56
2.2. Dimensional Outline
Note) Unit:[mm], General tolerance: r 0.5mm
( Front figure )
UP Down
* The size that related with metal bezel includes tape thickness (0.05mm)
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 6 / 56
( Rear figure )
Note) Unit:[mm], General tolerance: r 0.5mm
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 7 / 56
( Detail description of height of LCM back side & TAB Zone)
Note) Unit:[mm], General tolerance: r 0.5mm
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 8 / 56
3. Absolute Maximum Ratings
3.1. Absolute Ratings of Environment
Item Symbol Min Max Unit Note
Operating Ambient Temperature TOP 0 +50 qC (1)
Operating Temperature for Panel - 0 +50 qC (2)
Storage Temperature TSTG -20 +60 qC (1)
Operating Ambient Humidity HOP 10 90 %RH (1)
Storage Humidity HSTG 10 90 %RH (1)
Air Pressure - 57 101.3 kPa Operation
Air Pressure - 12 101.3 kPa Non-operation
Altitude - - 3 Km Operation
Altitude - - 12 Km Non-operation
Note 1) Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39qC Max, and no condensation of water.
90% 80%
60 60%
Wet Bulb 50
Humidity[(%)RH]
Temperature [ ] Storage
40 40%
30 Operation
20
20%
10
0
10%
-20 0 10 20 30 40 50 60 70 80
Dry Bulb Temperature [ ]
Note 2) The surface temperature caused by self heat radiation of cell itself is specified on this item.
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 9 / 56
3.2. Electrical Absolute Maximum
(1) TFT LCD Module
Item Symbol Min Max Unit Note
Power Supply Voltage VDD -0.3 +4.0 V at 25 r 5qC
Logic Input Voltage VIN -0.3 VDD+0.3 V LVDS interface
(2) Back Light Unit
Item Symbol Min Max Unit Note
LED Driver Supply Voltage VL -0.3 23 V damage to the device
VPWM
LED PWM / LED_EN Voltage -0.3 6.0 V
VLED_EN
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 10 / 56
3.3. Mechanical Ratings
Test Item Test Conditions Note
Frequency Range 5 - 500 Hz, 14.7m/s2 1.5G) constant,
Non Operation
0.5Hrs each axis (X, Y, Z direction).
Mechanical Vibration
Frequency Range 5 - 500 Hz, 4.9m/s2 ( 0.5G) constant,
Operation
0.5Hrs each axis (X, Y, Z direction).
Mechanical Shock * 240G, Pulse width 2 ms, Sine Wave, rX, rY, rZ direction. Non Operation
70G, Pulse width 11ms, Sine Wave rX, rY, rZ direction.
LCD fix condition * Note) Normal function is only checking points.
-> See Note (2) 98 m/s2 (10G), Pulse width 11 ms, Sine Wave, rX, rY, rZ direction. Operation
No Destruction with the force 196 N (20 kgf, 16 mm in diameter) to Non Operation
the display surface at the vertical direction. Fig 1-1
Pressure Resistanace
No Destruction with the force 294.2 N (30 kgf, 30 mm in diameter) Fig 1-2
to the back of the display surface at the vertical direction. Fig 1-3
-> See Note (1)
Only the breakage of below items will not happen after test.
( Glass.LED & Circuit parts)
Input connector : With 50 times of connector trial there must be no
Connector tension test Non Operation
damage to the shape and functionaly.
Assured torque value M2 : Max 2.5 kgf
Non Operation
at side-mout part
Rescrewed test 15 times under Max. torque Non Operation
Tapping area : All bezel(Metal cover) side,
LCD: Full-screen gray (L32).
Tapping test Operation
"Ripple (Pooling )" can not be seen in Active Area
Tapping Force: Max 3kgf.cm
Definitions of failure for judgment shall be as follows:
(1) Function of the module should be maintained.
(2) Current consumption should be smaller than the specified value.
(3) Appearance and display quality should not have distinguished degradation.
(4) Luminance should be larger than the minimum value specified in optical specification.
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 11 / 56
Note 1)
(1) The compression condition of front side
(a) Compression point : 12 points ( refer to Fig 1-1)
(b) Compression condition: 20kgf, 3 sec, Tool diameter: 16 mm in diameter (refer to Fig 1-3)
COMPRESSION POINT
Flat plate LCD
[ Fig 1-1 ]
(2) The compression condition of rear side
(a) Compression point : 21 points ( refer to Fig 1-2 )
(b) Compression condition : 30kgf, 3 sec, Tool radius: 30 mm in diameter ( refer to Fig 1-3)
COMPRESSION POINT
ABS natural 2.0t
LCD
Flat plate
[ Fig 1-2 ]
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 12 / 56
10mm in diameter
10
16
B
A 1.5
Rubber sheet
[ Fig 1-3 ]
(3) Dimension of the compression jig
(a) compression jig for front side A = 16 mm in diameter
B = 16 mm in diameter
(b) compression jig for rear side A = 30 mm in diameter
B = 28 mm in diameter
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 13 / 56
Note 2) LCD fixing condition for z direction.
Z
Y X
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 14 / 56
3.4. The Others
(1) Static electricity pressure resistance
Item Testing conditions Operation Non Operation
Contact discharge 150pF, 330 ohm 8KV r 10 kV
Air discharge 150pF, 330 ohm 15KV 20 KV
(2) Sound noise
There should be no uncomfortable noise.
Being used under whatever surrounds, when power on/off, the panel should not generate
uncomfortable noise. And regarding specified values are negotiated if it is needed.
(3) Open / Short
No smoke, no fiery at any open/ short test
(4) MTBF : 50,000 Hr (except for backlight LED)
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 15 / 56
4. Optical Characteristics
4.1. Test Conditions
Ambient Temperature : Ta 25r5qC
Ambient Humidity : Ha 65r20%RH
Supply Voltage : VDD 3.3V
Input Signal : According to typical value in "Electrical Characteristics"
LED Driver Supply Voltage : VLED = 12V
LED PWM Duty : DPWM = 100%
The measuring method is shown in 4.2. The following items are measured under stable conditions. The opti
cal characteristics should be measured in a dark room ( Screen illuminance < 2 lx ) or equivalent state with t
he methods shown in Note (6).
4.2. Optical Specifications
Item Symbol Conditions Min. Typ. Max. Unit Note
Contrast Ratio
CR 300 350 - - (2), (6)
(Center 1 Point)
tON+tOFF 16 25 ms
Response Time tON 5.5 9 ms (3)
tOFF 10.5 16 ms
*VLED=12V
Average luminance DPWM=100%
YL 170 200 - cd/m2
(5 Point Average) Gray Scale Level
T=0q, I=0q = L63 (White)
Cross Modulation DSHA - - 2.0 % (5)
Viewing
Rx 0.547 0.577 0.607
Red normal angle
Ry 0.317 0.347 0.377
Gx 0.308 0.338 0.368
Green
Luminance Gy 0.531 0.561 0.591 (1), (6)
Uniformity -
0.129 0.159 0.189 PR650
Chromaticity Bx
Blue Only for
By 0.097 0.127 0.157
Color
Wx 0.283 0.313 0.343 Coordinate
White
Wy 0.299 0.329 0.359
(Color Coordinate of
TL I = 180 40 45 - the R,G,B is based
Hor.
TR I = 0q 40 45 - on LGD's equipment,
CR>=10 and Color Coordinate
Tup I = 90q 10 15 -
Ver. of the W is based on
Viewing TLow I = -90q 30 35 - LGD's equipment)
deg.
Angle TL I = 180 50 55 -
Hor.
TR I = 0q 50 55 -
CR>=5
Tup I = 90q 10 15 -
Ver.
TLow I = -90q 30 35 -
13 Points White Variation W - - 1.6 (7)
T=0q, I=0q
13 Points CR Variation CR Viewing - - 2.0 (7)
White Variation dL normal angle - - 2.0 (8)
LG Display Co., Ltd. Date: 2010. 08.11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Specification Rev. 0.5 16 / 56
Attach the LED current ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
