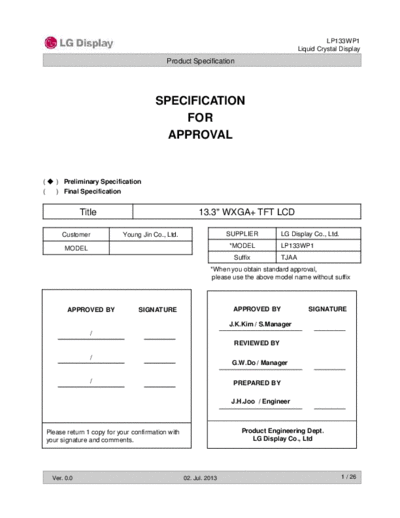

Image preview - the first page of the document
![Panel_LG_Display_LP133WP1-TJAA_0_[DS]](/pics/5eafda5870efd.gif)
>> Download Panel_LG_Display_LP133WP1-TJAA_0_[DS] documenatation <<
Text preview - extract from the document
LP133WP1
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 13.3" WXGA+ TFT LCD
Customer Young Jin Co., Ltd. SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP133WP1
Suffix TJAA
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
J.K.Kim / S.Manager
/
REVIEWED BY
/
G.W.Do / Manager
/ PREPARED BY
J.H.Joo / Engineer
Please return 1 copy for your confirmation with Product Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver. 0.0 02. Jul. 2013 1 / 26
LP133WP1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTREISTICS
3-2 INTERFACE CONNECTIONS 7
3-3 eDP SIGNAL TIMING SPECIFICATIONS 8
3-4 SIGNAL TIMING SPECIFICATIONS 9
3-5 SIGNAL TIMING WAVEFORMS
3-6 COLOR INPUT DATA REFERNECE 10
3-7 POWER SEQUENCE 11
4 OPTICAL SFECIFICATIONS 12
5 MECHANICAL CHARACTERISTICS 16
6 RELIABLITY 19
7 INTERNATIONAL STANDARDS
7-1 SAFETY 20
7-2 EMC
8 PACKING 21
8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
9 PRECAUTIONS 22
9-1 MOUNTING PRECAUTIONS
9-2 OPERATING PRECAUTIONS
9-3 ELECTROSTATIC DISCHARGE CONTROL 23
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
9-5 STORAGE
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM
A APPENDIX. Enhanced Extended Display Identification Data 24
Ver. 0.0 02. Jul. 2013 2 / 26
LP133WP1
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver.
0.0 02.Jul. 2013 - First Draft 1.0
Ver. 0.0 02. Jul. 2013 3 / 26
LP133WP1
Liquid Crystal Display
Product Specification
1. General Description
The LP133WP1 is a Color Active Matrix Liquid Crystal Display. The matrix employs a-Si Thin Film Transistor as the
active element. It is a transmissive type display operating in the normally white mode. This TFT-LCD has 13.3 inches
diagonally measured active display area with HD resolution(1440 horizontal by 900 vertical pixel array). Each pixel is
divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of
the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than
262,144 colors.
The LP133WP1 has been designed to apply the interface method that enables low power, high speed, low EMI.
The LP133WP1 is intended to support applications where thin thickness, low power are critical factors and graphic
displays are important. In combination with the vertical arrangement of the sub-pixels, the LP133WP1 characteristics
provide an excellent flat display for office automation products such as Notebook PC.
1
eDP &
Timing
CN
Control
Gate Driver
1 Block
TFT-LCD Panel
User connector
(1440 x 900)
POWER
(LOG_B type)
BLOCK 900
1 1440
30 Source Driver Circuit
Pin
EDID
BLOCK
Control & Data Power EDID signal & Power
General Features
Active Screen Size 13.3 inches diagonal
Outline Dimension 299.41 (H) ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
