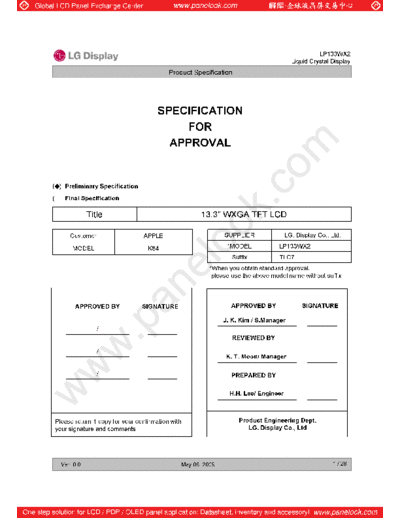

Image preview - the first page of the document
![Panel_LG_Display_LP133WX2-TLC7_0_[DS]](/pics/5eafda9dec3a4.gif)
>> Download Panel_LG_Display_LP133WX2-TLC7_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LP133WX2
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
() Preliminary Specification
( Final Specification
Title 13.3" WXGA TFT LCD
Customer APPLE SUPPLIER LG. Display Co., Ltd.
MODEL K84 *MODEL LP133WX2
Suffix TLC7
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
J. K. Kim / S.Manager
/
REVIEWED BY
/
K. T. Moon/ Manager
/ PREPARED BY
H.H. Lee/ Engineer
Please return 1 copy for your confirmation with Product Engineering Dept.
your signature and comments. LG. Display Co., Ltd
Ver. 0.0 May.08, 2009 1 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WX2
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 7
3-3 LVDS SIGNAL TIMING SPECIFICATIONS 8
3-4 SIGNAL TIMING WAVEFORMS 11
3-5 COLOR INPUT DATA REFERNECE 12
3-6 POWER SEQUENCE 13
4 OPTICAL SFECIFICATIONS 14
5 MECHANICAL CHARACTERISTICS 18
6 RELIABLITY 21
7 INTERNATIONAL STANDARDS
7-1 SAFETY 22
7-2 EMC 22
8 PACKING
8-1 DESIGNATION OF LOT MARK 23
8-2 PACKING FORM 23
9 PRECAUTIONS 24
A APPENDIX. Enhanced Extended Display Identification Data 26
Ver. 0.0 May.08, 2009 2 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WX2
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 08. May. 2009 - First Draft 0.0
Ver. 0.0 May.08, 2009 3 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP133WX2
Liquid Crystal Display
Product Specification
1. General Description
The LP133WX2 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 13.3 inches diagonally measured active display area with WXGA
resolution(1280 horizontal by 800 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-
pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors.
The LP133WX2 has been designed to apply the interface method that enables low power, high speed, low
EMI.
The LP133WX2 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP133WX2
characteristics provide an excellent flat display for office automation products such as Notebook PC.
1
LVDS &
Timing
CN
Control Gate Driver
1
Block TFT-LCD Panel
User connector
(1280 x 800)
POWER
(LOG_B type)
BLOCK 800
1 1280
30 Source Driver Circuit
Pin
EDID
BLOCK
LED Backlight Ass'y
9LEDs X 6 strings
Control & Data Power EDID signal & Power
General Features
Active Screen Size 13.3 inches diagonal
