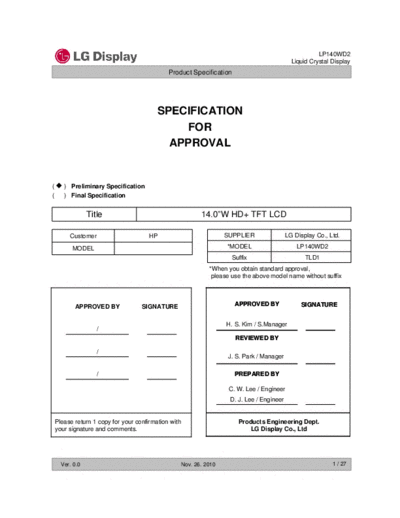

Image preview - the first page of the document
![Panel_LG_Display_LP140WD2-TLD1_0_[DS]](/pics/5eafdb5c7d637.gif)
>> Download Panel_LG_Display_LP140WD2-TLD1_0_[DS] documenatation <<
Text preview - extract from the document
LP140WD2
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 14.0"W HD+ TFT LCD
Customer HP SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP140WD2
Suffix TLD1
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
H. S. Kim / S.Manager
/
REVIEWED BY
/
J. S. Park / Manager
/ PREPARED BY
C. W. Lee / Engineer
D. J. Lee / Engineer
Please return 1 copy for your confirmation with Products Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver. 0.0 Nov. 26. 2010 1 / 27
LP140WD2
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6-7
3-2 INTERFACE CONNECTIONS 8
3-3 LVDS SIGNAL TIMING SPECIFICATIONS 9-10
3-4 SIGNAL TIMING SPECIFICATIONS 11
3-5 SIGNAL TIMING WAVEFORMS 11
3-6 COLOR INPUT DATA REFERNECE 12
3-7 POWER SEQUENCE 13
4 OPTICAL SFECIFICATIONS 14-16
5 MECHANICAL CHARACTERISTICS 17-19
6 RELIABLITY 20
7 INTERNATIONAL STANDARDS 21
7-1 SAFETY
7-2 EMC
8 PACKING 22
8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
8-3 LABEL DESCRIPTION
9 PRECAUTIONS 23
A APPENDIX A. Enhanced Extended Display Identification Data 25-27
Ver. 0.0 Nov. 26. 2010 2 / 27
LP140WD2
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 Nov. 26, 2010 All First Draft (Preliminary Specification) 0.0
Ver. 0.0 Nov. 26. 2010 3 / 27
LP140WD2
Liquid Crystal Display
Product Specification
1. General Description
The LP40WD2 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 14.0 inches diagonally measured active display area with HD+
resolution (1600 horizontal by 900 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-
pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144
colors. The LP140WD2 has been designed to apply the interface method that enables low power, high
speed, low EMI. The LP140WD2 is intended to support applications where thin thickness, low power are
critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-
pixels, the LP140WD2 characteristics provide an excellent flat display for office automation products such
as Notebook PC.
EEPROM Block
EEPROM Block
for EDID
for EDID
EEPROM Block
EEPROM Block 1 1600
for Tcon Operating
for Tcon Operating 1
User connector
Chip On Gate
TFT-LCD Panel
LVDS Timing Control
Timing Control (HD+, TN)
2port 900
(Tcon) Block
(Tcon) Block
Min
i- LVD 900
DVCC TCLKs S
40
AVCC, AVDD
Pin
VCC Power Source Driver
Power VGH, VGL, GMA
(Bottom Bent)
Block
Block GOE, GSP, GSC
VLED LED Driver VOUT_LED
LED Driver LED Backlight Ass'y
LED_EN FB1~4
PWM Block
Block
Control & Data Power EDID signal & Power
General Features
Active Screen Size 14.0 inches diagonal
