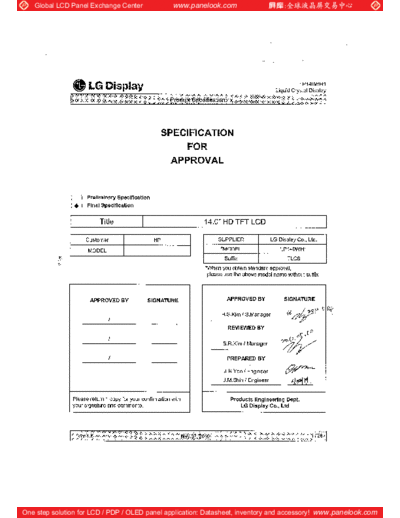

Image preview - the first page of the document
![Panel_LG_Display_LP140WH1-TLC6_0_[DS]](/pics/5eafdc0435da9.gif)
>> Download Panel_LG_Display_LP140WH1-TLC6_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
Ver.1.0 May.07, 2010 0 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 14.0" HD TFT LCD
Customer HP SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP140WH1
Suffix TLC6
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
H.S.Kim / S.Manager
/
REVIEWED BY
/
S.R.Kim / Manager
/ PREPARED BY
J.H.Yoo / Engineer
J.M.Shin / Engineer
Please return 1 copy for your confirmation with Products Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver.1.0 May.07, 2010 1 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 LVDS SIGNAL TIMING SPECIFICATION 9-10
3-3 SIGNAL TIMING SPECIFICATIONS 10
3-4 SIGNAL TIMING WAVEFORMS 11
3-5 COLOR INPUT DATA REFERNECE 12
3-6 POWER SEQUENCE 13
4 OPTICAL SFECIFICATIONS 14-16
5 MECHANICAL CHARACTERISTICS 17-20
6 RELIABLITY 21
7 INTERNATIONAL STANDARDS
7-1 SAFETY 22
7-2 EMC 22
8 PACKING
8-1 DESIGNATION OF LOT MARK 23
8-2 PACKING FORM 24
9 PRECAUTIONS 24-25
A APPENDIX. Enhanced Extended Display Identification Data 26-28
Ver.1.0 May.07, 2010 2 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 Mar.25, 2010 - First Draft (Preliminary Specification) 0.0
19 Update Drawing & Label
1.0 May,07.2010 - Final CAS Released 1.0
Ver.1.0 May.07, 2010 3 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
1. General Description
The LP140WH1 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 14.0 inches diagonally measured active display area with HD
resolution(768 vertical by 1366 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-
pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144
colors.
The LP140WH1 has been designed to apply the interface method that enables low power, high speed, low
EMI.
The LP140WH1 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LP140WH1 characteristics provide an excellent flat display for office automation products such as Notebook
PC. EEPROM Block
EEPROM Block
for EDID
for EDID
1 1366
User connector
TFT-LCD Panel
LVDS Timing Control
Timing Control (HD, GIP, TN)
1port
(Tcon) Block
(Tcon) Block
Min
i- LVD 768
DVCC TCLKs S
40
AVCC, AVDD
Pin
VCC Power Source Driver
Power VGH, VGL, GMA
(Bottom Bent)
Block
Block GIP CLKs, DSC
VOUT_LED
VLED LED Driver LED Backlight Ass'y
LED Driver FB1~6
LED_EN
PWM Block
Block
General Features
Active Screen Size 14.0 inches diagonal
Outline Dimension 323.5(H, typ) 192.0(V, typ) 5.2(D,max) [mm]
Pixel Pitch 0.2265mm 0.2265 mm
Pixel Format 1366 horiz. By 768 vert. Pixels RGB strip arrangement
Color Depth 6-bit, 262,144 colors
Luminance, White 200 cd/m2(Typ.5 point)
Power Consumption Total 4.1 Watt(Typ.) @ LCM circuit 1.3 Watt(Typ.), B/L input 2.8Watt(Typ. with Driver)
Weight 350g (Max.)
Display Operating Mode Transmissive mode, normally white
Surface Treatment Hard Coating(3H), Glare treatment of the front polarizer
RoHS & Halogen Fee
Yes for all
Comply
Ver.1.0 May.07, 2010 4 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.
Table 1. ABSOLUTE MAXIMUM RATINGS
Values
Parameter Symbol Units Notes
Min Max
Power Input Voltage VCC -0.3 4.0 Vdc at 25 r 5qC
Operating Temperature TOP 0 50 qC 1
Storage Temperature HST -20 60 qC 1
Operating Ambient Humidity HOP 10 90 %RH 1
Storage Humidity HST 10 90 %RH 1
Note : 1. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39qC Max, and no condensation of water.
90% 80%
60 60%
Wet Bulb 50
Humidity[(%)RH]
Temperature [ ] Storage
40 40%
30 Operation
20
20%
10
0
10%
-20 0 10 20 30 40 50 60 70 80
Dry Bulb Temperature [ ]
Ver.1.0 May.07, 2010 5 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
3. Electrical Specifications
3-1. Electrical Characteristics
The LP140WH1 requires two power inputs. The first logic is employed to power the LCD electronics and to
drive the TFT array and liquid crystal. The second backlight is the input about LED BL.with LED Driver.
Table 2. ELECTRICAL CHARACTERISTICS
Values
Parameter Symbol Unit Notes
Min Typ Max
LOGIC :
Power Supply Input Voltage VCC 3.0 3.3 3.6 V 1
Mosaic ICC - 400 470 mA 2
Power Supply Input Current
Black ICC_max - 500 595 mA 3
Power Consumption PCC - 1.3 1.5 W 2
Power Supply Inrush Current ICC_P - - 1500 mA 4
LVDS Impedance ZLVDS 90 100 110 5
BACKLIGHT : ( with LED Driver)
LED Power Input Voltage VLED 7.0 12.0 20.0 V 6
LED Power Input Current ILED - 230 255 mA 7
LED Power Consumption PLED - 2.8 3.0 W 7
PWM Duty Ratio 5 - 100 % 9
PWM Jitter - 0 - 0.2 % 10
PWM Impedance ZPWM 20 40 60 k
PWM Frequency FPWM 200 - 1000 Hz 11
PWM High Level Voltage VPWM_H 3.0 - 5.3 V
PWM Low Level Voltage VPWM_L 0 - 0.3 V
LED_EN Impedance ZPWM 20 40 60 k
LED_EN High Voltage VLED_EN 3.0 - 5.3 V
_H
LED_EN Low Voltage VLED_EN 0 - 0.3 V
_L
Life Time 12,000 - - Hrs 12
Ver.1.0 May.07, 2010 6 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
Note)
1. The measuring position is the connector of LCM and the test conditions are under 25 , fv = 60Hz,
Black pattern.
2. The specified Icc current and power consumption are under
the Vcc = 3.3V , 25 , fv = 60Hz condition whereas Mosaic pattern
is displayed and fv is the frame frequency.
3. This Spec. is the max load condition for the cable impedance designing.
4. The below figures are the measuring Vcc condition and the Vcc control block LGD used.
The Vcc condition is same the minimum of T1 at Power on sequence.
3.3V
Rising time
Vcc 90%
0V 10%
0.5ms
5. This impedance value is needed to proper display and measured form LVDS Tx to the mating connector.
6. The measuring position is the connector of LCM and the test conditions are under 25 .
7. The current and power consumption with LED Driver are under the Vled = 12.0V , 25 , Dimming of
Max luminance whereas White pattern is displayed and fv is the frame frequency.
8. The below figures are the measuring Vled condition 12.0V
and the Vled control block LGD used. Rising time 90%
VLED control block is same with Vcc control block. VLED
0V 10%
0.5ms
9. The operation of LED Driver below minimum dimming ratio may cause flickering or reliability issue.
10. If Jitter of PWM is bigger than maximum. It may cause flickering.
11. This Spec. is not effective at 100% dimming ratio as an exception because it has DC level equivalent
to 0Hz. In spite of acceptable range as defined, the PWM Frequency should be fixed and stable for
more consistent brightness control at any specific level desired.
12 The life time is determined as the time at which the typical brightness of LCD is 50% compare to that of
initial value at the typical LED current. These LED backlight has 6 strings on it and the typical current
of LED's string is base on 18mA.
Ver.1.0 May.07, 2010 7 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
3-2. Interface Connections
This LCD employs two interface connections, a 40 pin connector is used for the module electronics interface
and the other connector is used for the integral backlight system.
The electronics interface connector is a model CABLINE-VS RECE ASS'Y manufactured by I-PEX.
Table 3. MODULE CONNECTOR PIN CONFIGURATION (CN1)
Pin Symbol Description Notes
1 NC No Connection
2 VCC Power Supply, 3.3V Typ.
3 VCC Power Supply, 3.3V Typ.
1, Interface chips
4 V EEDID DDC 3.3V power
1.1 LCD : SW, SW0624 (LCD Controller)
5 NC No Connection including LVDS Receiver
6 Clk EEDID DDC Clock 1.2 System : THC63LVDF823A
7 DATA EEDID DDC Data or equivalent
* Pin to Pin compatible with LVDS
8 Odd_RIN 0- Negative LVDS differential data input
9 Odd_RIN 0+ Positive LVDS differential data input 2. Connector
10 GND Ground 2.1 LCD : CABLINE-VS RECE ASS'Y, I-PEX
or its compatibles
11 Odd_RIN 1- Negative LVDS differential data input
2.2 Mating : CABLINE-VS PLUG CABLE
12 Odd_RIN 1+ Positive LVDS differential data input ASS'Y or equivalent.
13 GND Ground 2.3 Connector pin arrangement
14 Odd_RIN 2- Negative LVDS differential data input
15 Odd_RIN 2+ Positive LVDS differential data input
16 GND Ground
17 Odd_CLKIN- Negative LVDS differential clock input
18 Odd_CLKIN+ Positive LVDS differential clock input
[LCD Module Rear View]
19 GND Ground
20 NC No Connection
21 NC No Connection
19 GND Ground
23 NC No Connection
24 NC No Connection
19 GND Ground
26 NC No Connection
27 NC No Connection
19 GND Ground
29 NC No Connection
30 NC No Connection
31 VLED_GND LED Ground
32 VLED_GND LED Ground
33 VLED_GND LED Ground
34 NC No Connection
35 PWM PWM for luminance control
36 LED_EN Backlight On/Off Control
37 NC No Connection
38 VLED LED Power Supply 7V-21V
39 VLED LED Power Supply 7V-21V
40 VLED LED Power Supply 7V-21V
Ver.1.0 May.07, 2010 8 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
3-3. LVDS Signal Timing Specifications
3-3-1. DC Specification
Symb
Description Min Max Unit Notes
ol
LVDS Differential Voltage |VID| 100 600 mV -
LVDS Common mode Voltage VCM 0.6 1.8 V -
LVDS Input Voltage Range VIN 0.3 2.1 V -
3-3-2. AC Specification
Description Symbol Min Max Unit Notes
85MHz > Fclk
tSKEW - 400 + 400 ps
65MHz
LVDS Clock to Data Skew Margin
65MHz > Fclk
tSKEW - 600 + 600 ps
25MHz
LVDS Clock to Clock Skew Margin (Even
tSKEW_EO - 1/7 + 1/7 Tclk -
to Odd)
Maximum deviation
FDEV - 3 % -
of input clock frequency during SSC
Maximum modulation frequency
FMOD - 200 KHz -
of input clock during SSC
Ver.1.0 May.07, 2010 9 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
< Clock skew margin between channel >
Freq.
Fmax
Fcenter
Fmin
Time
< Spread Spectrum >
3-3-3. Data Format
1) LVDS 1 Port
RCLK+
RA+/- R3 R2 R1 R0 G0 R5 R4 R3 R2 R1 R0 G0 R5 R4
RB+/- G4 G3 G2 G1 B1 B0 G5 G4 G3 G2 G1 B1 B0 G5
RC+/- B5 B4 B3 B2 DE VSYNC HSYNC B5 B4 B3 B2 DE VSYNC HSYNC
RD+/- G7 G6 R7 R6 X B7 B6 G7 G6 R7 R6 X B7 B6
Previous (N-1)th Cycle Current (Nth ) Cycle Next (N+1)th Cycle
< LVDS Data Format >
Ver.1.0 May.07, 2010 10 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
3-4. Signal Timing Specifications
This is the signal timing required at the input of the User connector. All of the interface signal timing should be
satisfied with the following specifications and specifications of LVDS Tx/Rx for its proper operation.
Table 4. TIMING TABLE
ITEM Symbol Min Typ Max Unit Note
DCLK Frequency fCLK - 69.3 - MHz
Period tHP 1430 1470 1526
Hsync Width tWH 8 24 32 tCLK
Width-Active tWHA 1366 1366 1366
Period tVP 774 785 789
Vsync
Width tWV 1 4 5 tHP
Width-Active tWVA 768 768 768
Horizontal back porch tHBP 24 48 72
tCLK
Data Horizontal front porch tHFP 32 32 56
Enable Vertical back porch tVBP 3 10 12
tHP
Vertical front porch tVFP 2 3 4
Condition : VCC =3.3V
3-5. Signal Timing Waveforms
High: 0.7VCC
Data Enable, Hsync, Vsync
Low: 0.3VCC
tCLK
DCLK 0.5 Vcc
tHP
Hsync t
WH
tHBP tWHA tHFP
Data Enable
tVP
tWV
Vsync tVFP
tVBP tWVA
Data Enable
Ver.1.0 May.07, 2010 11 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
3-6. Color Input Data Reference
The brightness of each primary color (red,green and blue) is based on the 6-bit gray scale data input for the
color ; the higher the binary input, the brighter the color. The table below provides a reference for color
versus data input.
Table 5. COLOR DATA REFERENCE
Input Color Data
RED GREEN BLUE
Color
MSB LSB MSB LSB MSB LSB
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
Basic Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
Color Cyan 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1
Magenta 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED (00) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED (01) 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0
RED ... ... ... ...
RED (62) 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0
RED (63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
GREEN (00) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GREEN (01) 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0
GREEN ... ... ... ...
GREEN (62) 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0
GREEN (63) 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
BLUE (00) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
BLUE (01) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
BLUE ... ... ... ...
BLUE (62) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0
BLUE (63) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
Ver.1.0 May.07, 2010 12 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
3-7. Power Sequence
90% 90%
Power Supply Input
VCC
0V 10% 10%
T3 T7 T4
T1 T2 Valid Data
Interface Signal, Vi
LVDS
0V
T5 3.0V 3.0V T6
LED BL
0V (Off)
On/Off Control Signal
LED_EN
T9 T10
LED BL Valid Data
Dimming Control Signal 0V (Low)
PWM
T8 T11
90% 90%
LED Driver Input Voltage
VLED 0V 10% T12 T13 10%
Table 6. POWER SEQUENCE TABLE
Logic Value LED Value
Units Units
Parameter Min. Typ. Max. Parameter Min. Typ. Max.
T1 0.5 - 10 ms T8 10 - - ms
T2 0 - 50 ms T9 0 - - ms
T3 0 - 50 ms T10 0 - - ms
T4 400 - - ms T11 10 - - ms
T5 200 - - ms T12 0.5 - - ms
T6 200 - - ms T13 0 - 5000 ms
T7 3 - 10 ms
Note)
1. Do not insert the mating cable when system turn on.
2. Valid Data have to meet "3-3. LVDS Signal Timing Specifications"
3. LVDS, LED_EN and PWM need to be on pull-down condition on invalid status.
4. LGD recommend the rising sequence of VLED after the Vcc and valid status of LVDS turn on.
Ver.1.0 May.07, 2010 13 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
4. Optical Specification
Optical characteristics are determined after the unit has been `ON' and stable for approximately 30 minutes in
a dark environment at 25qC. The values specified are at an approximate distance 50cm from the LCD surface
at a viewing angle of ) and 4 equal to 0q.
FIG. 1 presents additional information concerning the measurement equipment and method.
FIG. 1 Optical Characteristic Measurement Equipment and Method
LCD Module Pritchard 880 or
Optical Stage(x,y)
equivalent
50cm
Table 7. OPTICAL CHARACTERISTICS
Ta=25qC, VCC=3.3V, fV=60Hz, fCLK= 69.3MHz, ILED= 18 mA
Values
Parameter Symbol Units Notes
Min Typ Max
Contrast Ratio CR 500 - - 1
Surface Luminance, white LWH 170 200 - cd/m2 2
Luminance Variation G WHITE - 1.4 1.6 3
Response Time TrR+ TrD - 16 24 ms 4
Color Coordinates
RED RX 0.557 0.587 0.617
RY 0.319 0.349 0.379
GREEN GX 0.306 0.336 0.366
GY 0.529 0.559 0.589
BLUE BX 0.128 0.158 0.188
BY 0.091 0.121 0.151
WHITE WX 0.283 0.313 0.343
WY 0.299 0.329 0.359
Viewing Angle 5
x axis, right()=0q) 4r 40 - - degree
x axis, left ()=180q) 4l 40 - - degree
y axis, up ()=90q) 4u 10 - - degree
y axis, down ()=270q) 4d 30 - - degree
Color Gamut - 45 - %
Gamma - 2.2 -
Gray Scale 6
Ver.1.0 May.07, 2010 14 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
Note)
1. Contrast Ratio(CR) is defined mathematically as
Surface Luminance with all white pixels
Contrast Ratio =
Surface Luminance with all black pixels
2. Surface luminance is the average of 5 point across the LCD surface 50cm from the surface with
all pixels displaying white. For more information see FIG 1.
LWH = Average(L1,L2, ... L5)
3. The variation in surface luminance , The panel total variation (G WHITE) is determined by measuring LN
at each test position 1 through 13 and then defined as followed numerical formula.
For more information see FIG 2.
Maximum(L1,L2, ... L13)
G WHITE =
Minimum(L1,L2, ... L13)
4. Response time is the time required for the display to transition from white to black (rise time, TrR) and
from black to white(Decay Time, TrD). For additional information see FIG 3.
5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined
for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the
LCD surface. For more information see FIG 4.
6. Gray scale specification * fV = 60Hz
Gray Level Luminance [%] (Typ)
L0 0.14
L7 1.90
L15 7.13
L23 15.21
L31 25.66
L39 39.08
L47 55.70
L55 79.01
L63 100
Ver.1.0 May.07, 2010 15 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
FIG. 2 Luminance
H
A D
L6 L7 L8 H,V : ACTIVE AREA
C
A : H/4 mm
B : V/4 mm
L2 L3 C : 10 mm
D : 10 mm
B
POINTS : 13 POINTS
V
L9 L1 L10
Center Point
L4 L5
L11 L12 L13
FIG. 3 Response Time
The response time is defined as the following figure and shall be measured by switching the input signal
for "black" and "white".
TrR TrD
%
100
90
Optical
Response
10
0 white white
black
Ver.1.0 May.07, 2010 16 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
5. Mechanical Characteristics
The contents provide general mechanical characteristics for the model LP140WH1. In addition the figures
in the next page are detailed mechanical drawing of the LCD.
Horizontal 323.5 r 0.5mm
Outline Dimension Vertical 192.0 r 0.5mm
Thickness 5.2mm (max)
Horizontal 314.4 r 0.5mm
Bezel Area
Vertical 177.4 r 0.5mm
Horizontal 309.40 mm
Active Display Area
Vertical 173.95 mm
Weight 350g (Max.)
Surface Treatment Hard Coating(3H), Glare treatment of the front polarizer
Ver.1.0 May.07, 2010 17 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
Note) Unit:[mm], General tolerance: r 0.5mm
Ver.1.0 May.07, 2010 18 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
Note) Unit:[mm], General tolerance: r 0.5mm
Ver.1.0 May.07, 2010 19 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
[ DETAIL DESCRIPTION OF SIDE MOUNTING SCREW ]
* Mounting Screw Length (A)
= 2.0(Min) / 2.5(Max)
* Mounting Screw Hole Depth (B)
= 2.5(Min)
* Mounting hole location : 3.1(typ.)
* Torque : 2.0 kgf.cm(Max)
(Measurement gauge : torque meter)
Notes : 1. Screw plated through the method of non-electrolytic nickel plating is preferred
to reduce possibility that results in vertical and/or horizontal line defect due to
the conductive particles from screw surface.
Ver.1.0 May.07, 2010 20 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
6. Reliability
Environment test condition
No. Test Item Conditions
1 High temperature storage test Ta= 60qC, 240h
2 Low temperature storage test Ta= -20qC, 240h
3 High temperature operation test Ta= 50qC, 50%RH, 240h
4 Low temperature operation test Ta= 0qC, 240h
5 Vibration test (non-operating) Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min
3 axis, 1hour/axis
6 Shock test (non-operating) Half sine wave, 180G, 2ms
one shock of each six faces(I.e. run 180G 2ms
for all six faces)
7 Altitude operating 0 ~ 10,000 feet (3,048m) 24Hr
storage / shipment 0 ~ 40,000 feet (12,192m) 24Hr
{ Result Evaluation Criteria }
There should be no change which might affect the practical display function when the display quality
test is conducted under normal operating condition.
Ver.1.0 May.07, 2010 21 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
7. International Standards
7-1. Safety
a) UL 60950-1:2003, First Edition, Underwriters Laboratories, Inc.,
Standard for Safety of Information Technology Equipment.
b) CAN/CSA C22.2, No. 60950-1-03 1st Ed. April 1, 2003, Canadian Standards Association,
Standard for Safety of Information Technology Equipment.
c) EN 60950-1:2001, First Edition,
European Committee for Electrotechnical Standardization(CENELEC)
European Standard for Safety of Information Technology Equipment.
7-2. EMC
a) ANSI C63.4 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and
Electrical Equipment in the Range of 9kHZ to 40GHz. "American National Standards Institute(ANSI),
1992
b) C.I.S.P.R "Limits and Methods of Measurement of Radio Interface Characteristics of Information
Technology Equipment." International Special Committee on Radio Interference.
c) EN 55022 "Limits and Methods of Measurement of Radio Interface Characteristics of Information
Technology Equipment." European Committee for Electrotechnical Standardization.(CENELEC), 1998
( Including A1: 2000 )
Ver.1.0 May.07, 2010 22 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
8. Packing
8-1. Designation of Lot Mark
a) Lot Mark
A B C D E F G H I J K L M
A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.
Note
1. YEAR
Year 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Mark 1 2 3 4 5 6 7 8 9 0
2. MONTH
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Mark 1 2 3 4 5 6 7 8 9 A B C
b) Location of Lot Mark
Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.
8-2. Packing Form
a) Package quantity in one box : 30 pcs
b) Box Size : 490 mm 390 mm 256 mm
Ver.1.0 May.07, 2010 23 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP140WH1
Liquid Crystal Display
Product Specification
9. PRECAUTIONS
Please pay attention to the followings when you use this TFT LCD module.
9-1. MOUNTING PRECAUTIONS
(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the
module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder tha ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
