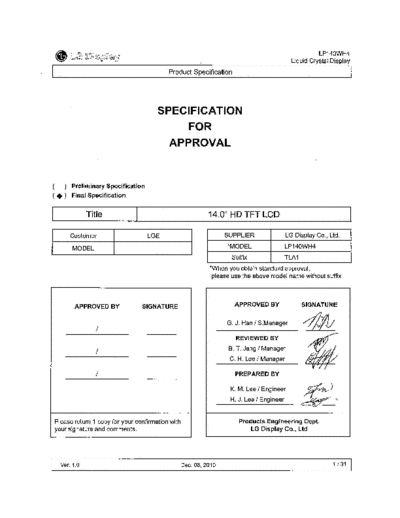

Image preview - the first page of the document
![Panel_LG_Display_LP140WH4-TLA1_0_[DS]](/pics/5eafdd8b3c351.gif)
>> Download Panel_LG_Display_LP140WH4-TLA1_0_[DS] documenatation <<
Text preview - extract from the document
LP140WH4
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 14.0" HD TFT LCD
Customer LGE SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP140WH4
Suffix TLA1
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
G. J. Han / S.Manager
/
REVIEWED BY
B. T. Jang / Manager
/
C. H. Lee / Manager
/ PREPARED BY
K. M. Lee / Engineer
H. J. Lee / Engineer
Please return 1 copy for your confirmation with Products Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver. 1.0 Dec. 08, 2010 1 / 31
LP140WH4
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6-7
3-2 INTERFACE CONNECTIONS 8
3-3 LVDS SIGNAL TIMING SPECIFICATION 9-10
3-3 SIGNAL TIMING SPECIFICATIONS 11
3-4 SIGNAL TIMING WAVEFORMS 11
3-5 COLOR INPUT DATA REFERNECE 12
3-6 POWER SEQUENCE 13
4 OPTICAL SFECIFICATIONS 14-16
5 MECHANICAL CHARACTERISTICS 17-20
A APPENDIX. LPL PROPOSAL FOR SYSTEM COVER DESIGN 21-23
6 RELIABLITY 24
7 INTERNATIONAL STANDARDS
7-1 SAFETY 25
7-2 EMC 25
7-3 ENVIRONMENT 25
8 PACKING
8-1 DESIGNATION OF LOT MARK 26
8-2 PACKING FORM 26
9 PRECAUTIONS 27-28
A APPENDIX. Enhanced Extended Display Identification Data 29-31
Ver. 1.0 Dec. 08, 2010 2 / 31
LP140WH4
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 Oct. 20, 2010 - First Draft (Preliminary Specification) 0.0
1.0 Dec. 08, 2010 14 Update Color Coordination
15 Update Gray scale specification
18 Front View Drawing update
30~32 EDID Update (Check Sum : 73) 1.0
Ver. 1.0 Dec. 08, 2010 3 / 31
LP140WH4
Liquid Crystal Display
Product Specification
1. General Description
The LP140WH4 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 14.0 inches diagonally measured active display area with HD
resolution (1366 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-
pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144
colors. The LP140WH4 has been designed to apply the interface method that enables low power, high
speed, low EMI. The LP140WH4 is intended to support applications where thin thickness, low power are
critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-
pixels, the LP140WH4 characteristics provide an excellent flat display for office automation products such
as Notebook PC.
EEPROM Block
1 1366
for EDID
TFT-LCD Panel
User connector
LVDS Timing Control (FHD, GIP, TN)
1port Block
768
DVCC CLKs
Power AVCC, AVDD
40 VCC VGH, VGL, GMA
Source Driver
Block
Pin
(Bottom Bent)
GIP CLKs, DSC
VLED LED Driver VOUT_LED
LED_EN Block FB1~4
LED Backlight Ass'y
PWM
Control & Data Power EDID signal & Power
General Features
Active Screen Size 14.0 inches diagonal
Outline Dimension 323.5(H, typ) ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
