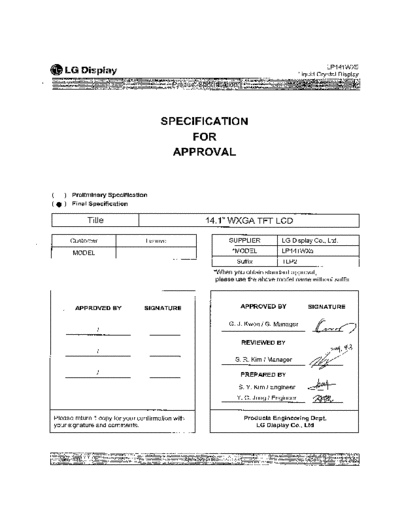

Image preview - the first page of the document
![Panel_LG_Display_LP141WX5-TLP2_0_[DS]](/pics/5eafdee2c009c.gif)
>> Download Panel_LG_Display_LP141WX5-TLP2_0_[DS] documenatation <<
Text preview - extract from the document
LP141WX5
Liquid Crystal Display
Product Specification
Ver. 1.0 Apr. 02, 2009 0 / 33
LP141WX5
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 14.1" WXGA TFT LCD
Customer Lenovo SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP141WX5
Suffix TLP2
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
G. J. Kwon / G. Manager
/
REVIEWED BY
/
S. R. Kim / Manager
/ PREPARED BY
S. Y. Kim / Engineer
Y. C. Jung / Engineer
Please return 1 copy for your confirmation with Products Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver. 1.0 Apr. 02, 2009 1 / 33
LP141WX5
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 7
3-3 LVDS SIGNAL TIMING SPECIFICATIONS 9
3-4 SIGNAL TIMING SPECIFICATIONS 11
3-5 SIGNAL TIMING WAVEFORMS 11
3-6 COLOR INPUT DATA REFERNECE 12
3-7 POWER SEQUENCE 13
4 OPTICAL SFECIFICATIONS 14
5 MECHANICAL CHARACTERISTICS 18
6 RELIABLITY 25
7 INTERNATIONAL STANDARDS
7-1 SAFETY 26
7-2 EMC 26
8 PACKING
8-1 DESIGNATION OF LOT MARK 27
8-2 PACKING FORM 27
9 PRECAUTIONS 28
A APPENDIX. Enhanced Extended Display Identification Data 30
Ver. 1.0 Apr. 02, 2009 2 / 33
LP141WX5
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 Dec. 22. 2008 - First Draft (Preliminary Specification) 0.0
0.1 Mar. 31. 2009 4 Update the General Features. 0.1
(Luminance, Power Consumption, Weight)
6 Update the Electrical Characteristics.
7 Add the Multi CNT.(UJU)
11 Update the Signal Timing Specifications
13 Update the Power Sequence Table.
14 Update the Optical Characteristics.
15 Update the Gray Scale Spec.
19~21 Update the Mechanic drawing.
30~32 Update the EDID data
0.2 Apr.02.2009 14 Update of Luminance uniformity (5points) 0.1
19 Update of drawing
28 Update of Label information
1.0 Apr.02.2009 - Final Specification 1.0
Ver. 1.0 Apr. 02, 2009 3 / 33
LP141WX5
Liquid Crystal Display
Product Specification
1. General Description
The LP141WX5 is a Color Active Matrix Liquid Crystal Display with an integral backlight system. The matrix
employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the
normally white mode. This TFT-LCD has 14.1 inches diagonally measured active display area with WXGA
resolution(800 vertical by 1280 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-
pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144
colors.
The LP141WX5 has been designed to apply the interface method that enables low power, high speed, low
EMI.
The LP141WX5 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LP141WX5 characteristics provide an excellent flat display for office automation products such as Notebook
PC.
CN
CN
LVDS & Source Driver Circuit
Timing
1 Control 1 1280
User connector
User connector
User connector
User connector
Block
1
GIP(Gate In Panel)
POWER TFT-LCD Panel
BLOCK (1280 x 800)
30
Pin
Pin
EDID 800
BLOCK
on the FPC
Connector
Connector
(
(
LED Backlight Ass'y
Tyco
12
Pin)
Pin)
Control & Data Power EDID signal & Power
General Features
Active Screen Size 14.1 inches diagonal
