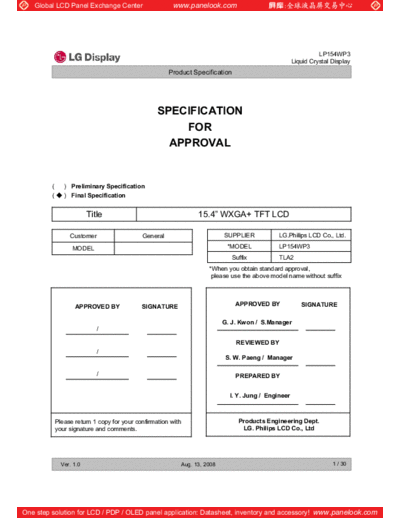

Image preview - the first page of the document
![Panel_LG_Display_LP154WP3-TLA2_0_[DS]](/pics/5eafdf5027f04.gif)
>> Download Panel_LG_Display_LP154WP3-TLA2_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 15.4" WXGA+ TFT LCD
Customer General SUPPLIER LG.Philips LCD Co., Ltd.
MODEL *MODEL LP154WP3
Suffix TLA2
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
G. J. Kwon / S.Manager
/
REVIEWED BY
/
S. W. Paeng / Manager
/ PREPARED BY
I. Y. Jung / Engineer
Please return 1 copy for your confirmation with Products Engineering Dept.
your signature and comments. LG. Philips LCD Co., Ltd
Ver. 1.0 Aug. 13, 2008 1 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 7
3-3 LVDS SIGNAL TIMING SPECIFICATIONS 9
3-4 SIGNAL TIMING SPECIFICATIONS 11
3-5 SIGNAL TIMING WAVEFORMS 11
3-6 COLOR INPUT DATA REFERNECE 12
3-7 POWER SEQUENCE 13
4 OPTICAL SFECIFICATIONS 14
5 MECHANICAL CHARACTERISTICS 19
6 RELIABLITY 23
7 INTERNATIONAL STANDARDS
7-1 SAFETY 24
7-2 EMC 24
8 PACKING
8-1 DESIGNATION OF LOT MARK 25
8-2 PACKING FORM 25
9 PRECAUTIONS 26
A APPENDIX A. Enhanced Extended Display Identification Data 28
Ver. 1.0 Aug. 13, 2008 2 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
1.0 Aug. 13. 2008 - Final Specification 1.0
Ver. 1.0 Aug. 13, 2008 3 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
1. General Description
The LP154WP3 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 15.4 inches diagonally measured active display area with
WXGA+ resolution(1440 horizontal by 900 vertical pixel array). Each pixel is divided into Red, Green and
Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel
color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than
262,144 colors.
The LP154WP3 has been designed to apply the interface method that enables low power, high speed, low
EMI.
The LP154WP3 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LP154WP3 characteristics provide an excellent flat display for office automation products such as Notebook
PC.
'
General Features
Active Screen Size 15.4 inches diagonal
Outline Dimension 342.85(H) 220.84(V) 4.03(D, Max.) mm
Pixel Pitch 0.2301 mm 0.2301 mm
Pixel Format 1440 horiz. by 900 vert. Pixels RGB strip arrangement
Color Depth 6-bit, 262,144 colors
Luminance, White 330 cd/m2(Typ., @ILED=18mA) , 160 points Average
Power Consumption Total 4.66 Watt @ LCM circuit 1.1 Watt (Typ. Mosaic pattern), B/L 3.56 Watt
Weight 450g (Max.)
Display Operating Mode Transmissive mode, normally white
Surface Treatment Hard coating (glare) & Anti-Reflection treatment of the Front polarizer
Ver. 1.0 Aug. 13, 2008 4 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.
Table 1. ABSOLUTE MAXIMUM RATINGS
Values
Parameter Symbol Units Notes
Min Max
Power Input Voltage VCC -0.3 4.0 Vdc at 25 r 5qC
Operating Temperature TOP 0 50 qC 1
Storage Temperature HST -20 60 qC 1
Operating Ambient Humidity HOP 10 90 %RH 1
Storage Humidity HST 10 90 %RH 1
Note : 1. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39qC Max, and no condensation of water.
90% 80%
60 60%
Wet Bulb 50
Humidity[(%)RH]
Temperature [ ] Storage
40 40%
30 Operation
20
20%
10
0
10%
-20 0 10 20 30 40 50 60 70 80
Dry Bulb Temperature [ ]
Ver. 1.0 Aug. 13, 2008 5 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
3. Electrical Specifications
3-1. Electrical Characteristics
The LP154WP3 requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input which powers the LED BL.
Table 2. ELECTRICAL CHARACTERISTICS
Values
Parameter Symbol Unit Notes
Min Typ Max
MODULE :
Power Supply Input Voltage VCC 3.0 3.3 3.6 VDC
Power Supply Input Current ICC Mosaic - 335 380 mA 1
Black 390 450
Power Consumption Pc - 1.1 1.25 Watt 1
Differential Impedance Zm 90 100 110 Ohm 2
Inrush Current IRUSH - - 1.5 A 3
LED Backlight :
Operating Voltage VLED - 33 V
Operating Current per string ILED - 18 - mA 4
Power Consumption PBL - 3.56 Watt 5
Life Time 10,000 - - Hrs 6
Note)
1. The specified current and power consumption are under the Vcc = 3.3V , 25 , fv = 60Hz condition
whereas Mosaic pattern is displayed and fv is the frame frequency.
2. This impedance value is needed to proper display and measured form LVDS Tx to the mating connector.
3. The inrush current is measured under a maximum or minimum Vcc in black pattern.
4. The typical operating current is for the typical surface luminance (LWH) in optical characteristics.
ILED is the current of each LEDs' string, LED backlight has 6 strings on it.
5. The LED power consumption shown above does not include power of external LED driver circuit
for typical current condition.
6. The life time is determined as the time at which brightness of LED is 50% compare to that of initial value
at the typical LED current.
Ver. 1.0 Aug. 13, 2008 6 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
3-2. Interface Connections
This LCD employs two interface connections, a 40 pin connector is used for the module electronics interface
and the other connector is used for the integral backlight system.
The electronics interface connector is a model 20474-040E-12 manufactured by I-PEX.
Table 3. MODULE CONNECTOR PIN CONFIGURATION (CN1)
20474-040E-12(I-PEX), 40pin
Ver. 1.0 Aug. 13, 2008 7 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
Table 4. BACKLIGHT CONNECTOR PIN CONFIGURATION (CN2)
The LED backlight connector is a model TF12-9S-0.5H, manufactured by Hirose.
Pin Symbol Description Notes
1
2
3
4
5
6
7
8
9
Ver. 1.0 Aug. 13, 2008 8 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
3-3. LVDS Signal Timing Specifications
3-3-1. DC Specification
Symb
Description Min Max Unit Notes
ol
LVDS Differential Voltage |VID| 100 600 mV -
LVDS Common mode Voltage VCM 0.6 1.8 V -
LVDS Input Voltage Range VIN 0.3 2.1 V -
3-3-2. AC Specification
Description Symbol Min Max Unit Notes
85MHz > Fclk
tSKEW - 400 + 400 ps
65MHz
LVDS Clock to Data Skew Margin
65MHz > Fclk
tSKEW - 600 + 600 ps
25MHz
LVDS Clock to Clock Skew Margin (Even
tSKEW_EO - 1/7 + 1/7 Tclk -
to Odd)
Maximum deviation
FDEV - 3 % -
of input clock frequency during SSC
Maximum modulation frequency
FMOD - 200 KHz -
of input clock during SSC
Ver. 1.0 Aug. 13, 2008 9 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
< Clock skew margin between channel >
Freq.
Fmax
Fcenter * FDEV
Fcenter
Fmin
1
FMOD
Time
< Spread Spectrum >
3-3-3. Data Format
LVDS 2 Port
< LVDS Data Format >
Ver. 1.0 Aug. 13, 2008 10 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
3-4. Signal Timing Specifications
This is the signal timing required at the input of the User connector. All of the interface signal timing should be
satisfied with the following specifications and specifications of LVDS Tx/Rx for its proper operation.
Table 5. TIMING TABLE
1440
1600
32
900
926
6
HBP 80
48
17
3
3-5. Signal Timing Waveforms Condition : VCC =3.3V
High: 0.7VCC
Low: 0.3VCC
tHP
Hsync t
WH
tHBP tWHA tHFP
Date Enable
tVP
tWV
Vsync tVFP
tVBP tWVA
Date Enable
Ver. 1.0 Aug. 13, 2008 11 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
3-6. Color Input Data Reference
The brightness of each primary color (red,green and blue) is based on the 6-bit gray scale data input for the
color ; the higher the binary input, the brighter the color. The table below provides a reference for color
versus data input.
Table 6. COLOR DATA REFERENCE
Input Color Data
RED GREEN BLUE
Color
MSB LSB MSB LSB MSB LSB
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
Basic Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
Color Cyan 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1
Magenta 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED (00) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED (01) 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0
RED ... ... ... ...
RED (62) 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0
RED (63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
GREEN (00) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GREEN (01) 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0
GREEN ... ... ... ...
GREEN (62) 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0
GREEN (63) 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
BLUE (00) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
BLUE (01) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
BLUE ... ... ... ...
BLUE (62) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0
BLUE (63) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
Ver. 1.0 Aug. 13, 2008 12 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
3-7. Power Sequence
90% 90%
Power Supply For LCD
VCC
0V 10% 10%
T5 T6 T7
T1 T2
Interface Signal, Valid Data
Vi
(LVDS Signal of Transmitter) 0V
T3 T4
LAMP Power OFF LAMP ON OFF
Table 7. POWER SEQUENCE TABLE
Parameter Value Units
Min. Typ. Max.
T1 - - 10 (ms)
T2 0 - 50 (ms)
T3 200 - - (ms)
T4 200 - - (ms)
T5 0 - 50 (ms)
T6 0 - 10 (ms)
T7 400 - - (ms)
Note)
1. Valid Data is Data to meet "3-3. LVDS Signal Timing Specifications"
2. Please avoid floating state of interface signal at invalid period.
3. When the interface signal is invalid, be sure to pull down the power supply for LCD VCC to 0V.
4. Lamp power must be turn on after power supply for LCD and interface signal are valid.
Ver. 1.0 Aug. 13, 2008 13 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
4. Optical Specification
Optical characteristics are determined after the unit has been `ON' and stable for approximately 20 minutes in
a dark environment at 25qC. The values specified are at an approximate distance 50cm from the LCD surface
at a viewing angle of ) and 4 equal to 0q.
FIG. 1 presents additional information concerning the measurement equipment and method.
FIG. 1 Optical Characteristic Measurement Equipment and Method
LCD Module PR650
Optical Stage(x,y)
500mm 50mm
Table 8. OPTICAL CHARACTERISTICS Ta=25qC, VCC=3.3V, fV=60Hz, fCLK=96.82MHz, ILED = 18mA
( )
%
' '
' '
' '
Ver. 1.0 Aug. 13, 2008 14 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
Table 9. RGB Color Chromaticity
Notes)
1. Contrast Ratio(CR) is defined mathematically as
Surface Luminance with all white pixels
Contrast Ratio =
Surface Luminance with all black pixels
2. Response time is the time required for the display to transition from white to black (rise time, TrR) and
from black to white(Decay Time, TrD). For additional information see FIG 3.
3. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined
for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the
LCD surface. For more information see FIG 4.
4. Gray scale specification * fV=60Hz
Gray Level Luminance [%] (Typ)
L0 0.00
L7 0.80
L15 4.25
L23 10.9
L31 21.0
L39 34.8
L47 52.5
L55 74.2
L63 100
Ver. 1.0 Aug. 13, 2008 15 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP154WP3
Liquid Crystal Display
Product Specification
5. Average Luminance
Ave. = SUM(L1:L160) / 160
where L1 to L160 are the luminance values measured at point #1 to #160.
6. Luminance Uniformity
Luminance Uniformity:
U = 100% - (Lmax-Lmin)/Lmax
where, Lmax = max {Luminance values at 160 points},
Lmin = min {Luminance values at 160 points}
7. Worst neighbor Luminance Uniformity
Worst Neighbor Luminance Uniformity (The 4 points that are closest to the test point)
WNU=100%-Max( L1, L2, L3, L4)/L0
Global WNU = min (WNU1, ...WNU160)
8. White chromaticity deviation ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
