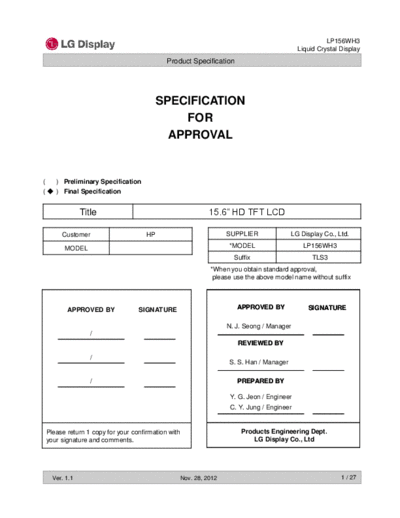

Image preview - the first page of the document
![Panel_LG_Display_LP156WH3-TLS3_0_[DS]](/pics/5eafe30e78bf9.gif)
>> Download Panel_LG_Display_LP156WH3-TLS3_0_[DS] documenatation <<
Text preview - extract from the document
LP156WH3
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 15.6" HD TFT LCD
Customer HP SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP156WH3
Suffix TLS3
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
N. J. Seong / Manager
/
REVIEWED BY
/
S. S. Han / Manager
/ PREPARED BY
Y. G. Jeon / Engineer
C. Y. Jung / Engineer
Please return 1 copy for your confirmation with Products Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver. 1.1 Nov. 28, 2012 1 / 27
LP156WH3
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6-7
3-2 INTERFACE CONNECTIONS 8
3-3 LVDS SIGNAL TIMING SPECIFICATION 9-10
3-4 SIGNAL TIMING SPECIFICATIONS 11
3-5 SIGNAL TIMING WAVEFORMS 11
3-6 COLOR INPUT DATA REFERNECE 12
3-7 POWER SEQUENCE 13
4 OPTICAL SFECIFICATIONS 14-16
5 MECHANICAL CHARACTERISTICS 17-19
6 RELIABLITY 20
7 INTERNATIONAL STANDARDS
7-1 SAFETY 21
7-2 EMC 21
7-3 Environment 21
8 PACKING
8-1 DESIGNATION OF LOT MARK 22
8-2 PACKING FORM 22
9 PRECAUTIONS 23-24
A APPENDIX. Enhanced Extended Display Identification Data 25-27
Ver. 1.1 Nov. 28, 2012 2 / 27
LP156WH3
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 May 15. 2012 - First Draft (Preliminary Specification) -
0.1 Jun. 20. 2012 6 Change Back Light Life time -
4, 6 Change the Power Consumption
14 Update Color cordinate
0.2 Jun. 28. 2012 0.1
15 Update Gray scale
25 ~ 27 Update EDID Data, Box label, CT Code
1.0 Aug. 20. 2012 - Final version. 1.0
1.1 Nov. 27. 2012 18 ~ 19 Update Mechanical Drawing.
Ver. 1.1 Nov. 28, 2012 3 / 27
LP156WH3
Liquid Crystal Display
Product Specification
1. General Description
The LP156WH3 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 15.6 inches diagonally measured active display area with HD
resolution (1366 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-
pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144
colors. The LP156WH3 has been designed to apply the interface method that enables low power, high
speed, low EMI. The LP156WH3 is intended to support applications where thin thickness, low power are
critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-
pixels, the LP156WH3 characteristics provide an excellent flat display for office automation products such
as Notebook PC.
EEPROM Block
for EDID
EEPROM Block 1 1366
for Tcon Operating
User connector
TFT-LCD Panel
LVDS
Timing Control (HD, GIP, TN)
1port (Tcon) Block
768
DVCC TCLKs
40
DVCC, AVDD
Pin
VCC Power Source Driver
VGH, VGL, GMA
(Bottom)
Block GIP CLKs, DSC
VOUT_LED
VLED LED Driver LED Backlight Ass'y
LED_EN FB1~2
PWM Block
Control & Data Power EDID signal & Power
General Features
Active Screen Size 15.6 inches diagonal
Outline Dimension 359.5(H, Typ.) ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
