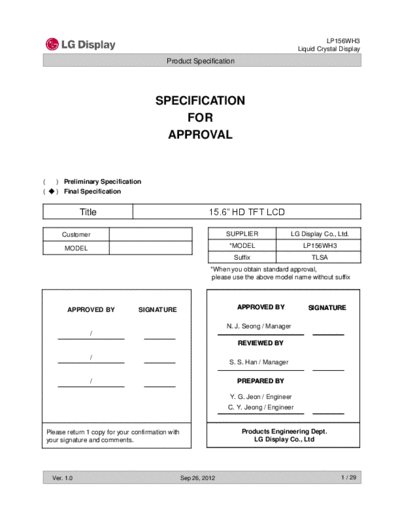

Image preview - the first page of the document
![Panel_LG_Display_LP156WH3-TLSA_0_[DS]](/pics/5ea8ac0092a09.gif)
>> Download Panel_LG_Display_LP156WH3-TLSA_0_[DS] documenatation <<
Text preview - extract from the document
LP156WH3
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 15.6" HD TFT LCD
Customer SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP156WH3
Suffix TLSA
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
N. J. Seong / Manager
/
REVIEWED BY
/
S. S. Han / Manager
/ PREPARED BY
Y. G. Jeon / Engineer
C. Y. Jeong / Engineer
Please return 1 copy for your confirmation with Products Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver. 1.0 Sep 26, 2012 1 / 29
LP156WH3
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6-8
3-2 INTERFACE CONNECTIONS 9
3-3 LVDS SIGNAL TIMING SPECIFICATION 10-11
3-4 SIGNAL TIMING SPECIFICATIONS 12
3-5 SIGNAL TIMING WAVEFORMS 12
3-6 COLOR INPUT DATA REFERNECE 13
3-7 POWER SEQUENCE 14
4 OPTICAL SFECIFICATIONS 15-17
5 MECHANICAL CHARACTERISTICS 18-21
6 RELIABLITY 22
7 INTERNATIONAL STANDARDS
7-1 SAFETY 23
7-2 EMC 23
7-3 Environment 23
8 PACKING
8-1 DESIGNATION OF LOT MARK 24
8-2 PACKING FORM 24
9 PRECAUTIONS 25-26
A APPENDIX. Enhanced Extended Display Identification Data 27-29
Ver. 1.0 Sep 26, 2012 2 / 29
LP156WH3
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 May 20. 2012 - First Draft (Preliminary Specification) -
11 Add appendix about timing
0.1 Jul 03. 2012 21 Add detail Label Information 0.2
27-29 Update EDID
