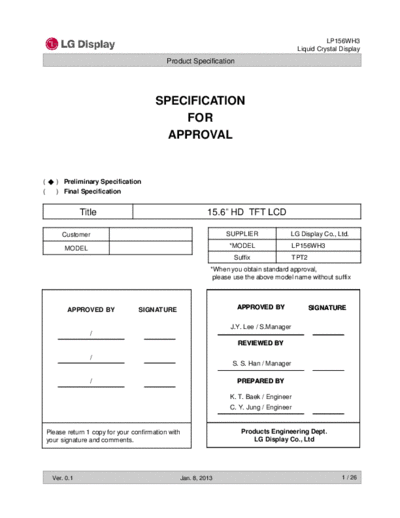

Image preview - the first page of the document
![Panel_LG_Display_LP156WH3-TPT2_0_[DS]](/pics/5eafe3399ed5b.gif)
>> Download Panel_LG_Display_LP156WH3-TPT2_0_[DS] documenatation <<
Text preview - extract from the document
LP156WH3
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 15.6" HD TFT LCD
Customer SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP156WH3
Suffix TPT2
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
J.Y. Lee / S.Manager
/
REVIEWED BY
/
S. S. Han / Manager
/ PREPARED BY
K. T. Baek / Engineer
C. Y. Jung / Engineer
Please return 1 copy for your confirmation with Products Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver. 0.1 Jan. 8, 2013 1 / 26
LP156WH3
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6-7
3-2 INTERFACE CONNECTIONS 8
3-3 eDP SIGNAL TIMING SPECIFICATION 9
3-4 SIGNAL TIMING SPECIFICATIONS 10
3-5 SIGNAL TIMING WAVEFORMS 10
3-6 COLOR INPUT DATA REFERNECE 11
3-7 POWER SEQUENCE 12
4 OPTICAL SFECIFICATIONS 13-15
5 MECHANICAL CHARACTERISTICS 16-18
6 RELIABLITY 19
7 INTERNATIONAL STANDARDS
7-1 SAFETY 20
7-2 EMC 20
7-3 Environment 20
8 PACKING
8-1 DESIGNATION OF LOT MARK 21
8-2 PACKING FORM 21
9 PRECAUTIONS 22-23
A APPENDIX. Enhanced Extended Display Identification Data 24-26
Ver. 0.1 Jan. 8, 2013 2 / 26
LP156WH3
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 Aug. 30. 2012 - First Draft (Preliminary Specification) -
0.1 Jan. 8. 2013 4, 6 Update Power Consumption
6 Change Max. PWM Freq (1000Hz 2000Hz)
8 Update P-Vcom Address & CNT Pin No.
12 Change Power Sequence
13 Update Color coordinates
14 Update Gray Scale
17 - 18 Change Mechanical Drawing
21 Update Packing Form
24 - 26 Update EDID 0.1
10 Update Timing Table.
24 - 26 Update EDID 0.2
1.0 Aug. 6. 2013 - Final Version 1.0
Ver. 0.1 Jan. 8, 2013 3 / 26
LP156WH3
Liquid Crystal Display
Product Specification
1. General Description
The LP156WH3 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally black mode. This TFT-LCD has 15.6 inches diagonally measured active display area with HD
resolution (1366 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-
pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144
colors. The LP156WH3 has been designed to apply the interface method that enables low power, high
speed, low EMI. The LP156WH3 is intended to support applications where thin thickness, low power are
critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-
pixels, the LP156WH3 characteristics provide an excellent flat display for office automation products such
as Notebook PC.
EEPROM Block 1 1366
for Tcon & EDID
User connector
TFT-LCD Panel
AUX
Timing Control (HD, GIP, TN)
eDP (Tcon) Block
1 Lane
768
DVCC TCLKs
30
Pin
VCC DVCC, AVDD
Power Source Driver
VGH, VGL, GMA
Block (Bottom)
GIP CLKs, DSC
VLED VOUT_LED
LED Driver
FB1~2
LED Backlight Ass'y
LED_EN
PWM Block
Control & Data Power EDID signal & Power
General Features
Active Screen Size 15.6 inches diagonal
Outline Dimension 359.5(H, Typ.) ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
