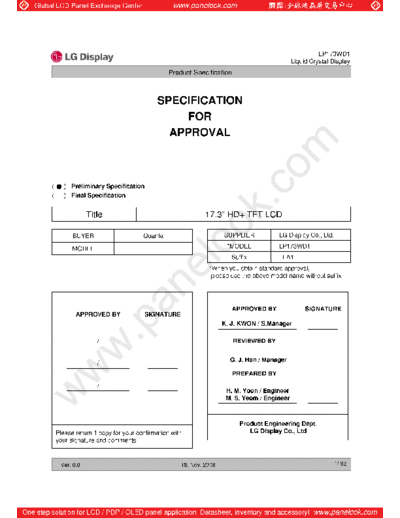

Image preview - the first page of the document
![Panel_LG_Display_LP173WD1-TLA1_0_[DS]](/pics/5eafe6036d84d.gif)
>> Download Panel_LG_Display_LP173WD1-TLA1_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LP173WD1
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 17.3" HD+ TFT LCD
BUYER Quanta SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP173WD1
Suffix TLA1
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE
APPROVED BY SIGNATURE
K. J. KWON / S.Manager
/ REVIEWED BY
G. J. Han / Manager
/
PREPARED BY
/
H. M. Yoon / Engineer
M. S. Yeom / Engineer
Product Engineering Dept.
Please return 1 copy for your confirmation with LG Display Co., Ltd
your signature and comments.
Ver. 0.0 18. Nov, 2008 1/ 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP173WD1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER
CONTENTS 1
RECORD OF REVISIONS 2
1 GENERAL DESCRIPTION 3
2 ABSOLUTE MAXIMUM RATINGS 4
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 5
3-2 INTERFACE CONNECTIONS 6
3-3 LVDS SIGNAL TIMING SPECIFICATIONS 8
3-4 SIGNAL TIMING SPECIFICATIONS 10
3-5 SIGNAL TIMING WAVEFORMS 10
3-6 COLOR INPUT DATA REFERNECE 11
3-7 POWER SEQUENCE 12
4 OPTICAL SFECIFICATIONS 12
5 MECHANICAL CHARACTERISTICS 16
6 RELIABLITY 23
7 INTERNATIONAL STANDARDS
7-1 SAFETY 24
7-2 EMC 24
8 PACKING
8-1 DESIGNATION OF LOT MARK 25
8-2 PACKING FORM 25
9 PRECAUTIONS 26
A APPENDIX A. Enhanced Extended Display Identification Data 28
Ver. 0.0 18. Nov, 2008 2/ 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP173WD1
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 Nov. 18, 2008 - First Draft 0.0
Ver. 0.0 18. Nov, 2008 3/ 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP173WD1
Liquid Crystal Display
Product Specification
1. General Description
The LP173WD1 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 17.3 inches diagonally measured active display area with
WHD+ resolution(1600 horizontal by 900 vertical pixel array). Each pixel is divided into Red, Green and
Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel
color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than
262,144 colors.
The LP173WD1 has been designed to apply the interface method that enables low power, high speed, low
EMI.
The LP173WD1 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LP173WD1 characteristics provide an excellent flat display for office automation products such as Notebook
PC.
900
LVDS &
Timing GIP(Gate In Panel)
CN
Control
1 Block TFT-LCD Panel
User connector
(1600 x 900)
POWER
(LOG_B type)
BLOCK
1 1 1600
40 Source Driver Circuit
Pin
EDID
BLOCK
LED Backlight Ass'y
Control & Data Power EDID signal & Power
General Features
Active Screen Size 17.3 inches diagonal
Outline Dimension 398.1(H, Typ.) ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
