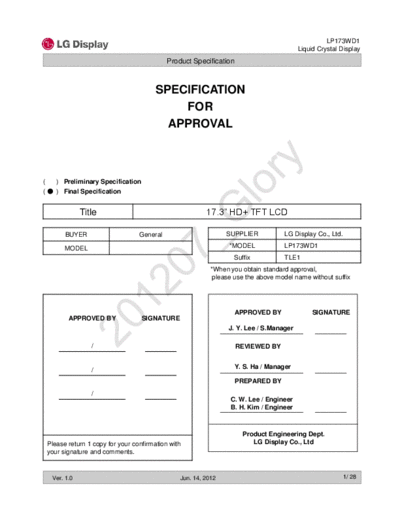

Image preview - the first page of the document
![Panel_LG_Display_LP173WD1-TLE1_0_[DS]](/pics/5eafe6c4eee96.gif)
>> Download Panel_LG_Display_LP173WD1-TLE1_0_[DS] documenatation <<
Text preview - extract from the document
LP173WD1
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 17.3" HD+ TFT LCD
BUYER General SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP173WD1
Suffix TLE1
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE
APPROVED BY SIGNATURE
J. Y. Lee / S.Manager
/ REVIEWED BY
Y. S. Ha / Manager
/
PREPARED BY
/
C. W. Lee / Engineer
B. H. Kim / Engineer
Product Engineering Dept.
Please return 1 copy for your confirmation with LG Display Co., Ltd
your signature and comments.
Ver. 1.0 Jun. 14, 2012 1/ 28
LP173WD1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6-7
3-2 INTERFACE CONNECTIONS 8
3-3 LVDS SIGNAL TIMING SPECIFICATIONS 9-10
3-4 SIGNAL TIMING SPECIFICATIONS 11
3-5 SIGNAL TIMING WAVEFORMS 11
3-6 COLOR INPUT DATA REFERNECE 12
3-7 POWER SEQUENCE 13
4 OPTICAL SFECIFICATIONS 14-16
5 MECHANICAL CHARACTERISTICS 17-20
6 RELIABLITY 21
7 INTERNATIONAL STANDARDS 22
7-1 SAFETY
7-2 EMC
8 PACKING 23
8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
9 PRECAUTIONS 24
A APPENDIX A. Enhanced Extended Display Identification Data 26-28
Ver. 1.0 Jun. 14, 2012 2/ 28
LP173WD1
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 Mar. 2, 2012 - First Draft (Preliminary Specification)
0.1 May.11, 2012 26-28 Update EDID 0.0
0.2 May.15, 2012 4 Update General Features 0.0
6 Update Electrical Specifications
8 Update Connector
14-15 Update Optical Specification
19 Update Rear View
1.0 Jun.14, 2012 3 Update EDID Ver. For Final Draft (v0.0 v1.0) 1.0
Ver. 1.0 Jun. 14, 2012 3/ 28
LP173WD1
Liquid Crystal Display
Product Specification
1. General Description
The LP173WD1 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 17.3 inches diagonally measured active display area with
WHD+ resolution(1600 horizontal by 900 vertical pixel array). Each pixel is divided into Red, Green and
Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel
color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than
262,144 colors. The LP173WD1 has been designed to apply the interface method that enables low power,
high speed, low EMI. The LP173WD1 is intended to support applications where thin thickness, low power
are critical factors and graphic displays are important. In combination with the vertical arrangement of the
sub-pixels, the LP173WD1 characteristics provide an excellent flat display for office automation products
such as Notebook PC.
EEPROM Block
for EDID
EEPROM Block 1 1600
LED Backlight Assy
for Tcon Operating
User connector
TFT-LCD Panel
LVDS
Timing Control (HD, GIP, TN)
2port (Tcon) Block
900
DVCC TCLKs
40
AVCC, AVDD
Pin
VCC Power Source Driver
VOUT_LED
VGH, VGL, GMA
(Bottom Bent)
Block GIP CLKs, DSC
VLED LED Driver
LED_EN
PWM Block FB 1~4
Control & Data Power EDID signal & Power
General Features
Active Screen Size 17.3 inches diagonal
Outline Dimension 398.1(H, Typ.) ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
