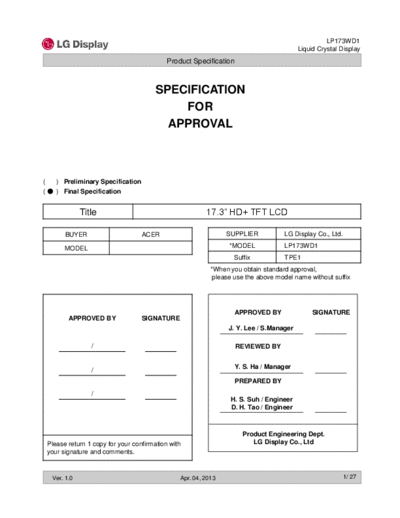

Image preview - the first page of the document
![Panel_LG_Display_LP173WD1-TPE1_0_[DS]](/pics/5eafe763c4ec0.gif)
>> Download Panel_LG_Display_LP173WD1-TPE1_0_[DS] documenatation <<
Text preview - extract from the document
LP173WD1
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 17.3" HD+ TFT LCD
BUYER ACER SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP173WD1
Suffix TPE1
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE
APPROVED BY SIGNATURE
J. Y. Lee / S.Manager
/ REVIEWED BY
Y. S. Ha / Manager
/
PREPARED BY
/
H. S. Suh / Engineer
D. H. Tao / Engineer
Product Engineering Dept.
Please return 1 copy for your confirmation with LG Display Co., Ltd
your signature and comments.
Ver. 1.0 Apr. 04, 2013 1/ 27
LP173WD1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6-7
3-2 INTERFACE CONNECTIONS 8
3-3 eDP SIGNAL TIMING SPECIFICATIONS 9
3-4 SIGNAL TIMING SPECIFICATIONS 10
3-5 SIGNAL TIMING WAVEFORMS 10
3-6 COLOR INPUT DATA REFERNECE 11
3-7 POWER SEQUENCE 12
4 OPTICAL SFECIFICATIONS 13-15
5 MECHANICAL CHARACTERISTICS 16-19
6 RELIABLITY 20
7 INTERNATIONAL STANDARDS 21
7-1 SAFETY
7-2 EMC
8 PACKING 22
8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
9 PRECAUTIONS 23-24
A APPENDIX A. Enhanced Extended Display Identification Data 25-27
Ver. 1.0 Apr. 04, 2013 2/ 27
LP173WD1
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 Sep. 13, 2012 - First Draft (Preliminary Specification) -
0.1 Nov. 21, 2012 10 Update TIMING TABLE 0.0
25-27 Update EDID
0.2 Nov. 27, 2012 18 Update Rear View 0.0
22 Update Label
0.3 Dec. 13, 2012 6 Update Electrical Specifications 0.1
13 Update Optical Specification
14 Update Gray scale specification
25-27 Update EDID
0.4 Jan. 21. 2013 31 Update Optical Specification 0.1
1.0 Apr. 04. 2013 21 Update International Standards 0.1
Ver. 1.0 Apr. 04, 2013 3/ 27
LP173WD1
Liquid Crystal Display
Product Specification
1. General Description
The LP173WD1 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 17.3 inches diagonally measured active display area with
WHD+ resolution(1600 horizontal by 900 vertical pixel array). Each pixel is divided into Red, Green and
Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel
color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than
262,144 colors. The LP173WD1 has been designed to apply the interface method that enables low power,
high speed, low EMI. The LP173WD1 is intended to support applications where thin thickness, low power
are critical factors and graphic displays are important. In combination with the vertical arrangement of the
sub-pixels, the LP173WD1 characteristics provide an excellent flat display for office automation products
such as Notebook PC.
EEPROM Block
for Tcon Operating
1 1600
LED Backlight Assy
User connector
AUX Timing Control
TFT-LCD Panel
eDP (Tcon) Block
1Lane (HD+, GIP, TN)
DVCC TCLKs
900
VCC Power
30
Block AVCC, AVDD
Pin
Source Driver
VOUT_LED
VGH, VGL, GMA
(Bottom Bent)
GIP CLKs, DSC
VLED LED Driver
LED_EN
PWM Block
FB 1~4
Control & Data Power EDID signal & Power
General Features
Active Screen Size 17.3 inches diagonal
Outline Dimension 398.1(H, Typ.) ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
