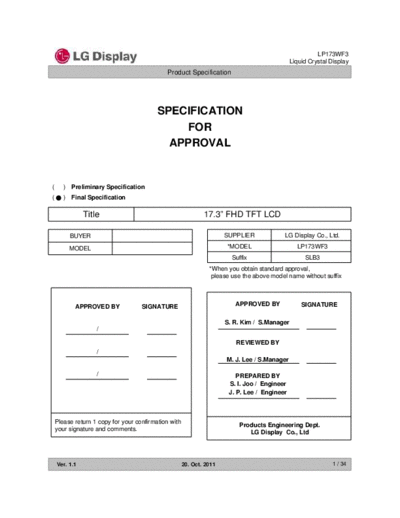

Image preview - the first page of the document
![Panel_LG_Display_LP173WF3-SLB3_0_[DS]](/pics/5eafe82a6e7ea.gif)
>> Download Panel_LG_Display_LP173WF3-SLB3_0_[DS] documenatation <<
Text preview - extract from the document
LP173WF3
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
() Final Specification
Title 17.3" FHD TFT LCD
BUYER SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP173WF3
Suffix SLB3
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE APPROVED BY SIGNATURE
S. R. Kim / S.Manager
/
REVIEWED BY
/
M. J. Lee / S.Manager
/ PREPARED BY
S. I. Joo / Engineer
J. P. Lee / Engineer
Please return 1 copy for your confirmation with
Products Engineering Dept.
your signature and comments.
LG Display Co., Ltd
Ver. 1.1 20. Oct. 2011 1 / 34
LP173WF3
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 7
3-3 LVDS SIGNAL TIMING SPECIFICATIONS 8
3-4 SIGNAL TIMING SPECIFICATIONS 11
3-5 SIGNAL TIMING WAVEFORMS 11
3-6 COLOR INPUT DATA REFERNECE 12
3-7 POWER SEQUENCE 13
4 OPTICAL SFECIFICATIONS 14
5 MECHANICAL CHARACTERISTICS 18
6 RELIABLITY 27
7 INTERNATIONAL STANDARDS
7-1 SAFETY 28
7-2 EMC 28
8 PACKING
8-1 DESIGNATION OF LOT MARK 29
8-2 PACKING FORM 29
9 PRECAUTIONS 30
A APPENDIX. Enhanced Extended Display Identification Data 32-34
Ver. 1.1 20. Oct. 2011 2 / 34
LP173WF3
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
1.0 17. Aug. 2011 - Final Specification 1.0
1.1 20. Oct. 2011 20 Update Rear View Drawing 1.0
Ver. 1.1 20. Oct. 2011 3 / 34
LP173WF3
Liquid Crystal Display
Product Specification
1. General Description
The LP173WF3 is a Color Active Matrix Liquid Crystal Display with an integral RGB LED backlight system.
The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display
operating in the normally black mode. This TFT-LCD has 17.3 inches diagonally measured active display
area with Full HD resolution(1920 horizontal by 1080 vertical pixel array). Each pixel is divided into Red,
Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the
sub-pixel color is determined with a 10-bit gray scale signal for each dot, thus, presenting a palette of more
than 1.073G(True) colors.
The LP173WF3 has been designed to apply the interface method that enables low power, high speed, low
EMI. The LP173WF3 is intended to support applications where thin thickness, low power are critical factors
and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LP173WF3(SLB3) characteristics provide an excellent flat display for office automation products such as
Notebook PC.
17.3 TFT-LCD Panel
(1920 X 1080)
General Features
Active Screen Size 17.3 inches diagonal
Outline Dimension 398.1 (H, Typ) ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
