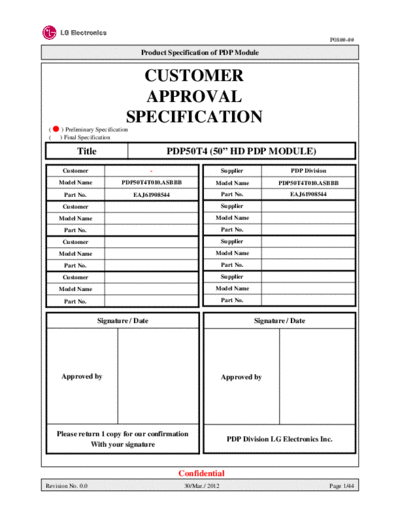

Image preview - the first page of the document

>> Download Panel_LG_Display_PDP50T4_0_[DS] documenatation <<

Text preview - extract from the document

P08##-##

Product Specification of PDP Module

CUSTOMER
APPROVAL
SPECIFICATION
( ) Preliminary Specification
( ) Final Specification

Title PDP50T4 (50" HD PDP MODULE)
Customer - Supplier PDP Division
Model Name PDP50T4T010.ASBBB Model Name PDP50T4T010.ASBBB
Part No. EAJ61908544 Part No. EAJ61908544

Customer Supplier

Model Name Model Name

Part No. Part No.

Customer Supplier

Model Name Model Name

Part No. Part No.

Customer Supplier

Model Name Model Name

Part No. Part No.

Signature / Date Signature / Date

Approved by Approved by

Please return 1 copy for our confirmation
PDP Division LG Electronics Inc.
With your signature

Confidential
Revision No. 0.0 30/Mar./ 2012 Page 1/44
P08##-##

Product Specification of PDP Module

Record of Revisions

Revision Effective
Comments
No. Date
0.0 2013.03.30 - Established

Confidential
Revision No. 0.0 30/Mar./ 2012 Page 2/44
P08##-##

Product Specification of PDP Module

CONTENTS
0. WARNINGS AND CAUTIONS 4
Warning 4
Caution 5

1. GENERAL DESCRIPTION 8
Description 8
Applications 8
Electrical Interface of Plasma Display 9
General Specifications 9
Block Diagram 10

2. ELECTRICAL SPECIFICATIONS 11
Absolute Power Specifications 11
Input Power Specifications 11
Power Supply Sequence 13
LVDS Signal and LVDS Receiver 14
Input Signal Timing Diagram 18
Input Signal Timing Specification 19
I2C Timing Diagram & Specifications 27

3. ELECTRO OPTICAL SPECIFICATIONS 28

Electro Optical characteristic Specifications (60Hz) 28

4. MECHANICAL & ENVIRONMENTAL SPECIFICATIONS 29
Mechanical Characteristic Specifications 29
Vibration and Drop Specifications 29
Recommended Environmental Conditions 29

5. IMAGE STICKING CHARACTERISTICS 30
Image Sticking 30
Secular change in brightness 30
Cause of deterioration in brightness 30
Practical value for Image sticking 30
Proposed measures taken to relieve image sticking 31

6. OUTLINE DRAWING 32
Front View 32
Rear View 33

7. LABEL 34
8. PACKING 36
9. PSU SPECIFICATION 38

Confidential
Revision No. 0.0 30/Mar./ 2012 Page 3/44
P08##-##

Product Specification of PDP Module

0. Warnings and Cautions
WARNING indicates hazards that may lead to death or injury if ignored.
CAUTION indicates hazards that may lead to injury or damage to property if ignored.

WARNING
1) This product uses a high voltage (450 V max.). Do not touch the circuitry of this product with your hands when
power is supplied to the product or immediately after turning off the power. Be sure to confirm that the voltage
is dropped to a sufficiently low level.
2) Do not supply a voltage higher than that specified to this product. This may damage the product and may cause a
fire.
3) Do not use this product in locations where the humidity is extremely high, where it may be splashed with water,
or where flammable materials surround it. Do not install or use the product in a location that does no satisfy the
specified environmental conditions. This may damage the product and may cause a fire.
4) If a foreign substance (such as water, metal, or liquid) gets inside the product, immediately turn off the power.
Continuing to use the products it may cause fire or electric shock.
5) If the product emits smoke, an abnormal smell, or makes an abnormal sound, immediately turn off the power. If
noting is displayed or if the display goes out during use, immediately turn off the power. Continuing to use the
product as it is may cause fire or electric shock.
6) Do not disconnect or connect the connector while power to the product is on. It takes some time for the voltage
to drop to a sufficiently low level after the power has been turned off. Confirm that the voltage has dropped to a
safe level before disconnecting or connecting the connector. Otherwise, this may cause fire, electric shock, or
malfunction.
7) Do not pull out or insert the power cable from/to an outlet with wet hands. It may cause electric shock.
8) Do not damage or modify the power cable. It may cause fire or electric shock.
9) If the power cable is damaged, or if the connector is loose, do not use the product; otherwise, this can lead to fire
or electric shock.
10) If the power connector or the connector of the power cable becomes dirty or dusty, wipe it with a dry cloth.
Otherwise, this can lead to fire.

Confidential
Revision No. 0.0 30/Mar./ 2012 Page 4/44
P08##-##

Product Specification of PDP Module

CAUTION
General
1) Do not place this product in a location that is subject to heavy vibration, or on an unstable surface such as an
inclined surface. The product may fall off or fall over, causing injuries.

2) When moving the product, be sure to turn off the power and disconnect all the cables. While moving the
product, watch your step. The product may be dropped or fall, leading to injuries of electric shock.

3) Do not place this product in a location that is subject to heavy vibration, or on an unstable surface such as an
inclined surface. The product may fall off or fall over, causing injuries.

4) Before disconnecting cable from the product, be sure to turn off the power. Be sure to hold the connector when
disconnecting cables. Pulling a cable with excessive force may cause the core of the cable to be exposed or
break the cable, and this can lead to fire or electric shock.

5) This product should be moved by two or more persons. If one person attempts to carry this product alone, he/she
may be injured.

6) This product contains glass. The glass may break, causing injuries, if shock, vibration, heat, or distortion is
applied to the product.

7) The temperature of the glass surface of the display may rise to 80
